Sloan MCR-224 PWT EverSwitch Push Button Shower Control System, with AC-450 Showerhead

The Sloan MCR-224 is a push-button EverSwitch-activated electronic shower control for a single, pre-mixed shower line, bundled with a AC-450 Act-O-Matic showerhead.

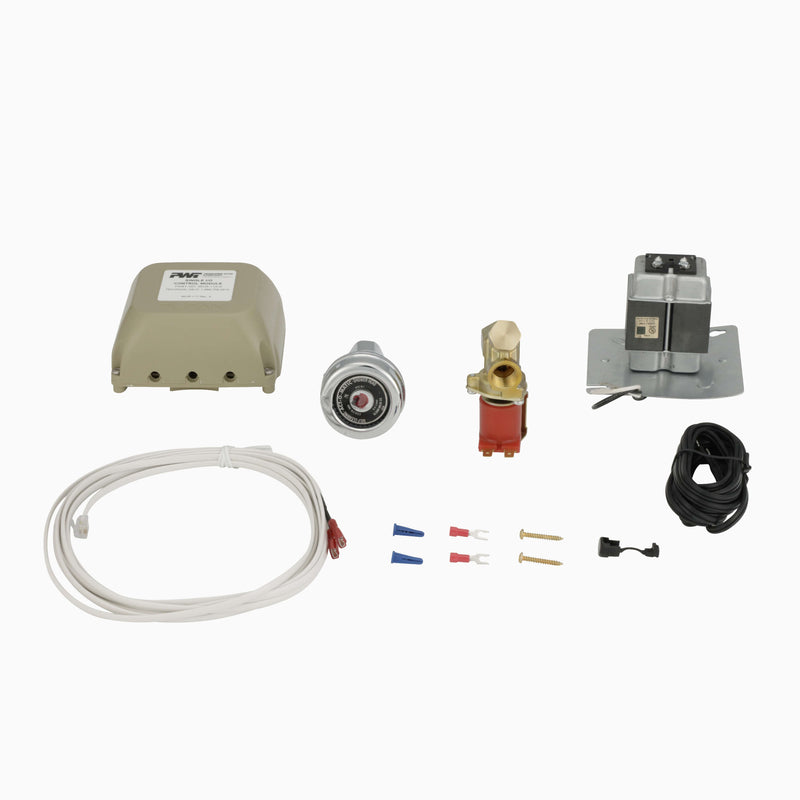

The Sloan MCR-224 Shower System is used with the Sloan PWT System to manage water usage and activations. The MCR-224 Shower System is used to control a single pre-mixed or tempered water line and operates on a 24 VAC transformer. The MCR-224 uses a push-button for activation and the run-time is adjustable. The pushbutton is specified per appliaction and sold seprately.The Shower System includes the following components: AC-450 Act-O-Matic® self-cleaning institutional-style shower head, MCR-115-A Control Module, MCR-139-A Solenoid, EL-154 120VAC / 24 VAC Transformer, and ETF-458-A 20' Power Cord Kit. The MCR-224 Push-button Shower System is perfect for both public or private shower's where the facility is looking to manage run-times and water usage to prevent misuse and promote water conservation.

Features

• PWT System Push Button Shower Controls
• Push button-activated shower control for single pre-mixed shower
• Visible LED target detection
• Operates on 24 V AC
• Adjustable run time
• 24 VAC brass body solenoid with integral “Y” strainer
• Diagnostic LED indicators in control module
• AC-450 Act-O-Matic® self-cleaning institutional-style shower head
• Waterproof module
• RJ-11 six position, four pin connections for push button connections
• Infrared, sensor-activated shower control for single, pre-mixed shower
• Water run-times and sensor range are adjustable
• Control module may be located remotely as far as 35 feet from sensor using additional PWT extension cord kits
• Waterproof, NEMA 6-compliant sensor module
• Diagnostic LED indicators in control module
• May be paired with Sloan Act-O-Matic Standard or Institutional style showerheads

Common Questions

How is this shower control activated?

Push Button-activated.

Does it come with a showerhead?

Yes, it is bundled with a Sloan AC-450 Act-O-Matic showerhead.

What power supply does it need?

24 V AC, from the included plug-in transformer.

Does this qualify for federal / Buy American bids?

Yes, this model is Buy American Act / BABA compliant.

Specifications

• Type: Shower Control System
• Operation: Push Button
• MPN: MCR-224
• Certifications: Buy American Act
• Fits Series: AC-450
• Electrical Requirement: 24 V AC
