Sloan MCR-217 PWT Infrared Sensor Shower Control System, with AC-460 Showerhead

The Sloan MCR-217 is an infrared sensor-activated electronic shower control for a single, pre-mixed shower line, bundled with a AC-460 Act-O-Matic showerhead.

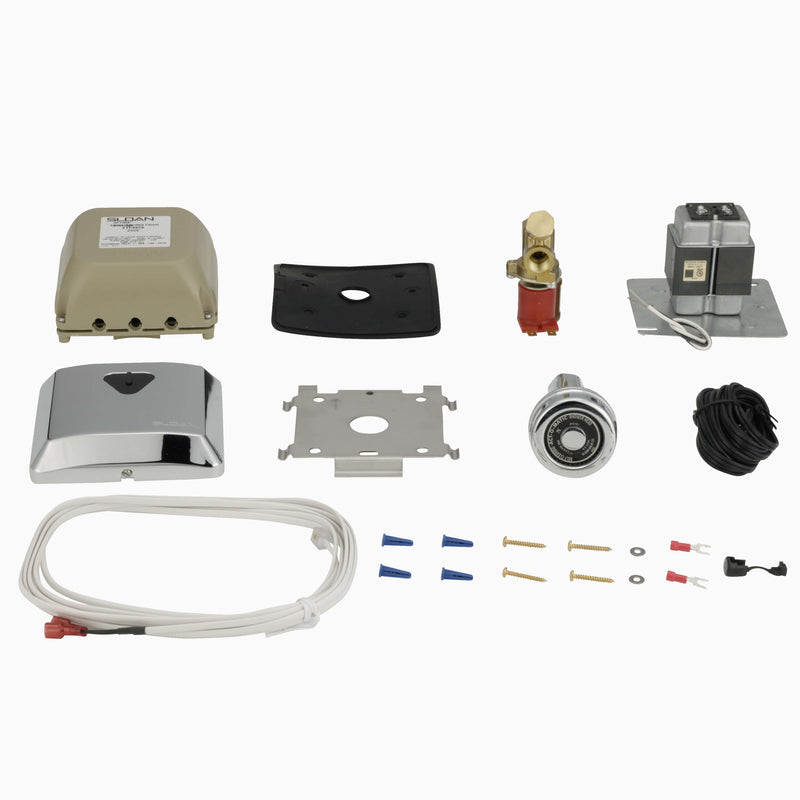

The Sloan MCR-217 Complete Infrared Sensor Shower System is used with the Sloan PWT System to manage water usage and activations. The MCR-217 Shower System is used to control a single pre-mixed or tempered water line and operates on a 24 VAC transformer. The MCR-217 uses a infrared sensor for activation and both the run-time and sensing range are adjustable. The Shower System includes the following components: AC-460 Act-O-Matic® self-cleaning institutional security-style shower head, EL-462-A Infrared Sensor Module, ETF-492-A Controller, MCR-139-A Solenoid, EL-154 120VAC / 24 VAC Transformer, and ETF-458-A 20' Power Cord Kit. The MCR-217 Infrared Sensor Shower System is perfect for both public or private shower's where the facility is looking to manage run-times and water usage to prevent misuse and promote water conservation.

Features

• PWT System Infrared Shower Sensor Controller
• Infrared sensor-activated, electronic shower control for a single, pre-mixed shower
• Water-proof (NEMA 6) sensor module
• Visible LED target detection
• Infrared sensor module, controller, solenoid, 120 VAC/24 VAC transformer, 20’ power cord kit and mounting hardware for sensor and controller
• Operates on 24 V AC
• Adjustable sensing range
• Adjustable run time
• 24 VAC brass body solenoid with integral “Y” strainer
• Diagnostic LED indicators in control module
• Control module may be located remotely as far as 35’ from sensor using additional MICRO Plumb® extension cord kits
• RJ-11 modular connections from sensor and solenoid to controller
• AC-460 Act-O-Matic® self-cleaning institutional security-style shower head
• Infrared, sensor-activated shower control for single, pre-mixed shower
• Water run-times and sensor range are adjustable
• Control module may be located remotely as far as 35 feet from sensor using additional PWT extension cord kits
• Waterproof, NEMA 6-compliant sensor module
• Diagnostic LED indicators in control module
• May be paired with Sloan Act-O-Matic Standard or Institutional style showerheads

Common Questions

How is this shower control activated?

Infrared sensor-activated (touchless).

Does it come with a showerhead?

Yes, it is bundled with a Sloan AC-460 Act-O-Matic showerhead.

What power supply does it need?

24 V AC, from the included plug-in transformer.

Does this qualify for federal / Buy American bids?

Yes, this model is Buy American Act / BABA compliant.

Specifications

• Type: Shower Control System
• Operation: Sensor
• MPN: MCR-217
• Certifications: Buy American Act
• Fits Series: AC-460
• Power Source: AC (Plug-In)
• Electrical Requirement: 24 V AC
