The Sloan MCR-176 is an infrared sensor-activated electronic shower control for a single, pre-mixed shower line.

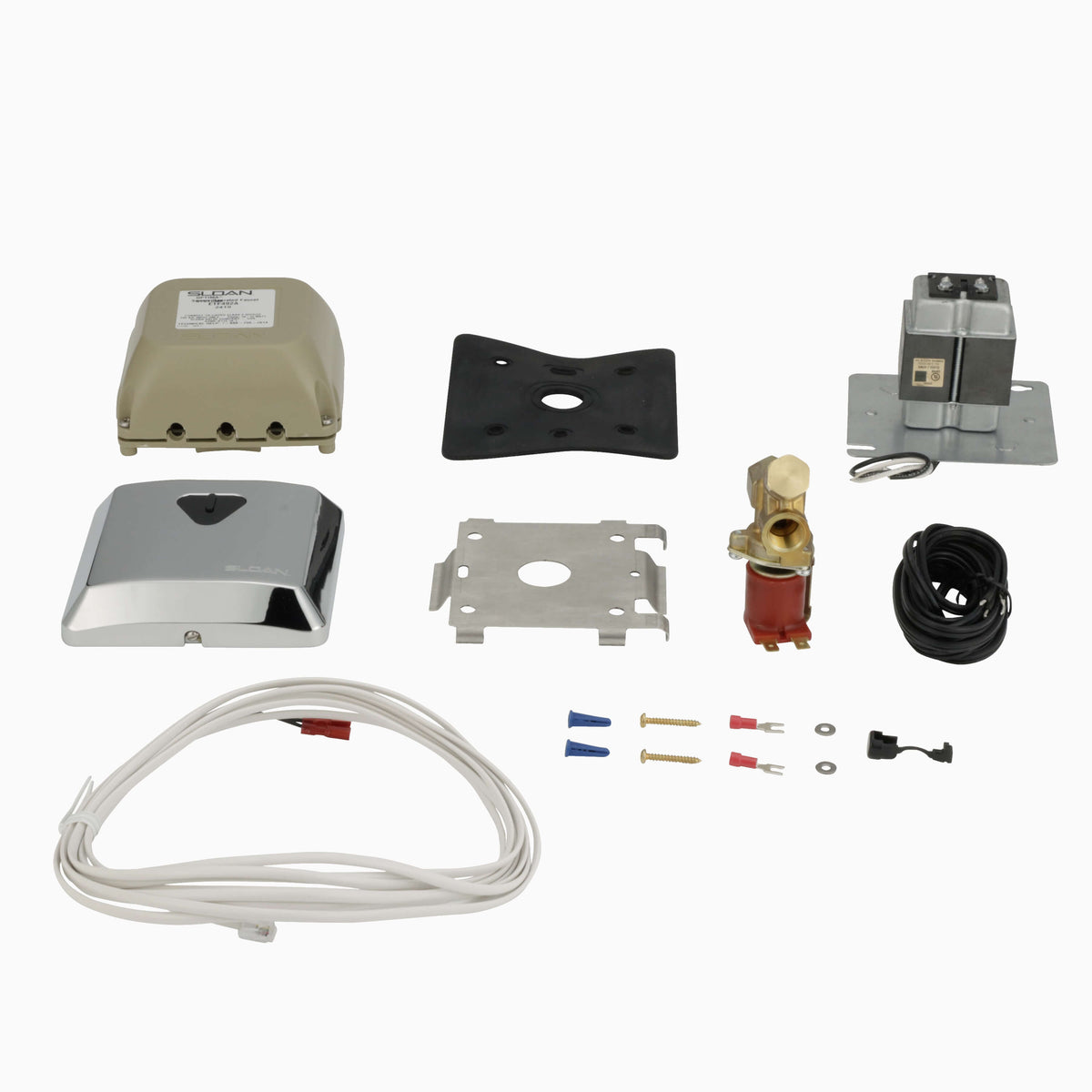

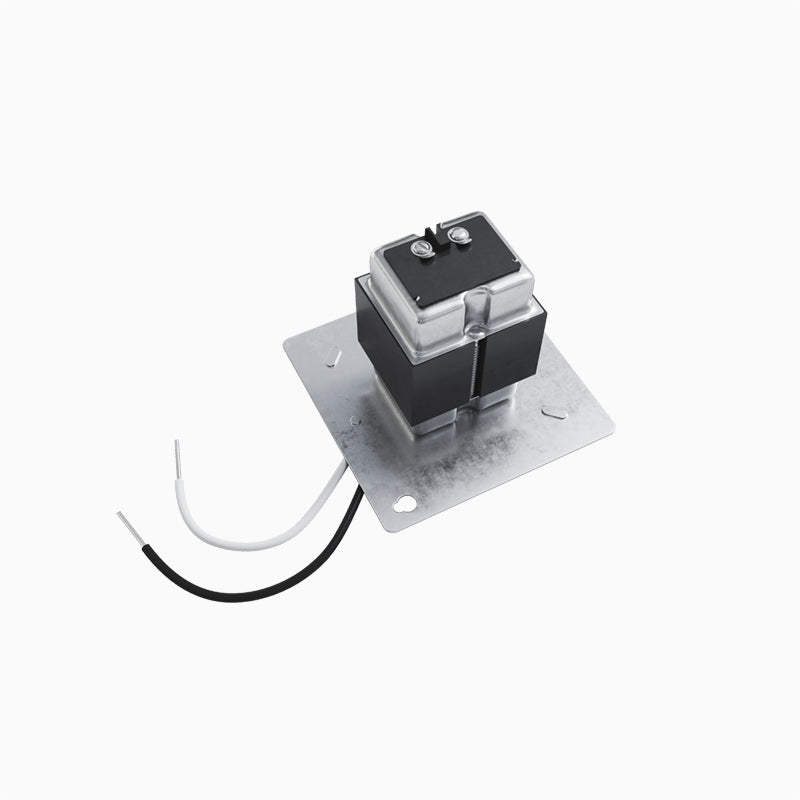

The Sloan MCR-176 Infrared Sensor Shower System is used with the Sloan PWT System to manage water usage and activations. The MCR-176 Shower System is used to control a single pre-mixed or tempered water line and operates on a 24 VAC transformer. The MCR-176 uses an infrared sensor for activation and both the run-time and sensing range are adjustable. The Shower System includes the following components: EL-462-A Infrared Sensor Module, ETF-492-A Controller, MCR-139-A Solenoid, EL-154 120VAC / 24 VAC Transformer, and ETF-458-A 20' Power Cord Kit. The MCR-176 Infrared Sensor Shower System is perfect for both public or private shower's where the facility is looking to manage run-times and water usage to prevent misuse and promote water conservation.
Features
- Infrared Sensor-activated, Electronic Shower Control
- Visible LED target detection
- Infrared sensor module, controller, solenoid, 120 VAC/24 VAC transformer, 20’ power cord kit and mounting hardware for sensor and controller
- Operates on 24 V AC
- Adjustable sensing range
- Adjustable run time

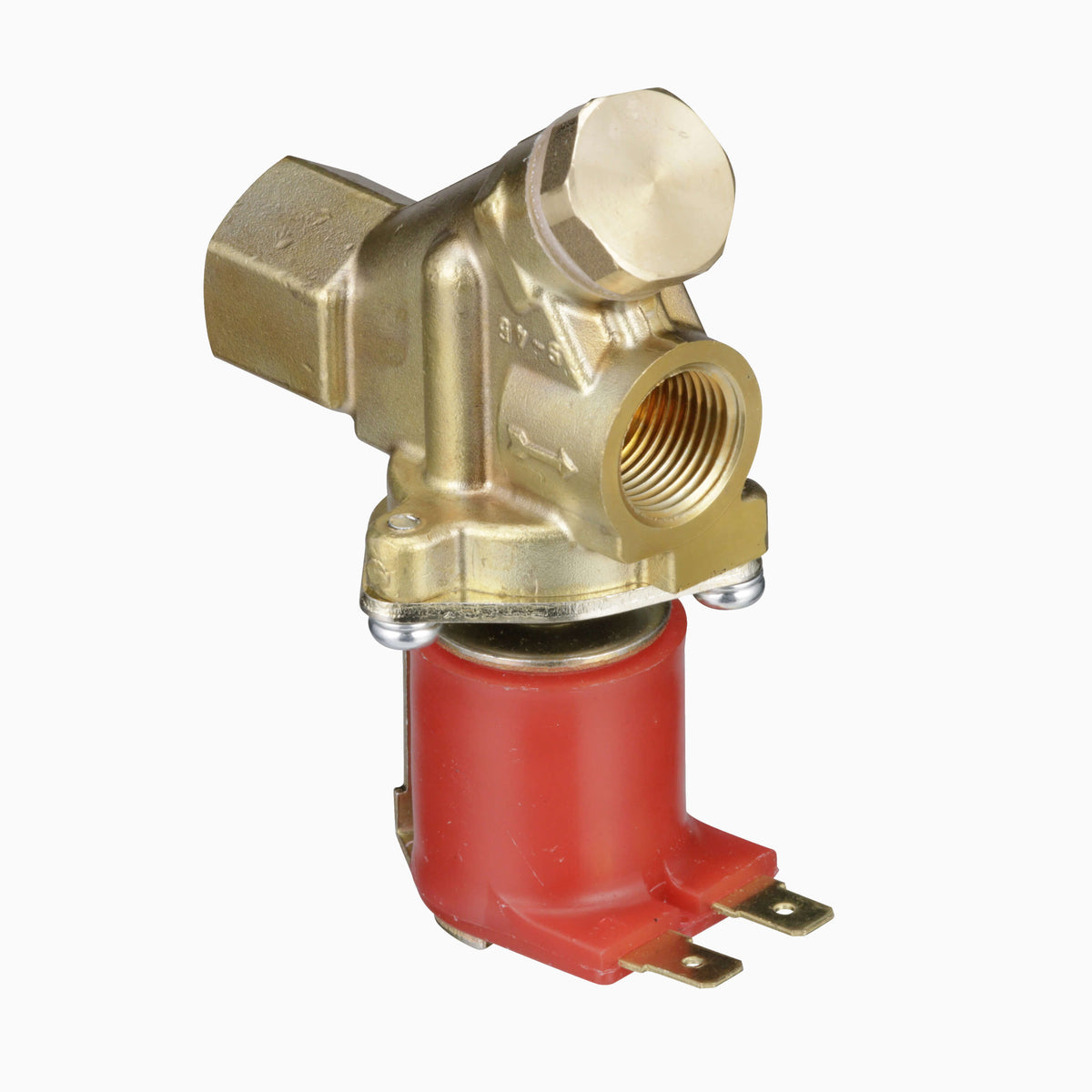

- 24 VAC brass body solenoid with integral “Y” strainer
- Control module may be located remotely as far as 35’ from sensor using additional MICRO Plumb® extension cord kits
- RJ-11 modular connections from sensor and solenoid to controller

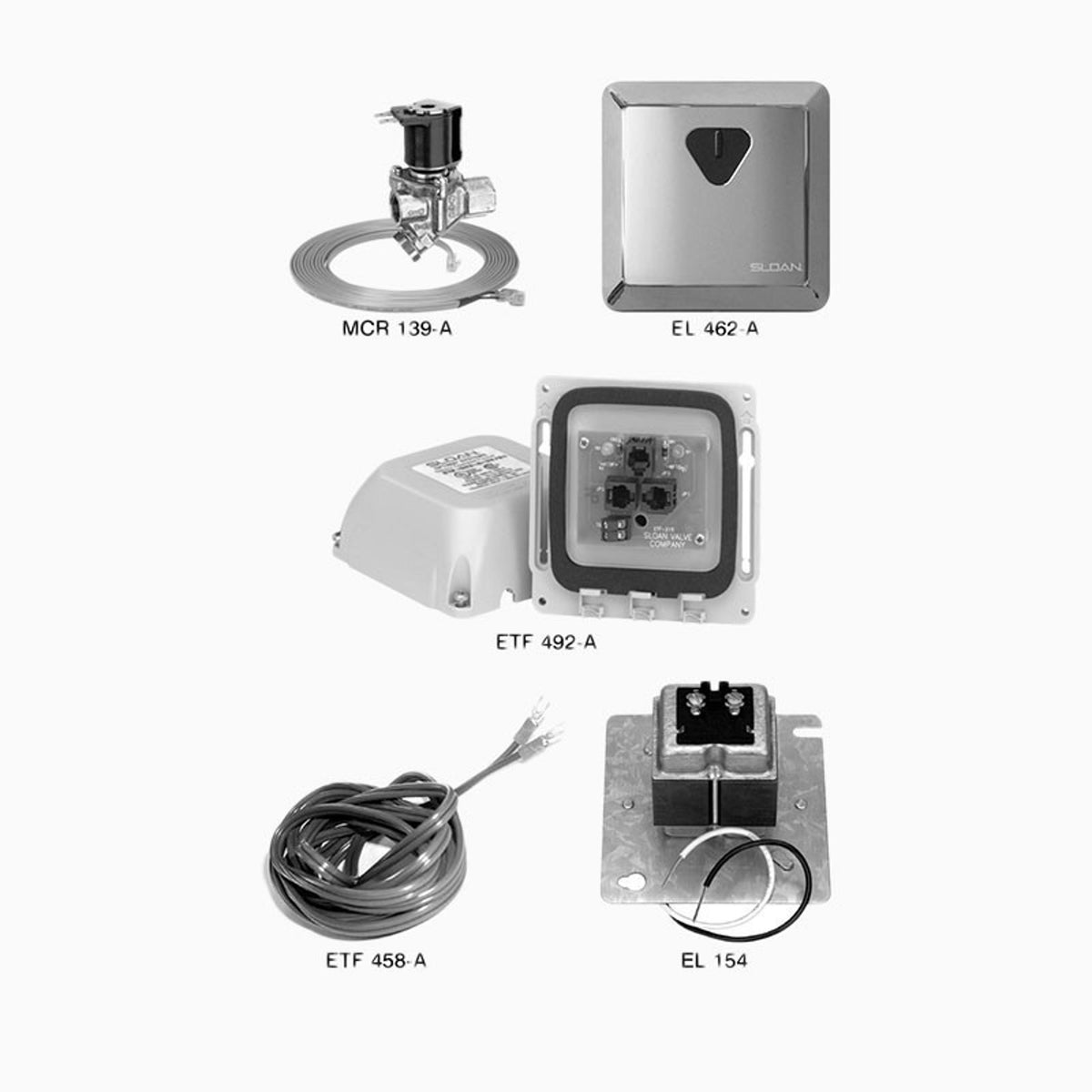

- System includes five components: ETF-492-A EL-154, MCR-139-A, ETF-458-A and EL-462-A
- Infrared, sensor-activated shower control for single, pre-mixed shower
- Water run-times and sensor range are adjustable
- Control module may be located remotely as far as 35 feet from sensor using additional PWT extension cord kits

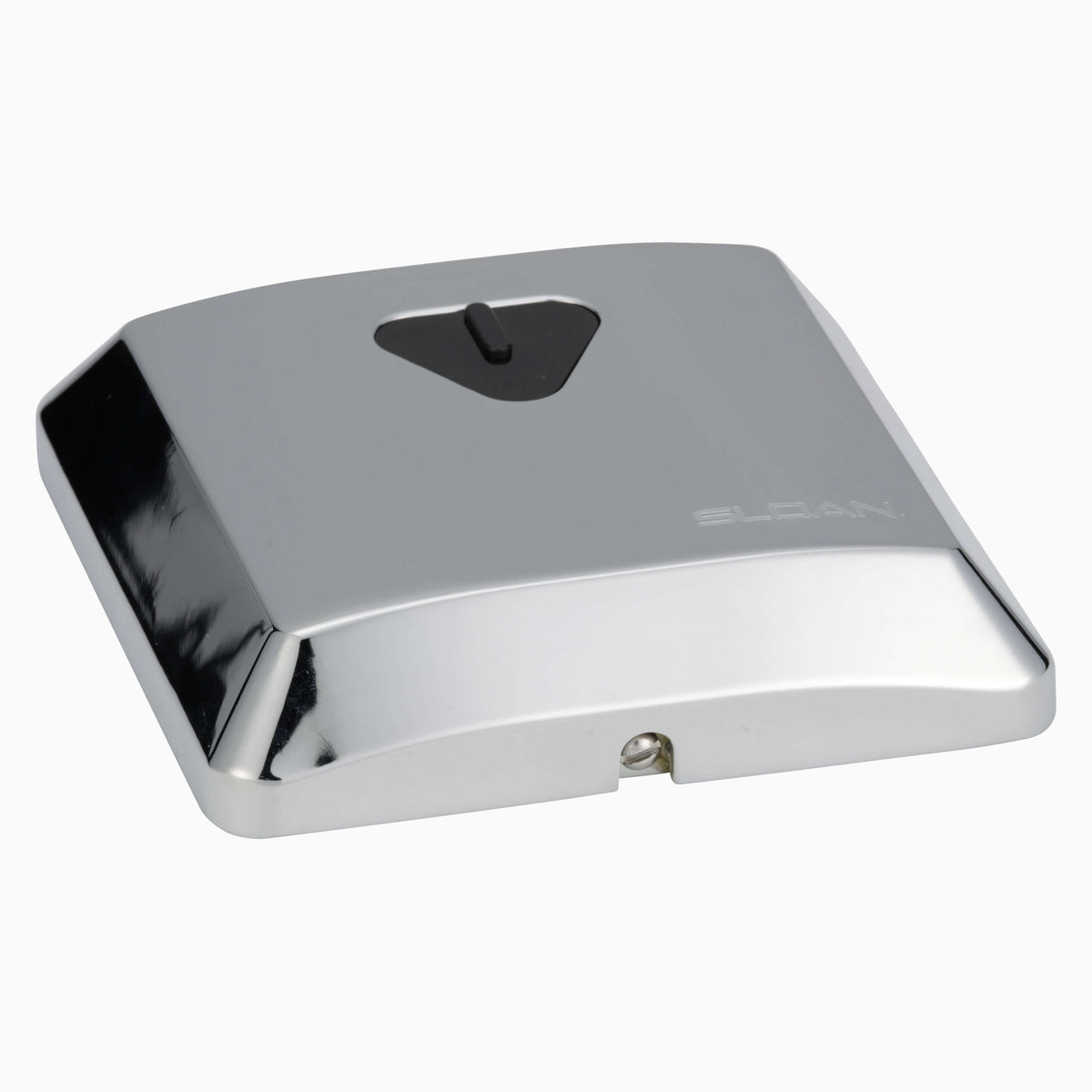

- Waterproof, NEMA 6-compliant sensor module

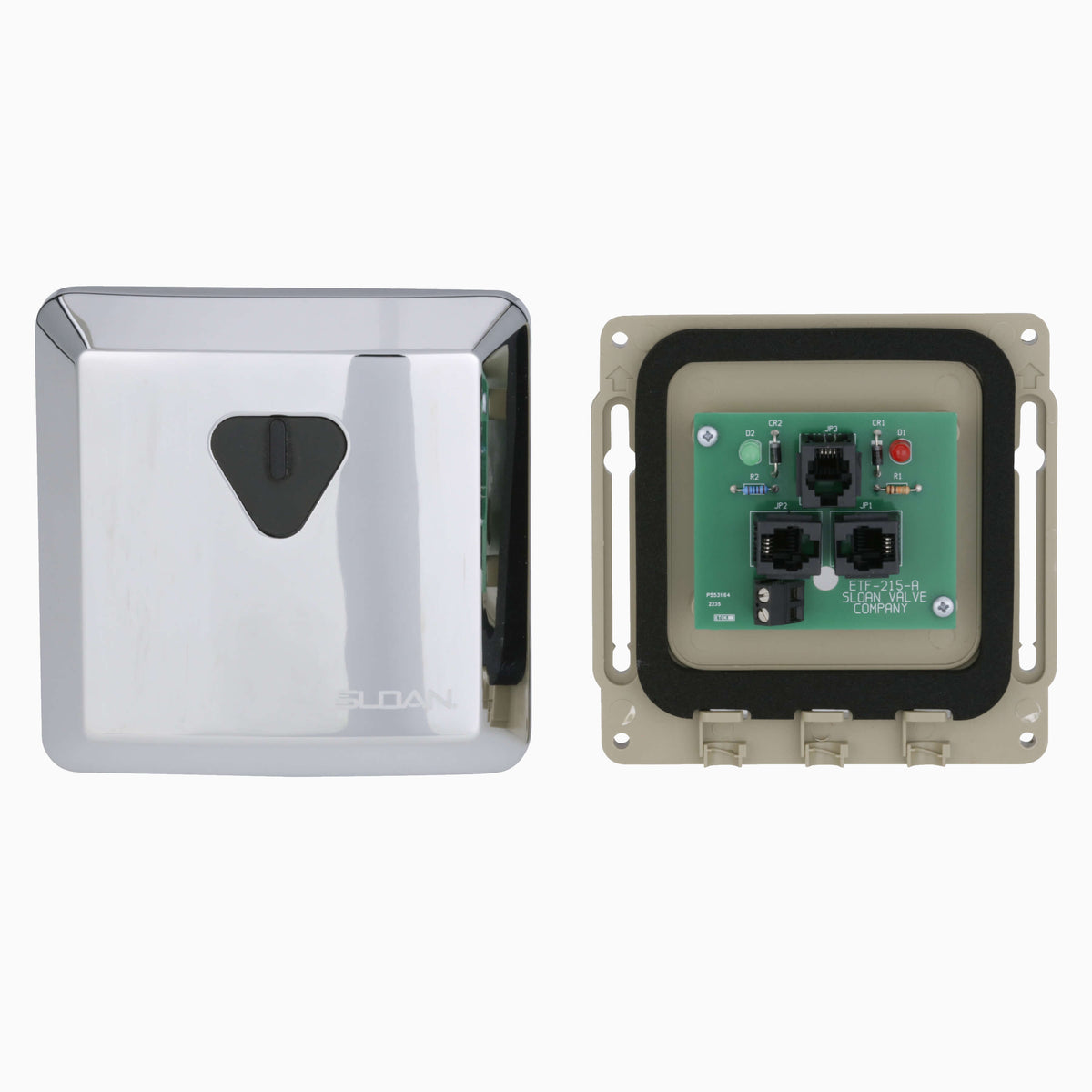

- Diagnostic LED indicators in control module
- May be paired with Sloan Act-O-Matic Standard or Institutional style showerheads
- Accessories: ETF-1003-72 6’ Single Wire Extension Cord Kit (order separately)
- ETF-1003-108 9’ Single Wire Extension Cord Kit (order separately)
- ETF-1003-240 20’ Single Wire Extension Cord Kit (order separately)
- ETF-1003-600 50’ Single Wire Extension Cord Kit (order separately)
Common Questions
- How is this shower control activated?
- Infrared sensor-activated (touchless).
- What power supply does it need?
- 24 V AC, from the included plug-in transformer.
- Does this qualify for federal / Buy American bids?
- Yes, this model is Buy American Act / BABA compliant.
Specifications
- Type: Shower Control System
- Operation: Sensor
- MPN: MCR-176
- Certifications: Buy American Act, NOM
- Power Source: AC (Plug-In)
- Electrical Requirement: 24 V AC
Product Information
| SKU | UPC | Spec Sheet |
|---|---|---|
| 3375013 | 671254209817 | Download |
Details
| Series | MCR-176 | Device Type | Shower Control System |
| Operation | Sensor | Electrical requirement | 24 V AC |
| Power source | AC (Plug-In) | — | — |
Certifications & Standards
| Buy American Act | NOM |
