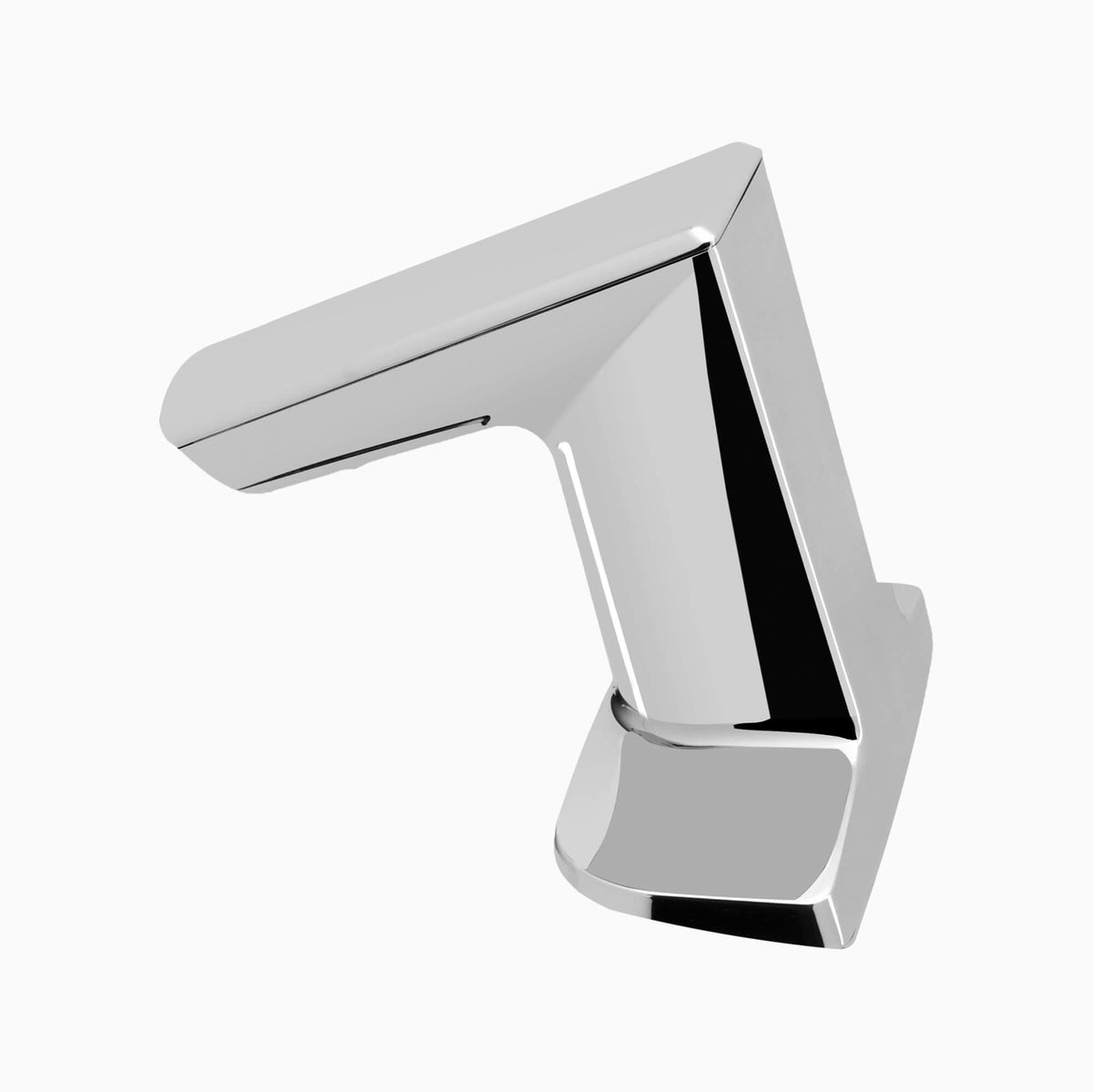

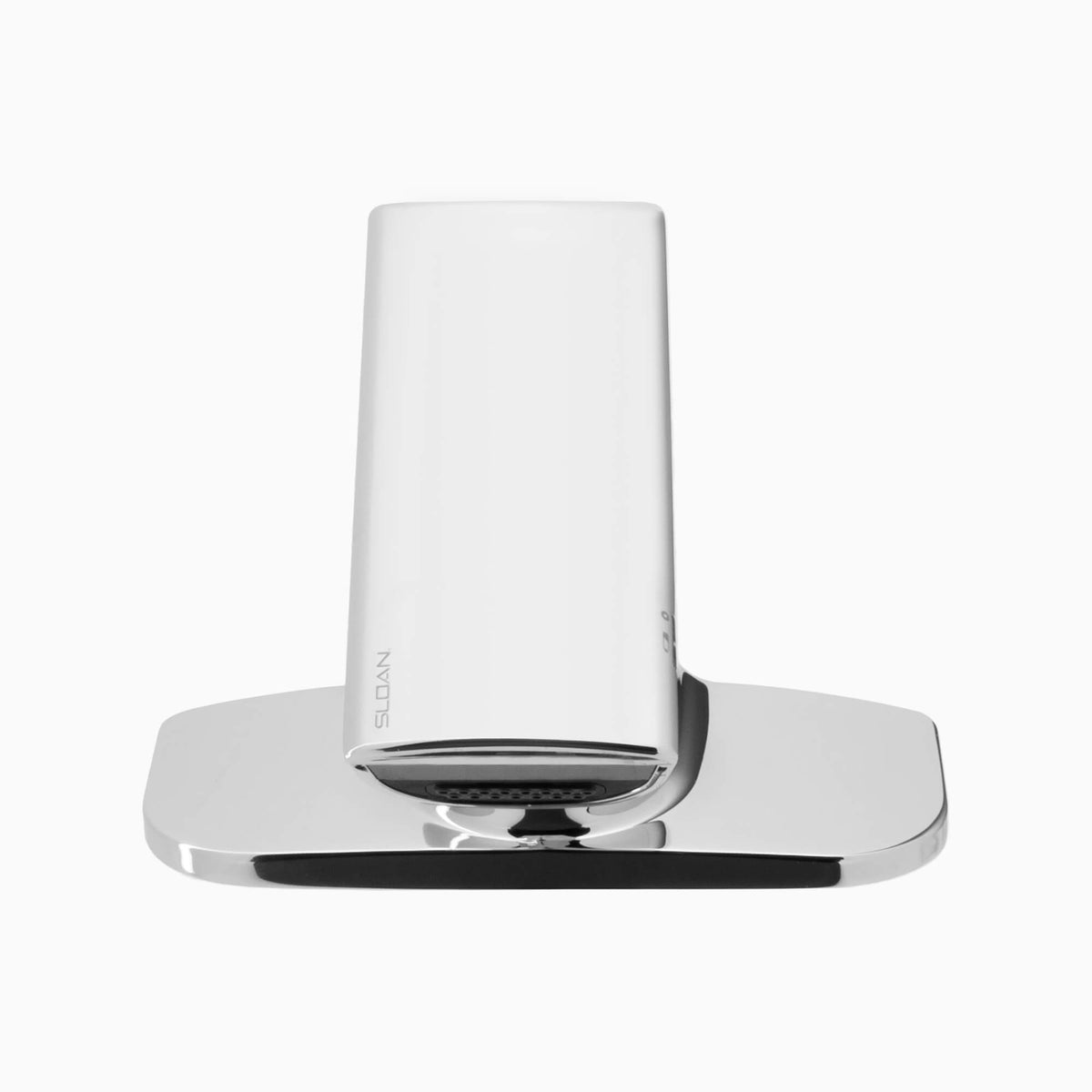

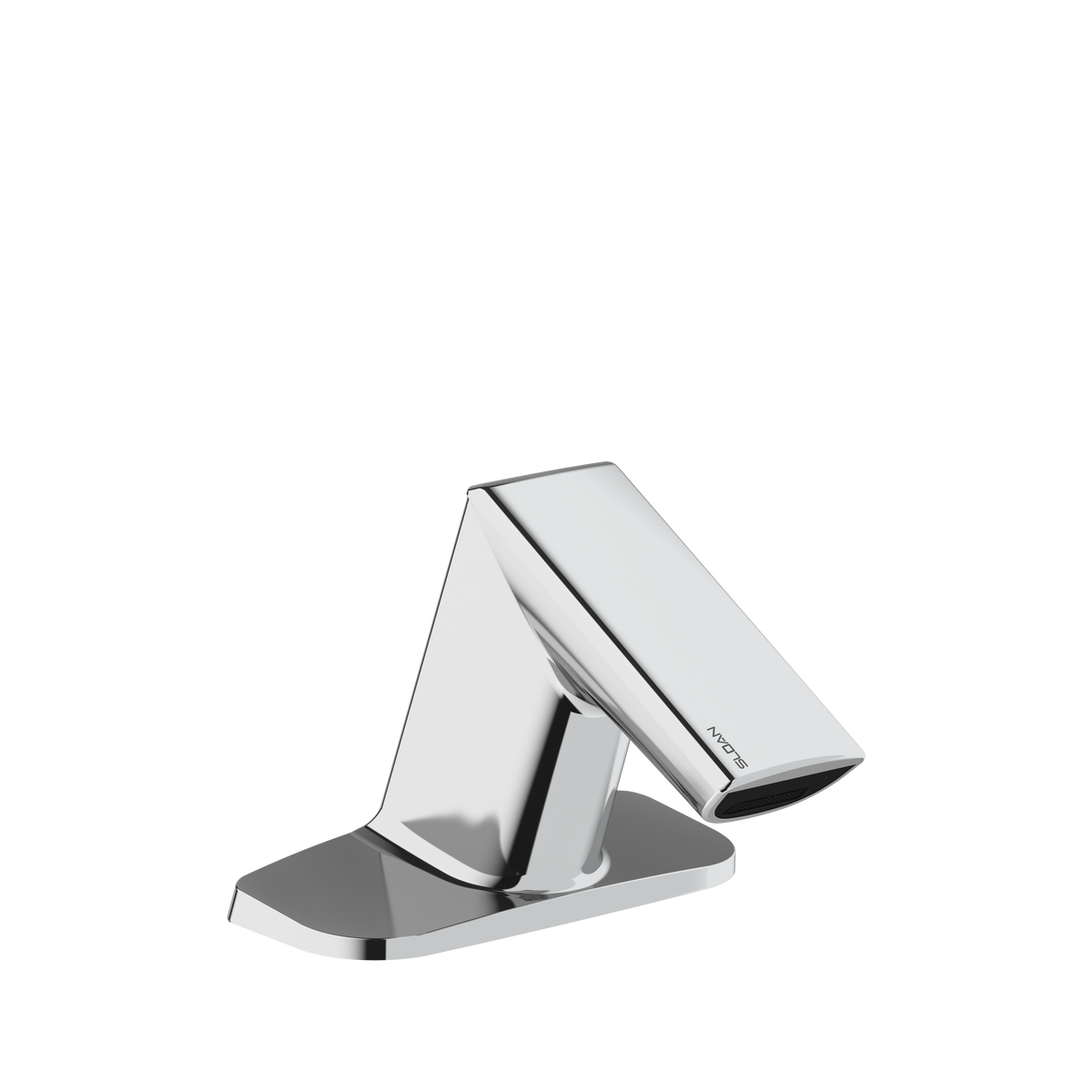

Sloan BASYS EFX-650 0.5 GPM Battery-Powered Sensor Faucet, Polished Chrome, Code EFX650.210.0000, Below-Deck Thermostatic Mixer, Capacitive Sensor

The Sloan EFX-650 is a Deck-mounted BASYS sensor faucet powered by battery. It delivers 0.5 GPM through a multi-laminar (non-aerating) outlet. It includes a below deck thermostatic mixing valve. Available in Polished Chrome. This model is certified lead-free for potable-water installations.

The BASYS faucet is centered on a robust system of shared features and components. The EFX-650 is a battery powered faucet with a low profile and integrated base. This faucet is ideal for the most demanding high-use environments. The integrated base offers added durability via two attachment points. The EFX-650 faucet comes with a number of features, including integral water supply shut off, vandal resistant spray inserts and double infrared sensors with automatic setting feature. Additionally, the EFX-650 comes with the ability to make adjustable time-outs, includes all necessary mounting hardware and is a single hole installation. The EFX-650 also has a matching soap dispenser available for purchase separately, the ESD-500.

Options on this configuration: Capacitance Sensor (CAP); BASYS configuration code EFX650.210.0000.

Features

• Battery Power Supply, Below Deck Thermostatic Mixing Valve, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Capacitance Sensor
• Chrome plated finish

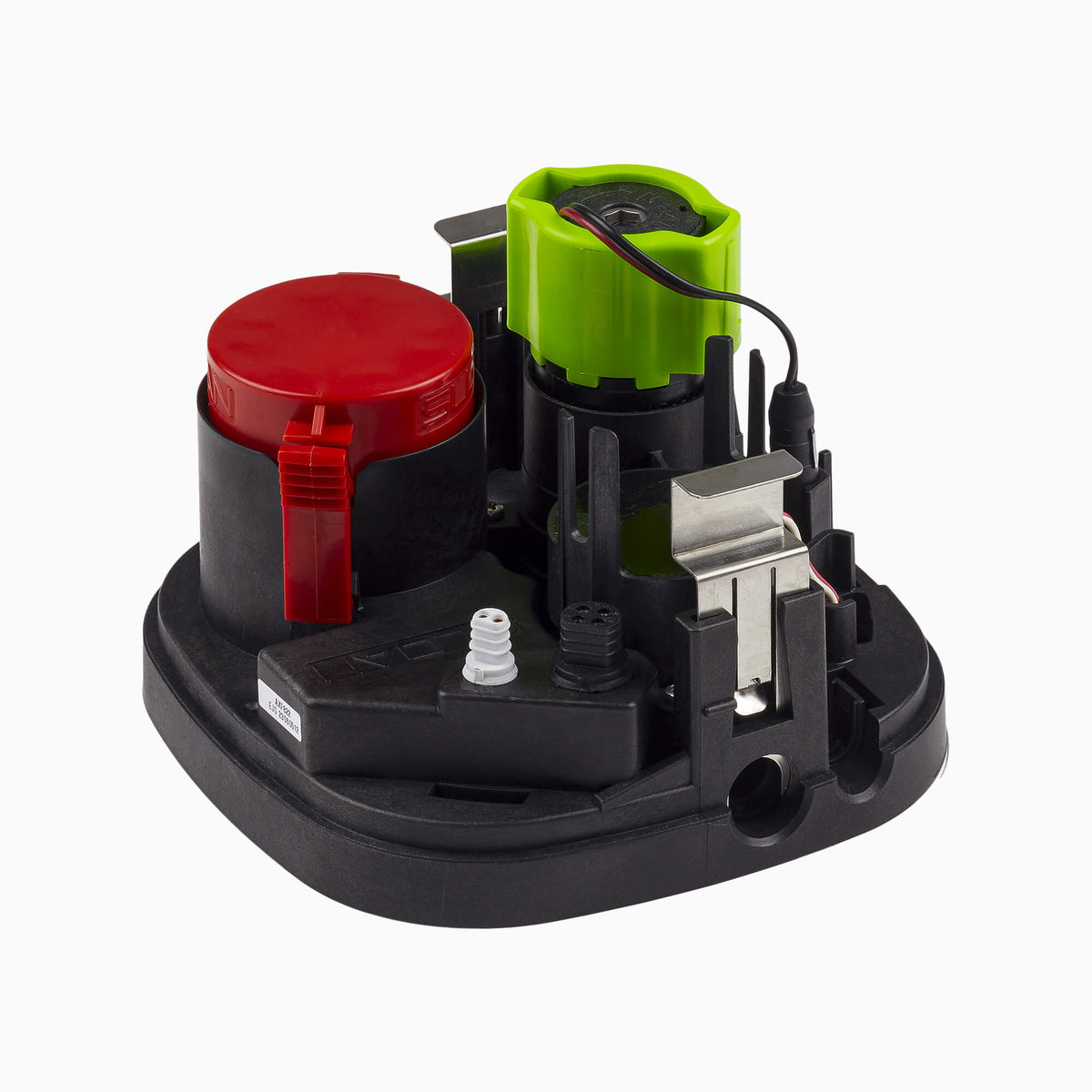

• Solenoid housed in removable carrier that includes supply strainer
• Integral water supply shut off
• Supply strainer serviceable from above deck
• Vandal resistant spray insert, key housed inside faucet body
• All electronics sealed to IP-67
• Gold plated electrical contacts
• Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode
• Flexible, high pressure supply hoses, 3/8” compression connections
• Bi-stable magnetic solenoid
• Four (4) “AA” alkaline batteries
• Double infrared sensors with automatic setting feature
• Integral 4-inch base
• Includes all mounting hardware
• Line Purge mode, eliminates stagnant water
• 3 year limited warranty

Common Questions

How is this faucet powered, and what ships in the box?

This faucet runs on battery power. Sloan states a battery life of 3 years 8,000 cycles/month. No transformer or wiring is required.

Is this single-hole or centerset, and does it need a trim plate?

This model mounts on 4" centers.

Which mixing valve does this use, and is it ASSE 1070 listed?

It includes a below deck thermostatic mixing valve. It is ASSE 1070 listed, so the delivered water temperature is limited even if the hot supply runs too hot.

What is the flow rate, and is it WaterSense certified?

It delivers 0.5 GPM.

What sensor technology does it use, and can it be commissioned remotely?

This faucet uses a capacitance sensor.

Specifications

• Type: Sensor Faucet
• Warranty: 3-Year Limited
• MPN: EFX-650-BAT-BDT-CP-0.5GPM-MLM-CAP-BAA-FCT
• Certifications: ADA, ASSE-1070, Buy American Act, CALGreen, CEC, IAPMO, NYC 604.4, TAS, NSF-372
• Lead-Free: Yes
• Power Source: DC (Battery)
• Power Supply Detail: Battery (BAT)
• Battery Life: 3 years 8,000 cycles/month
• Run Time (s): 10
• Sensor Type: Capacitance
• Centers: 4"
• Mixing Valve: Below Deck Thermostatic Mixing Valve
• Outlet Type: Multi-Laminar (Non-Aerating)
• Body Height: Low Integrated Base
• Mount Type: Deck-Mount
• Finish: Polished Chrome
• Flow Rate (GPM): 0.5
• Vandal Resistant: Yes
