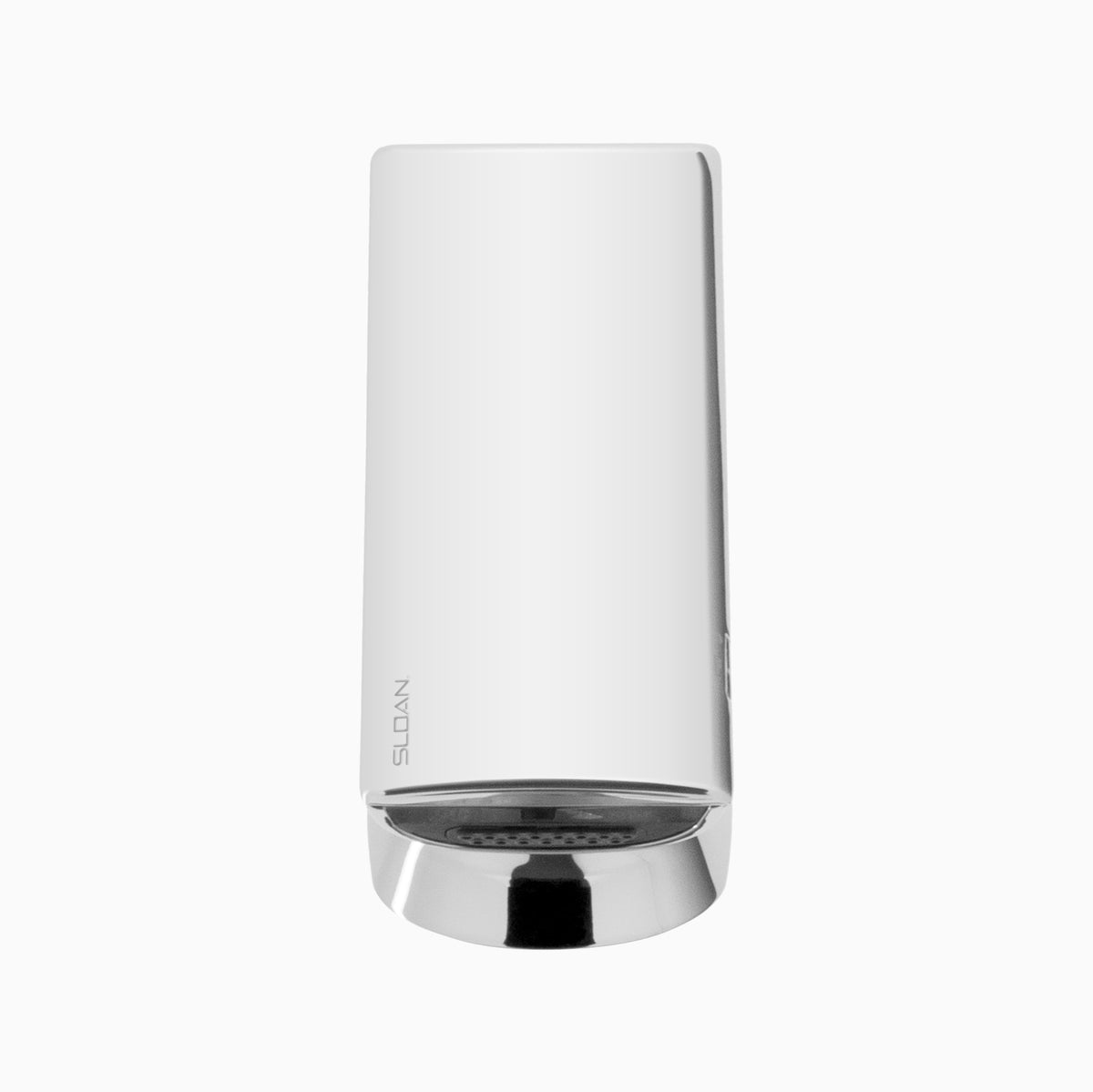

Sloan BASYS EFX-380 1.5 GPM Turbine-Powered Sensor Faucet with Back-Check Tee, Polished Chrome

The Sloan EFX-380 is a Deck-mounted BASYS sensor faucet powered by a self-contained turbine. It delivers 1.5 GPM through an aerator outlet. It includes a back-check tee. Available in Polished Chrome. This model is certified lead-free for potable-water installations.

The BASYS faucet is centered on a robust system of shared features and components. The EFX-380 is a solar powered low height profile that minimizes the potential for vandalism, making this body type ideal for high-use, low-security environments. The EFX-380 can be supplied with an IR sensor or a capacitance sensor. The EFX-380 faucet comes with a number of features, including integral water supply shut off, vandal resistant spray inserts and double infrared sensors with automatic setting feature. Additionally, the EFX-380 comes with the ability to make adjustable time-outs, includes all necessary mounting hardware and is a single hole installation. The EFX-380 also has a matching soap dispenser available for purchase separately, the ESD-500.

Options on this configuration: Capacitance Sensor (CAP); BASYS configuration code EFX380.012.0000.

Features

• Trim Plate: None, Turbine Power Supply, Back-Check Tee, Polished Chrome Finish, 1.5 gpm, Aerated (installed) or Laminar (in box) Spray, Capacitance Sensor
• Chrome plated finish
• One tool service

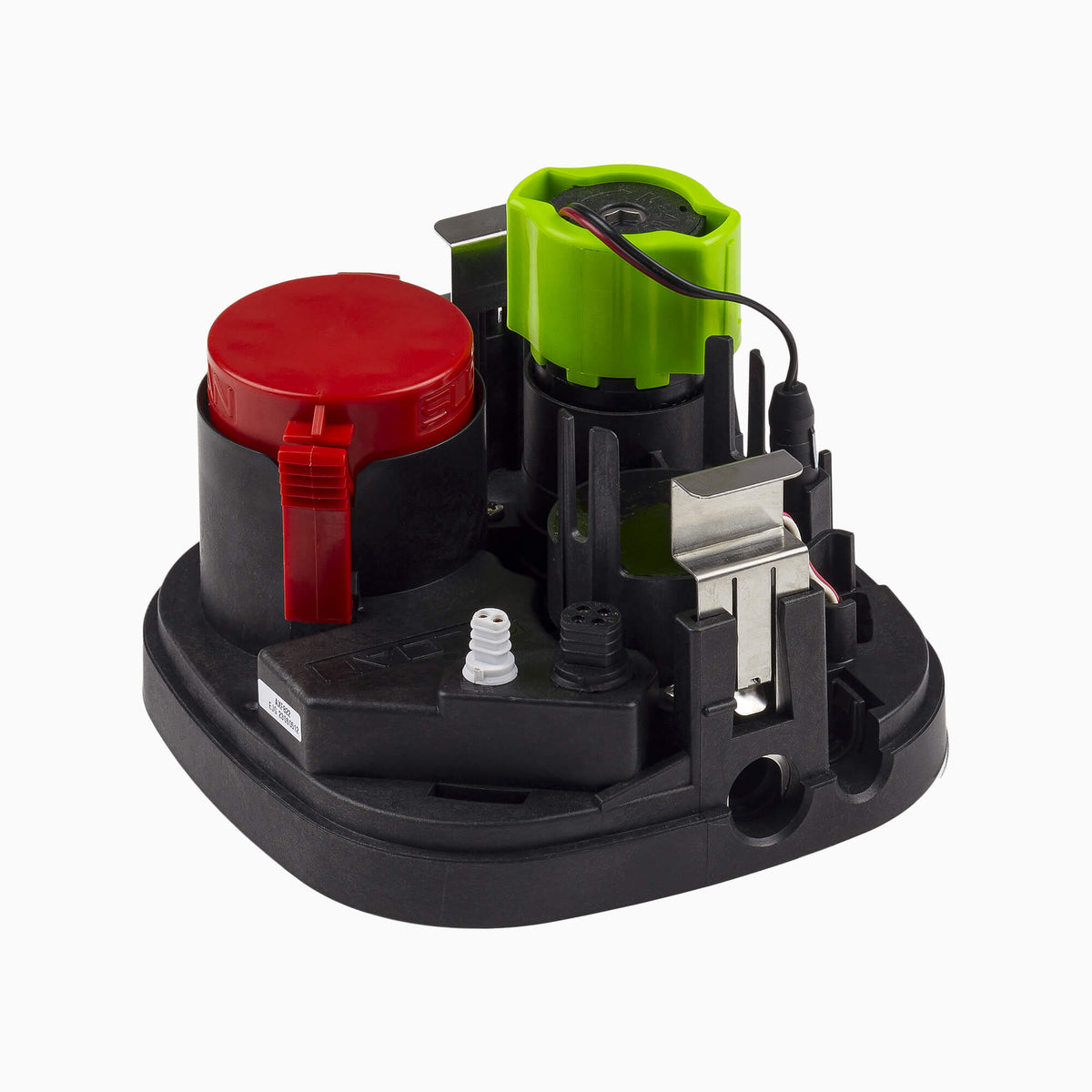

• Solenoid housed in removable carrier that includes supply strainer
• Integral water supply shut off
• Vandal resistant spray insert, key housed inside faucet body
• All electronics sealed to IP-67
• Gold plated electrical contacts
• Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode
• Flexible, high pressure supply hose, 3/8” compression connections
• Bi-stable magnetic solenoid
• Four (4) “AA” alkaline batteries
• Double infrared sensors with automatic setting feature
• Single hole installation (pedestal)
• Includes all mounting hardware
• 3 year limited warranty

Common Questions

How is this faucet powered, and what ships in the box?

This faucet is powered by a self-contained water-flow turbine -- no battery to replace and no wiring. Sloan rates it for 8 years 8,000 cycles/month.

Is this single-hole or centerset, and does it need a trim plate?

This model installs in a single deck hole.

Which mixing valve does this use, and is it ASSE 1070 listed?

It includes a back-check tee.

What is the flow rate, and is it WaterSense certified?

It delivers 1.5 GPM.

What sensor technology does it use, and can it be commissioned remotely?

This faucet uses a capacitance sensor.

Specifications

• Type: Sensor Faucet
• Warranty: 3-Year Limited
• MPN: EFX-380-TUR-TEE-CP-1.5GPM-CAP-BAA-FCT
• Certifications: ADA, Buy American Act, CEC, IAPMO, TAS, NSF-372
• Lead-Free: Yes
• Power Source: LTPS (Turbine)
• Power Supply Detail: Turbine (TUR)
• Battery Life: 8 years 8,000 cycles/month
• Run Time (s): 10
• Sensor Type: Capacitance
• Centers: Single-Hole
• Mixing Valve: Back-Check Tee
• Outlet Type: Aerator
• Body Height: Low
• Mount Type: Deck-Mount
• Finish: Polished Chrome
• Flow Rate (GPM): 1.5
• Vandal Resistant: Yes
