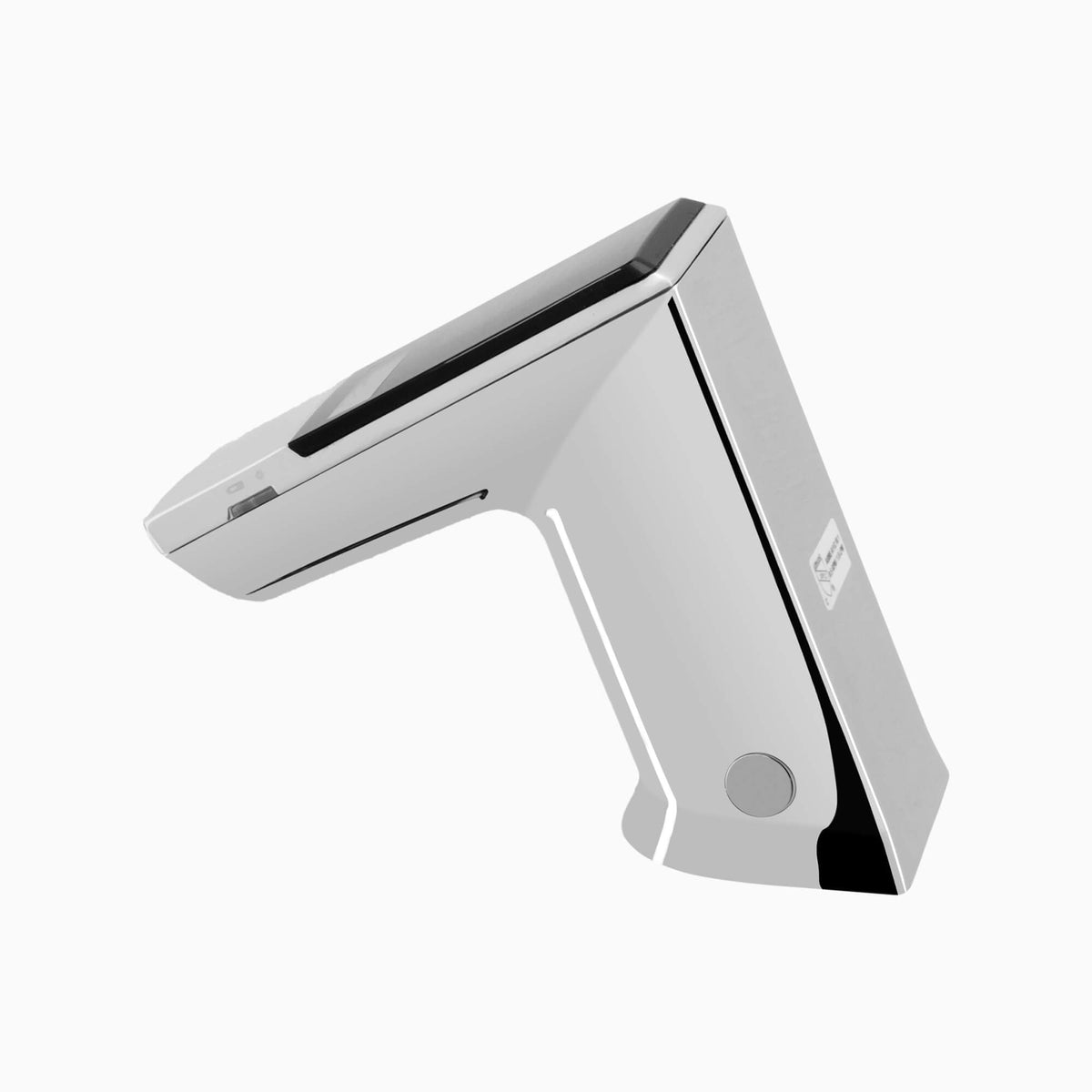

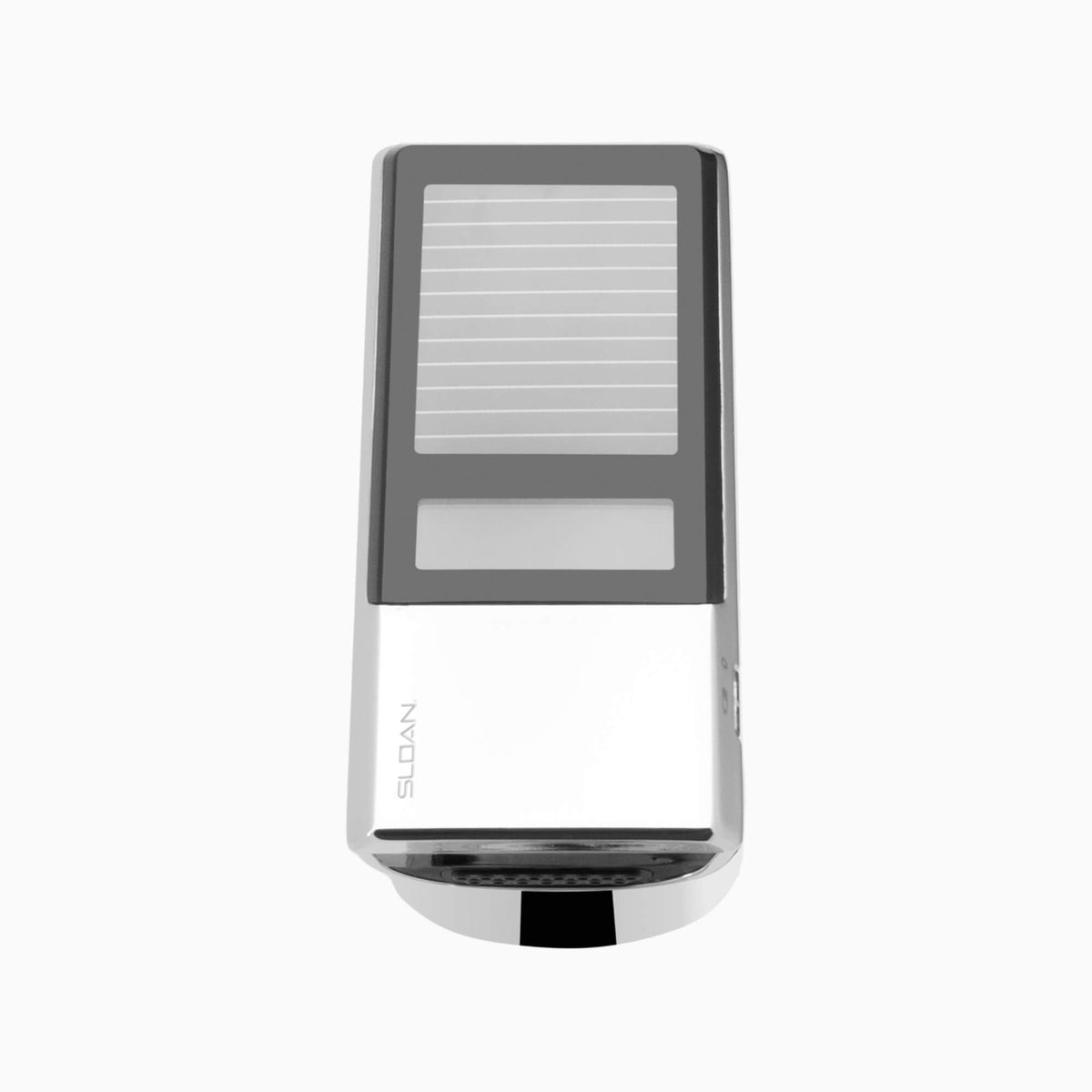

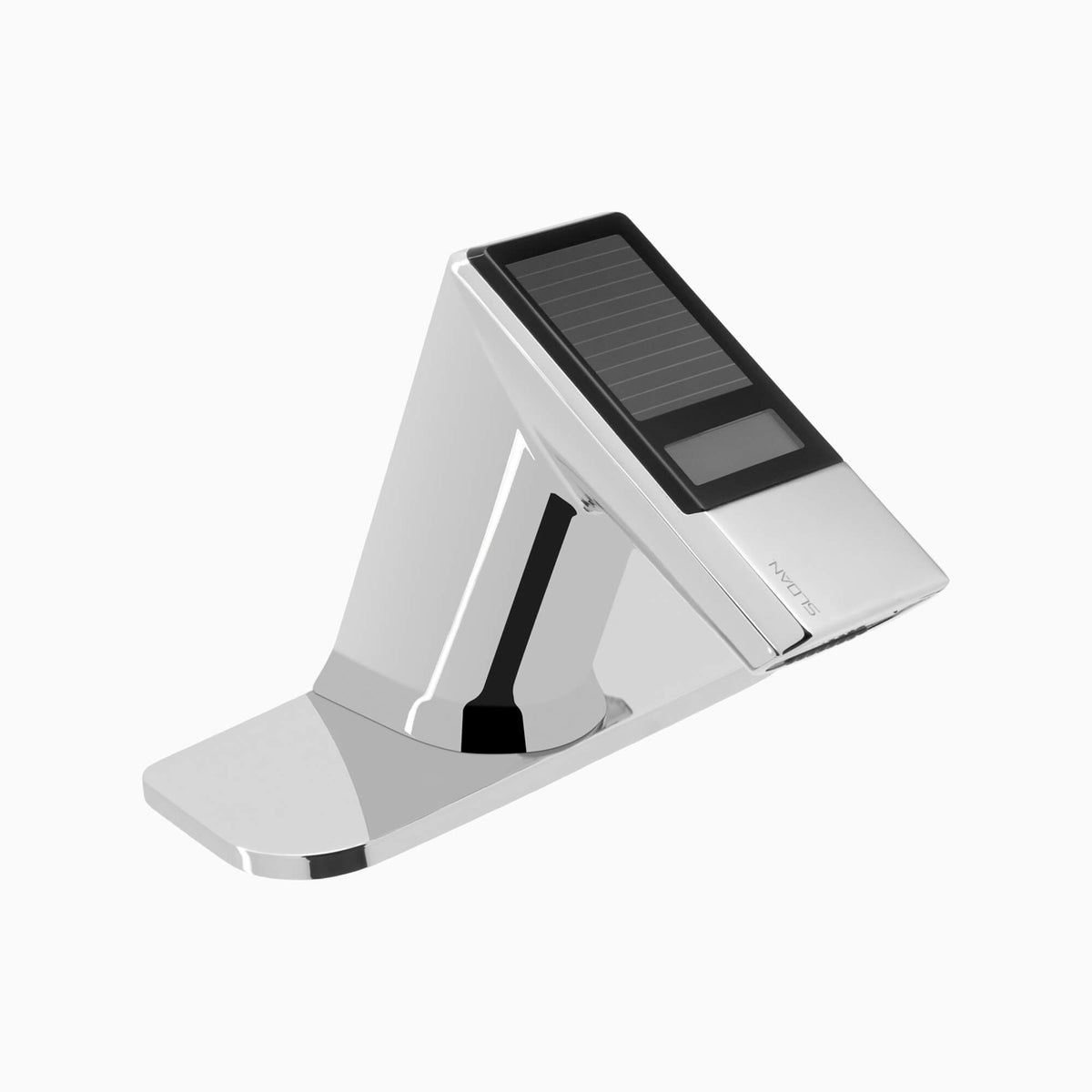

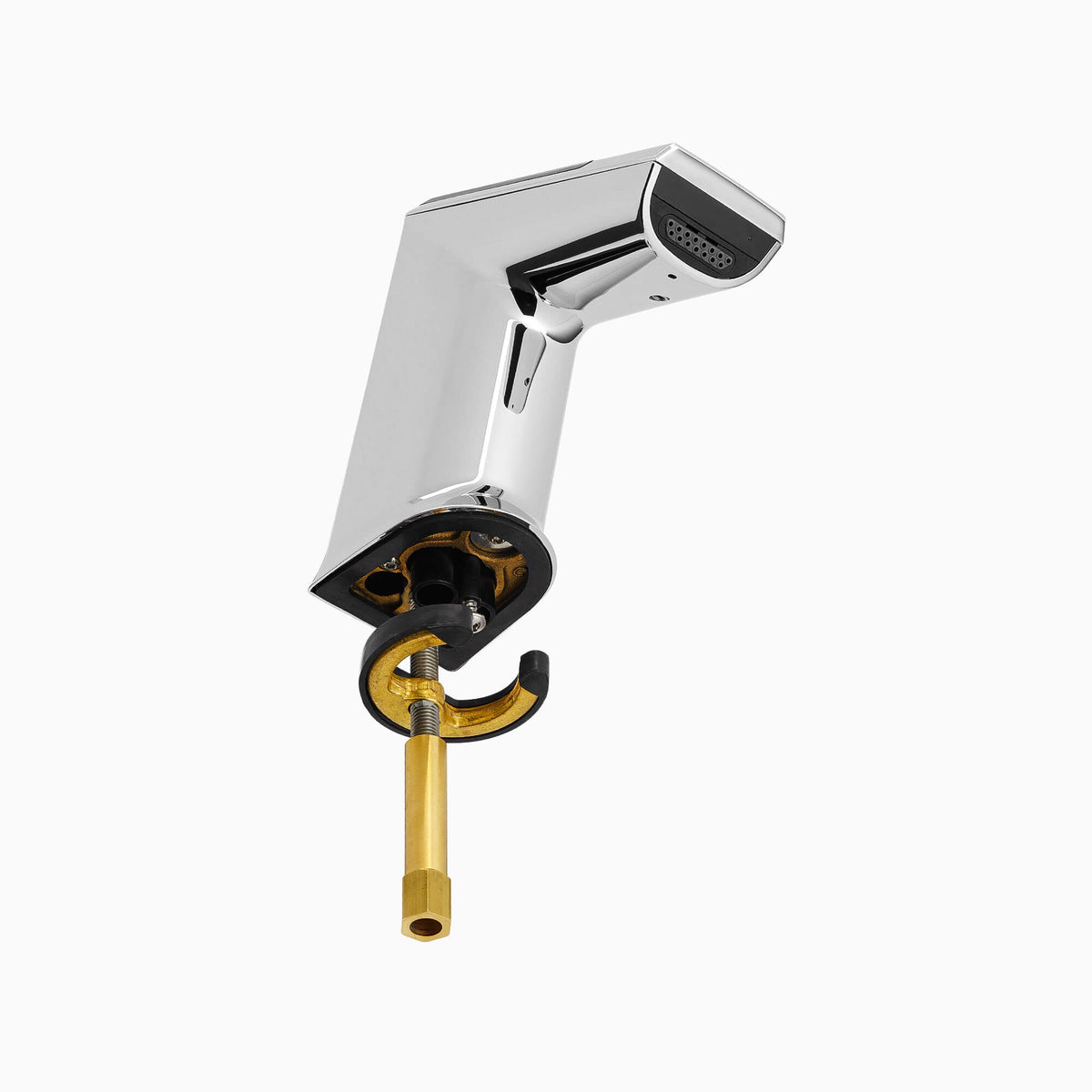

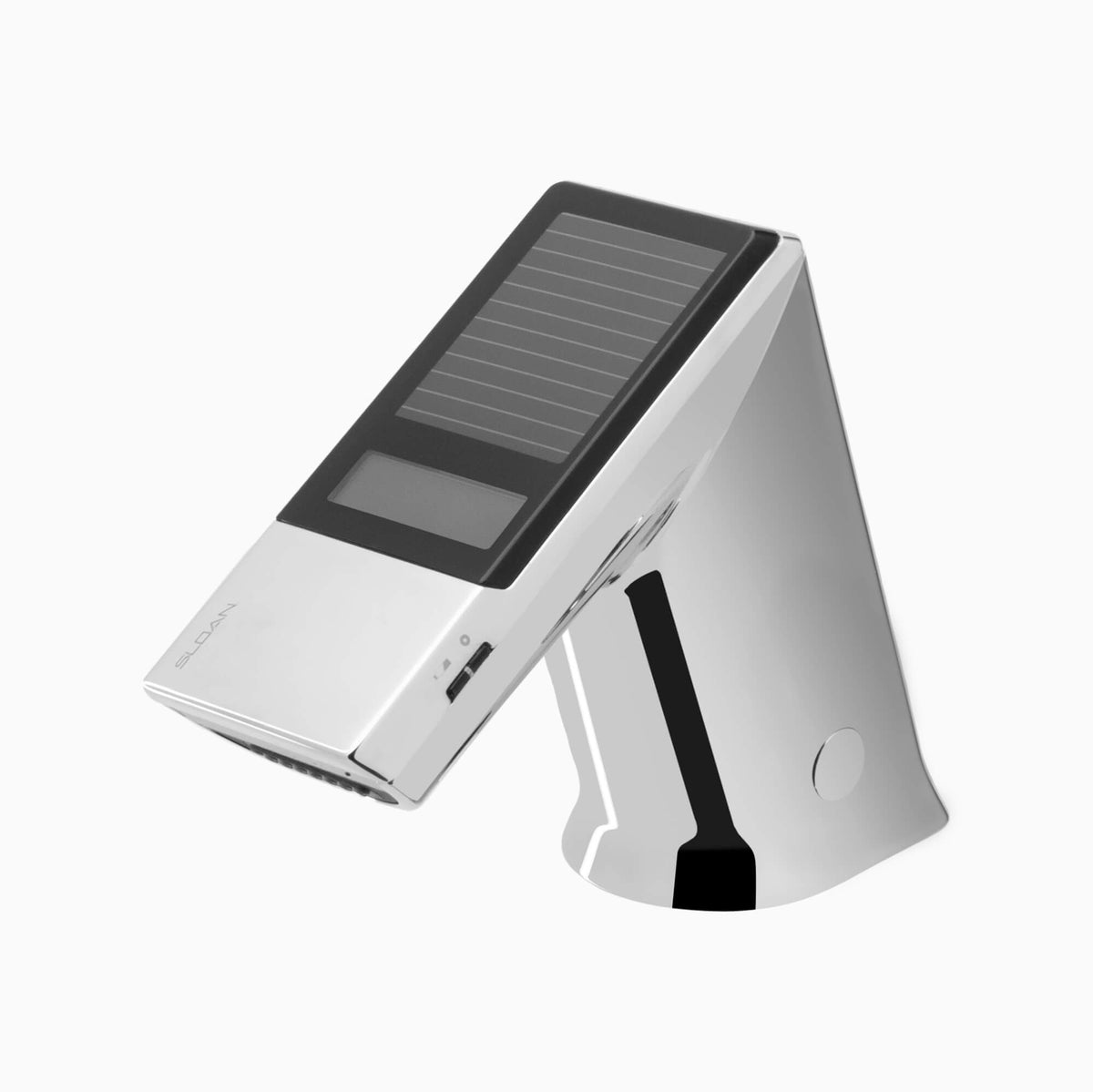

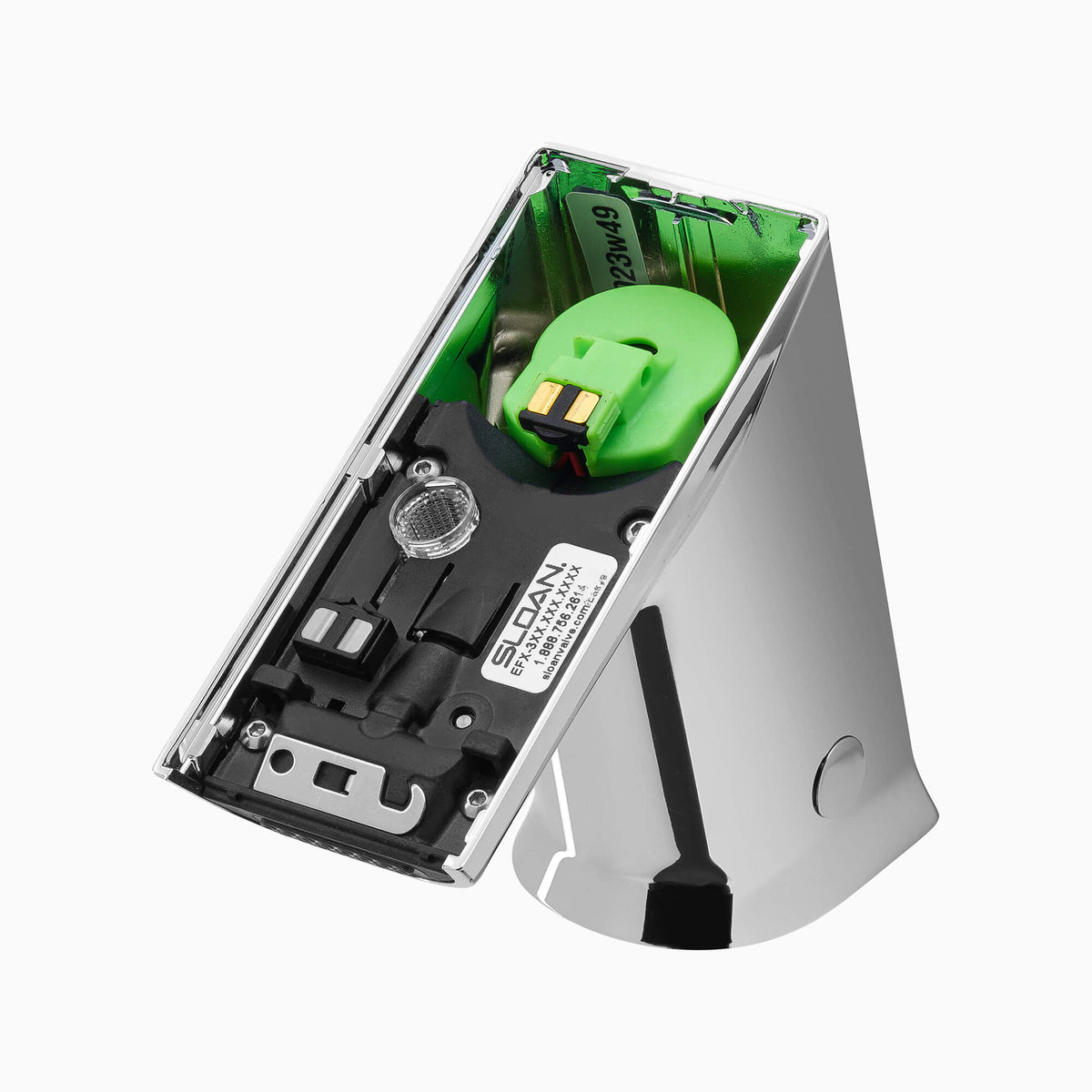

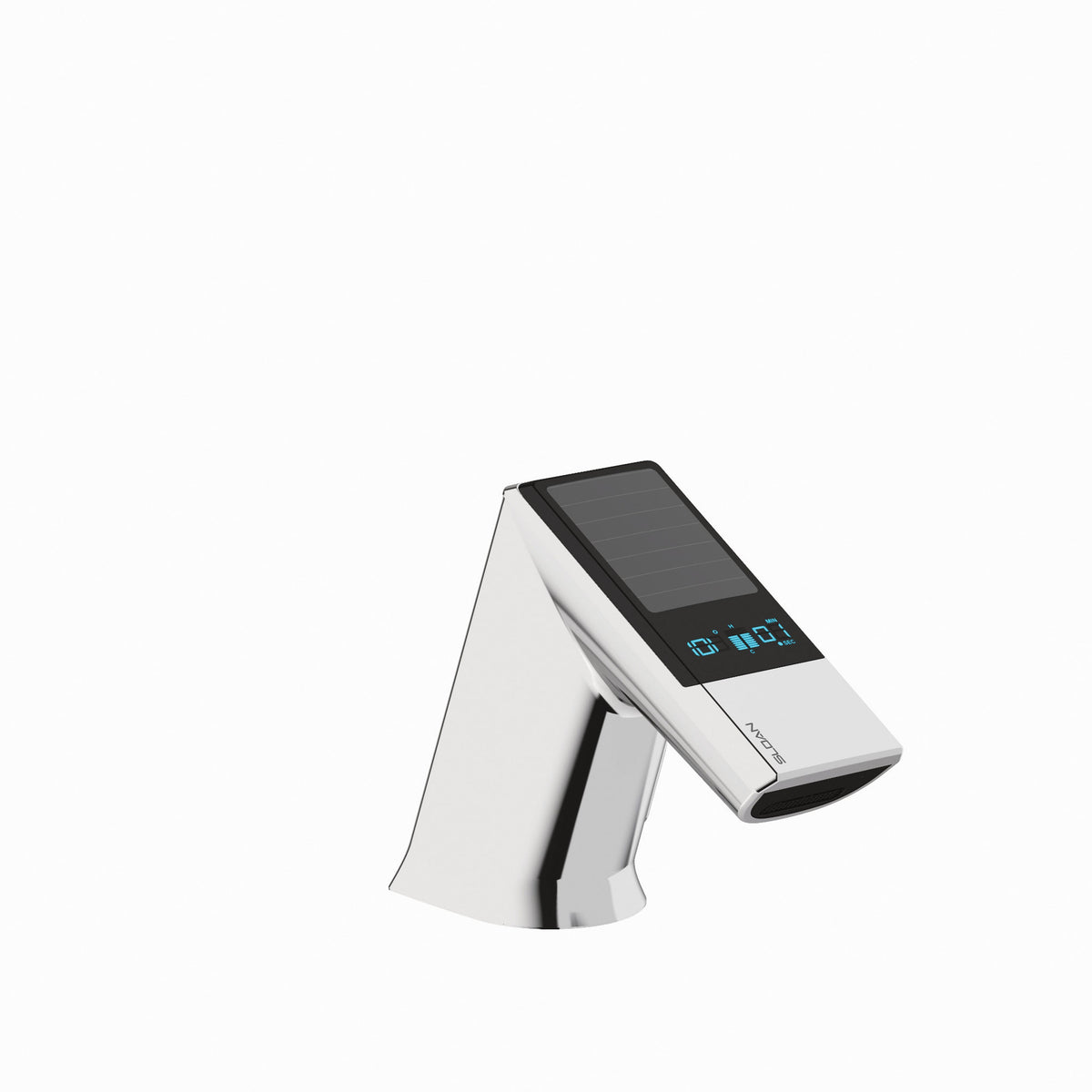

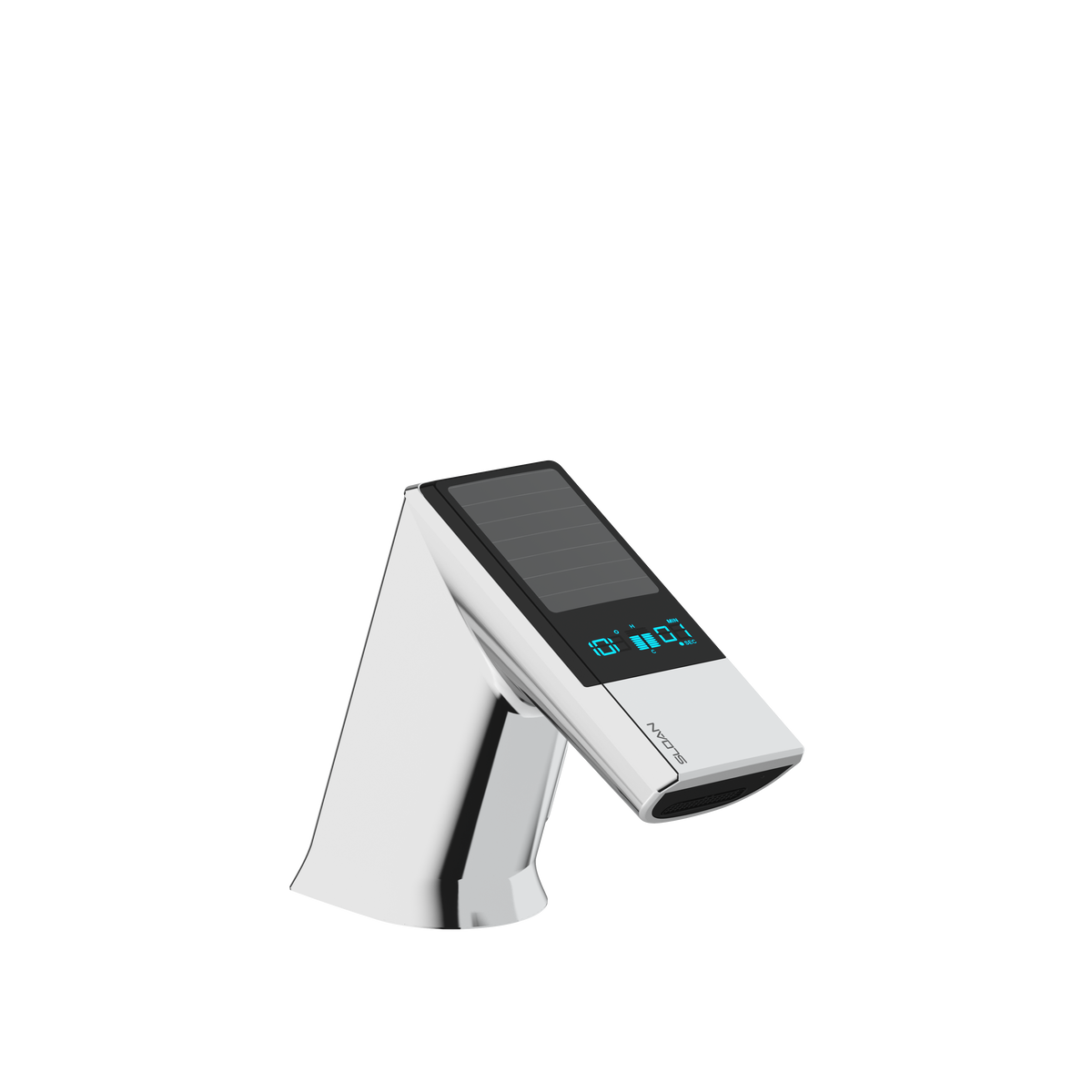

Sloan BASYS EFX-377 0.5 GPM Solar-Powered Sensor Faucet with Back-Check Tee, Polished Chrome, Code EFX377.000.0000

The Sloan EFX-377 is a Deck-mounted BASYS sensor faucet powered by solar. It delivers 0.5 GPM through a multi-laminar (non-aerating) outlet. It includes a back-check tee. Available in Polished Chrome. This model is certified lead-free for potable-water installations.

The BASYS faucet is centered on a robust system of shared features and components. The EFX-377 is a solar powered low height profile that minimizes the potential for vandalism, making this body type ideal for high-use, low-security environments. The EFX-377 faucet comes with a number of features, including integral water supply shut off, vandal resistant spray inserts and double infrared sensors with automatic setting feature. Additionally, the EFX-377 comes with the ability to make adjustable time-outs, includes all necessary mounting hardware and is a single hole installation. The EFX-377 also has a matching soap dispenser available for purchase separately, the ESD-500.

Options on this configuration: BASYS configuration code EFX377.000.0000.

Features

• Trim Plate: None, Solar Power Supply, Back-Check Tee, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor
• Chrome plated finish
• One tool service
• Solenoid housed in removable carrier that includes supply strainer
• Integral water supply shut off
• Vandal resistant spray insert, key housed inside faucet body
• All electronics sealed to IP-67
• Gold plated electrical contacts
• Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode
• Flexible, high pressure supply hose, 3/8” compression connections
• Bi-stable magnetic solenoid
• Four (4) “AA” alkaline batteries
• Double infrared sensors with automatic setting feature
• Single hole installation (pedestal)
• Includes all mounting hardware
• 3 year limited warranty

Common Questions

How is this faucet powered, and what ships in the box?

This faucet is solar-powered, charging an internal battery from ambient light. Sloan states a battery life of 3 years 8,000 cycles/month.

Is this single-hole or centerset, and does it need a trim plate?

This model installs in a single deck hole.

Which mixing valve does this use, and is it ASSE 1070 listed?

It includes a back-check tee.

What is the flow rate, and is it WaterSense certified?

It delivers 0.5 GPM.

What sensor technology does it use, and can it be commissioned remotely?

This faucet uses an infrared sensor with a detection range of 4”-5”.

Specifications

• Type: Sensor Faucet
• Warranty: 3-Year Limited
• MPN: EFX-377-SOL-TEE-CP-0.5GPM-MLM-FCT
• Certifications: ADA, CEC, IAPMO, TAS, NSF-372
• Lead-Free: Yes
• Power Source: Solar
• Power Supply Detail: Solar (SOL)
• Battery Life: 3 years 8,000 cycles/month
• Run Time (s): 60
• Sensor Type: Infrared
• Sensing Range (in): 4”-5”
• Centers: Single-Hole
• Mixing Valve: Back-Check Tee
• Outlet Type: Multi-Laminar (Non-Aerating)
• Body Height: Low
• Mount Type: Deck-Mount
• Finish: Polished Chrome
• Flow Rate (GPM): 0.5
• Vandal Resistant: Yes
