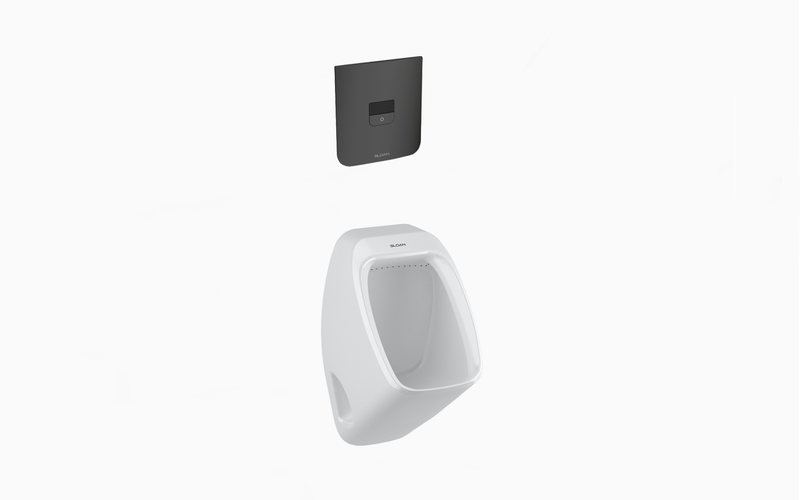

This is a complete urinal package: the SU-7419 vitreous china bowl paired with a CX 8198 flushometer. It features a vitreous china body.
Features
- Standard
- Fixed volume piston with filtered O-ring bypass
- Front access wall plate requires no rear access plumbing chase
- Sensor activated, hands-free operation
- Battery operated with hardwired option
- Electronic override button
- low Battery indicator light
- vandal resistant wall plate
- Adjustable flush connection
- White Vitreous China
- Washdown flushing action
- Integral flushing rim
- ¾" I.P.S. rear spud inlet
- 2" NPT outlet flange
- Fully concealed trapway
- Vandal resistant strainer assembly included
- All mounting hardware included
- 100% factory flush tested
Common Questions
- What flushometer comes with this combo, and is it sensor or manual?
- This combo ships with a CX 8198 flushometer.
- What is the flush volume, and is it WaterSense certified?
- 0.125 gallons per flush (gpf).
- Is this a top spud or rear spud connection?
- Rear Spud.
Specifications
-
Type: Urinal Combo
-
Body Material: Vitreous China
-
MPN: WEUS-7410.3001
-
Certifications: ASSE-1001, Buy American Act
-
Bowl / Flush Action: Wash Down
-
Paired Flushometer: CX 8198
-
Fixture Served: Urinal
-
Trim Finish: Graphite
-
Spud Connection: Rear Spud
-
Flush Volume (gal): 0.125
