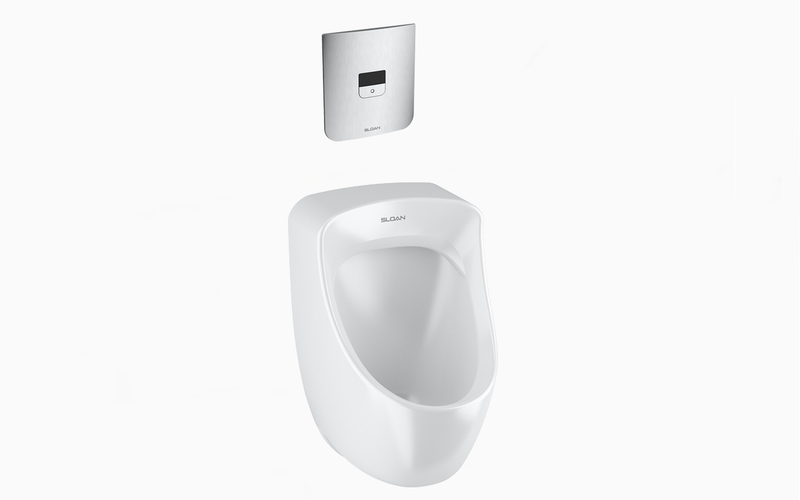

This is a complete urinal package: the SU-7019RS bowl paired with a CX 8198 flushometer.
Features
- Standard
- Fixed volume piston with filtered O-ring bypass
- Front access wall plate requires no rear access plumbing chase
- Sensor activated, hands-free operation
- Battery operated with hardwired option
- Electronic override button
- low Battery indicator light
- vandal resistant wall plate
- Adjustable flush connection
- Designed to maximize and complement Sloan flushometers
- Small size and clean lines fits a large variety of applications and restroom looks
- Thorough washdown flushing action
- Vandal resistant stainless steel strainer included
- IAPMO certified to meet or exceed ASME A112.19.2 standards
- Water Sense listed by EPA that qualifies for most rebate programs
- Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly
Common Questions
- What flushometer comes with this combo, and is it sensor or manual?
- This combo ships with a CX 8198 flushometer.
- What is the flush volume, and is it WaterSense certified?
- 0.125 gallons per flush (gpf). WaterSense certified.
- Is this a top spud or rear spud connection?
- Rear Spud.
Specifications
-
Type: Urinal Combo
-
MPN: WEUS-7010.3001
-
Certifications: Buy American Act, IAPMO, WaterSense
-
Bowl / Flush Action: Wash Down
-
Paired Flushometer: CX 8198
-
Fixture Served: Urinal
-
Trim Finish: Brushed Stainless
-
Spud Connection: Rear Spud
-
Flush Volume (gal): 0.125
