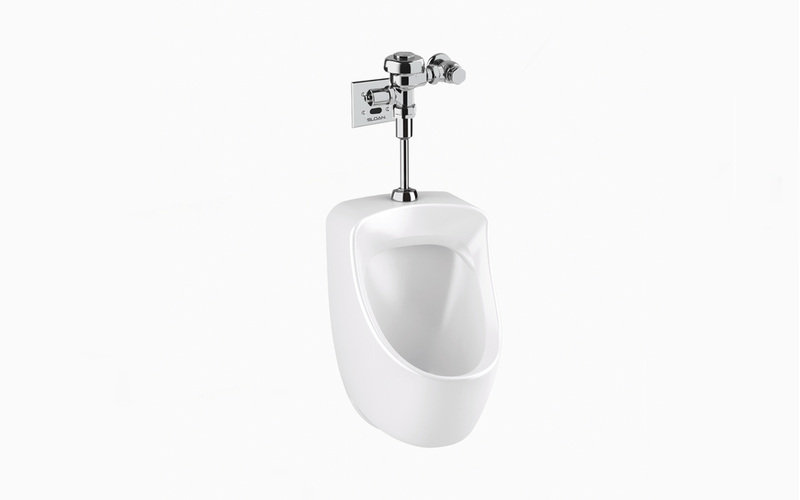

This is a complete urinal package: the SU-7009 vitreous china bowl paired with a Sloan 186 flushometer. It features a vitreous china body.
Features
- Standard
- Flush volumes start as low as 1.0 gpf/3.8 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece to accommodate different height requirements
- High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- Designed to maximize and complement Sloan flushometers
- Small size and clean lines fits a large variety of applications and restroom looks
- Thorough washdown flushing action
- Vandal resistant stainless steel strainer included
- IAPMO certified to meet or exceed ASME A112.19.2 standards
- Water Sense listed by EPA that qualifies for most rebate programs
- Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly
Common Questions
- What flushometer comes with this combo, and is it sensor or manual?
- This combo ships with a Sloan 186 flushometer, which is sensor-operated (touchless activation).
- What is the flush volume, and is it WaterSense certified?
- 0.125 gallons per flush (gpf). WaterSense certified.
- Is this an ADA-height fixture?
- Yes, this is the ADA / comfort-height model.
- Is this a top spud or rear spud connection?
- Top Spud.
Specifications
-
Type: Urinal Combo
-
Body Material: Vitreous China
-
MPN: WEUS-7009.1331
-
Certifications: ADA, CALGreen, CEC, IAPMO, WaterSense
-
Bowl / Flush Action: Wash Down
-
Paired Flushometer: Sloan 186
-
Fixture Served: Urinal
-
Trim Finish: Polished Chrome
-
Spud Connection: Top Spud
-
Flush Volume (gal): 0.125
