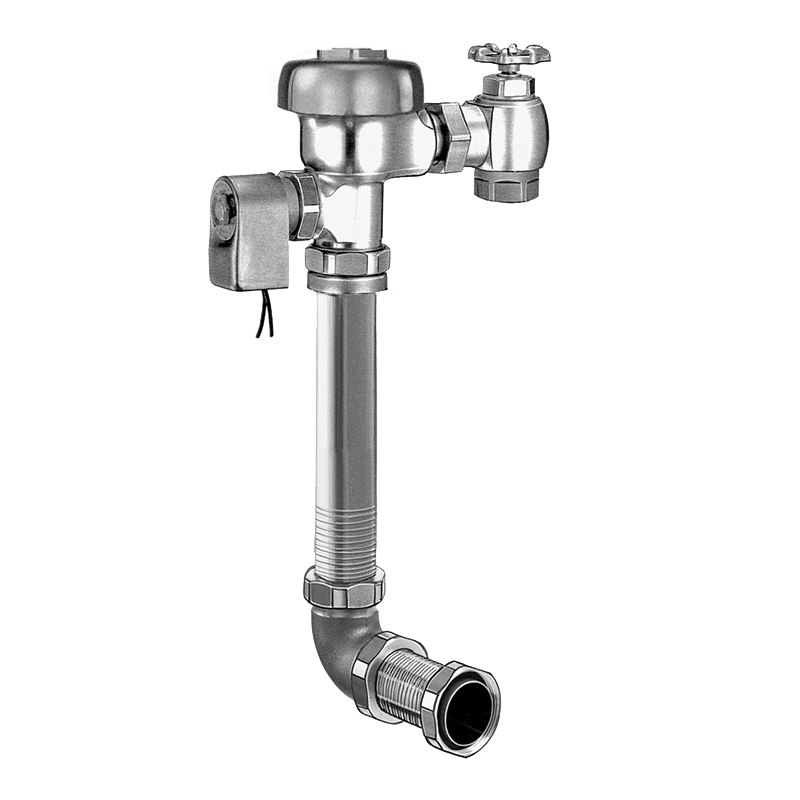

The Sloan Regal 603 is a solenoid-operated diaphragm-type flush valve for a water closet.
Options on this configuration: Sweat Solder Adapter Kit (YB). Sloan model number: Regal 603.
Features
- Solenoid activated, hardwired closet flushometer
- Diaphragm type flushometer
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
-
Type: Flushometer
-
Operation: Solenoid
-
MPN: Regal 603
-
Certifications: ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Concealed
