Similar products
Specifications
Description

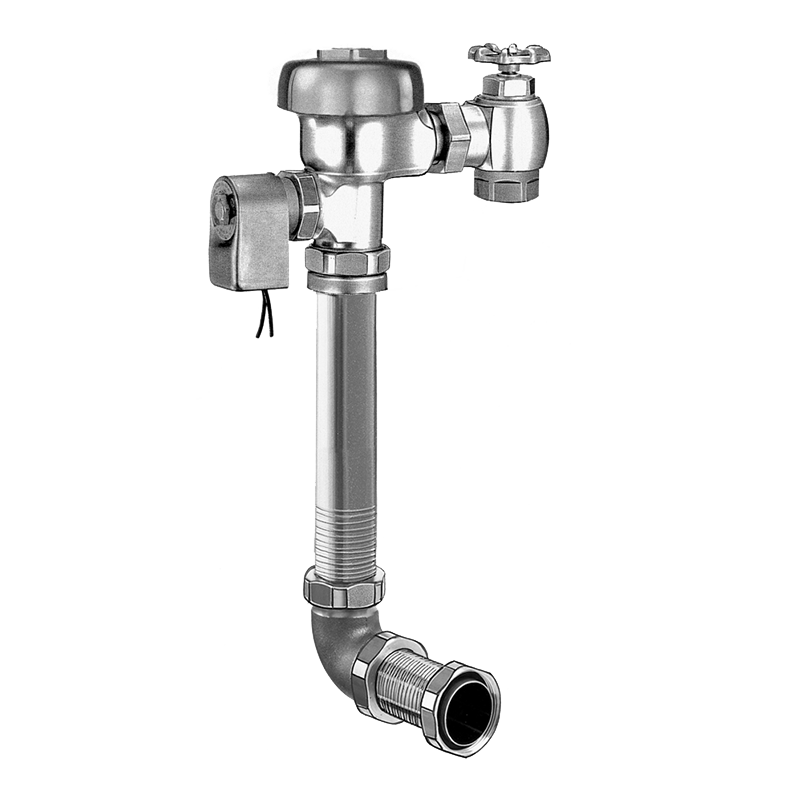

The Sloan Regal 603-1.6 is a solenoid-operated diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a concealed body.
Options on this configuration: Anti-Flood Device Flush Connection (AFD); Sweat Solder Adapter Kit (YB). Sloan model number: Regal 603-1.6.
Features
- Solenoid activated, hardwired closet flushometer
- Diaphragm type flushometer
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Operation: Solenoid
- MPN: Regal 603-1.6
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- Volume per Flush (gal): 1.6
Details
| Series | REGAL 603 ES | Device Type | Flushometer |
| Operation | Solenoid | Options | Anti-Flood Device Flush Connection (AFD), Sweat Solder Adapter Kit (YB) |
| Fixture Served | Water Closet | Body style | Concealed |
| Cycle volume gal | 1.6 gal | — | — |
Certifications & Standards
| ASSE-1037 | — |
