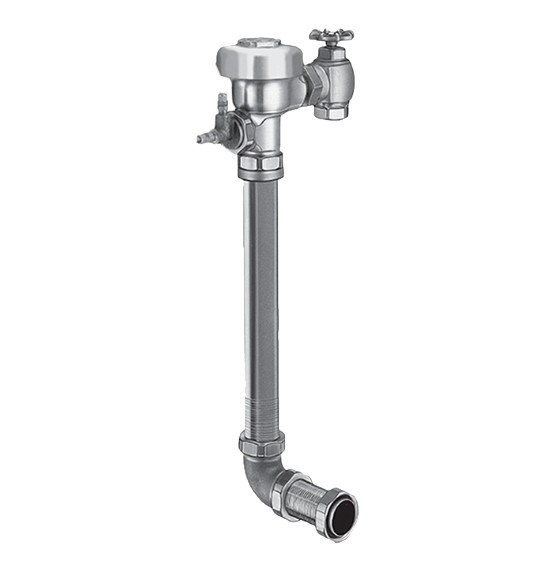

The Sloan REGAL 952-1.6-XL-RB is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body.
Sloan REGAL 952 concealed hydraulic flushometer with remotely positioned push-button actuators, available in multiple flush volumes, and ADA compliance.
Options on this configuration: 2"-10-3/4" L Dimension (LDIM); XL Sweat Solder Adapter Kit (XL). Sloan model number: REGAL 952-1.6-XL-RB.
Features
- 1.6 gpf, XL Sweat Solder Adapter Kit, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, 2"-10.75" L Dimension
- Various types of push-button flush actuators, which can be remotely positioned
- Flush volumes start as low as 1.6 gpf/6.0 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open
- Integrity of the product is maintained with control stop plug
- Made from rough brass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Operation: Manual
- MPN: REGAL 952-1.6-XL-RB
- Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- Spud Connection: Rear Spud
- Rough-In (in): 14.5"
- L Dimension (in): 2"-10-3/4"
- Volume per Flush (gal): 1.6
- Dual Flush: No
- Finish: Unfinished (Rough Brass)
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | REGAL 952 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Manual |
| Options | 2"-10-3/4" L Dimension (LDIM), XL Sweat Solder Adapter Kit (XL) | Fixture Served | Water Closet |
| Body style | Concealed | Coating | Unfinished (Rough Brass) |
| Cycle volume gal | 1.6 gal | Dual flush | No |
| L dimension in | 2"-10-3/4" | Operating pressure min psi | 15 PSI |
| Rough in in | 14.5" | Spud connection | Rear Spud |
Certifications & Standards
| ADA | Buy American Act |
| IAPMO | ASSE-1037 |
Compare with similar products
| Fixture Served | Water Closet
| Water Closet
|
| Series | REGAL 952
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 1"
| 1"
|
| Outlet Size | 1-1/2"
| 1-1/2"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Operation | Manual
| Manual
|
| Certifications | ADA, Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | 2"-10-3/4" L Dimension (LDIM), XL Sweat Solder Adapter Kit (XL)
| No Control Stop (XD)
|
