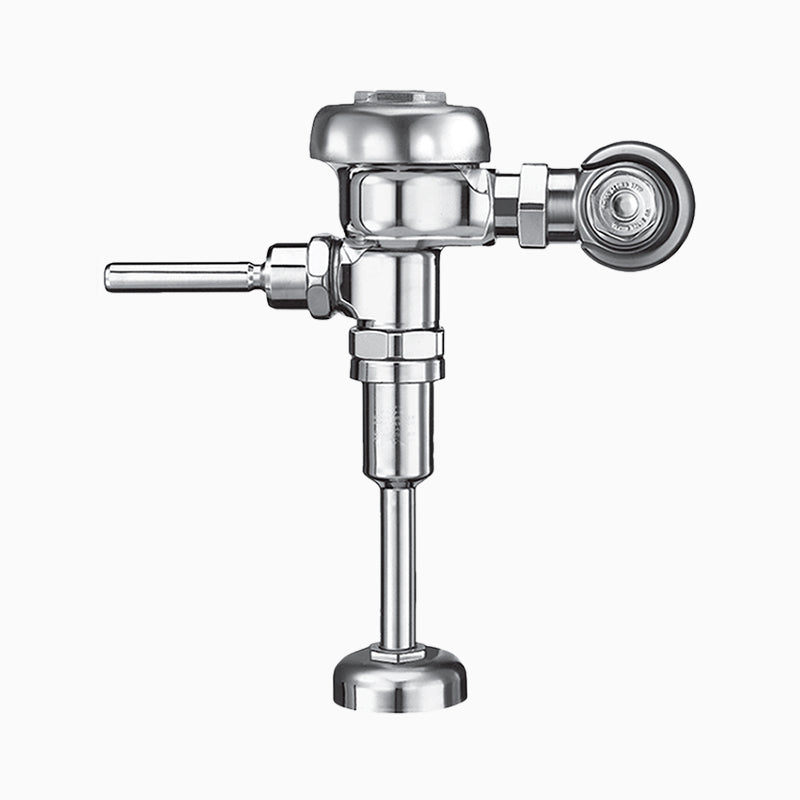

Sloan Regal 186-1.0 Exposed Manual Flushometer, 1.0 gpf, Top Spud, Polished Chrome, with 1" Stop

The Sloan REGAL 186-1.0-XL-CP is a manual diaphragm-type flush valve for a urinal. It delivers 1.0 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

Sloan REGAL 186 exposed manual urinal flushometer available in multiple flush volumes, ADA-compliant handle, and dezincification-resistant brass castings.

Options on this configuration: XL Sweat Solder Adapter Kit (XL); W/1"; STOP. Sloan model number: REGAL 186-1.0-XL-CP. Sloan's own price-list description: REGAL 186-1 XL W/1" STOP.

Features

• 1.0 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, 1" Control Stop
• Flush volumes start as low as 0.5 gpf/1.9 Lpf
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
• Integrity of the product is maintained with control stop plug
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 3/4"
• Body Material: Semi-Red Brass
• Operation: Manual
• Country of Origin: USA
• MPN: REGAL 186-1.0-XL-CP
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 1.0
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
