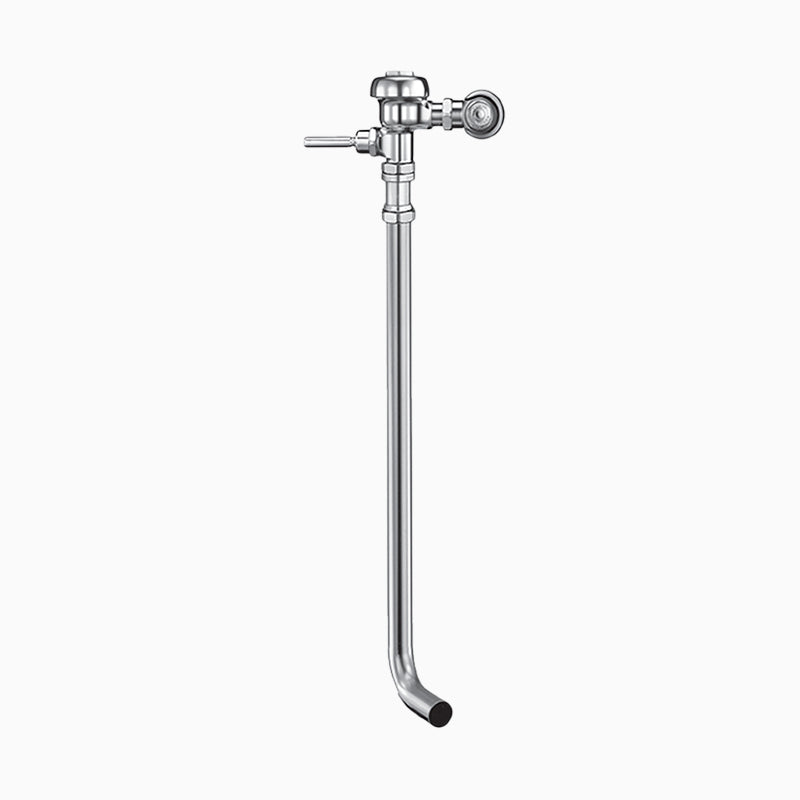

Sloan Regal 137-1.6 Exposed Manual Flushometer, 1.6 gpf, Top Spud, Polished Chrome

The Sloan REGAL 137-1.6-XL-CP is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

Sloan REGAL 137 exposed squat toilet flushometer delivers 1.6 gpf with dezincification-resistant brass castings and ASSE 1037 compliance.

Options on this configuration: XL Sweat Solder Adapter Kit (XL). Sloan model number: REGAL 137-1.6-XL-CP.

Features

• 1.6 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush
• Standard flush volume is 6.5 gpf /24.6 Lpf
• Flushometers may be ordered with a handle at the front or a push-button actuator
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Operation: Manual
• Country of Origin: USA
• MPN: REGAL 137-1.6-XL-CP
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 36"
• Volume per Flush (gal): 1.6
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
