Description

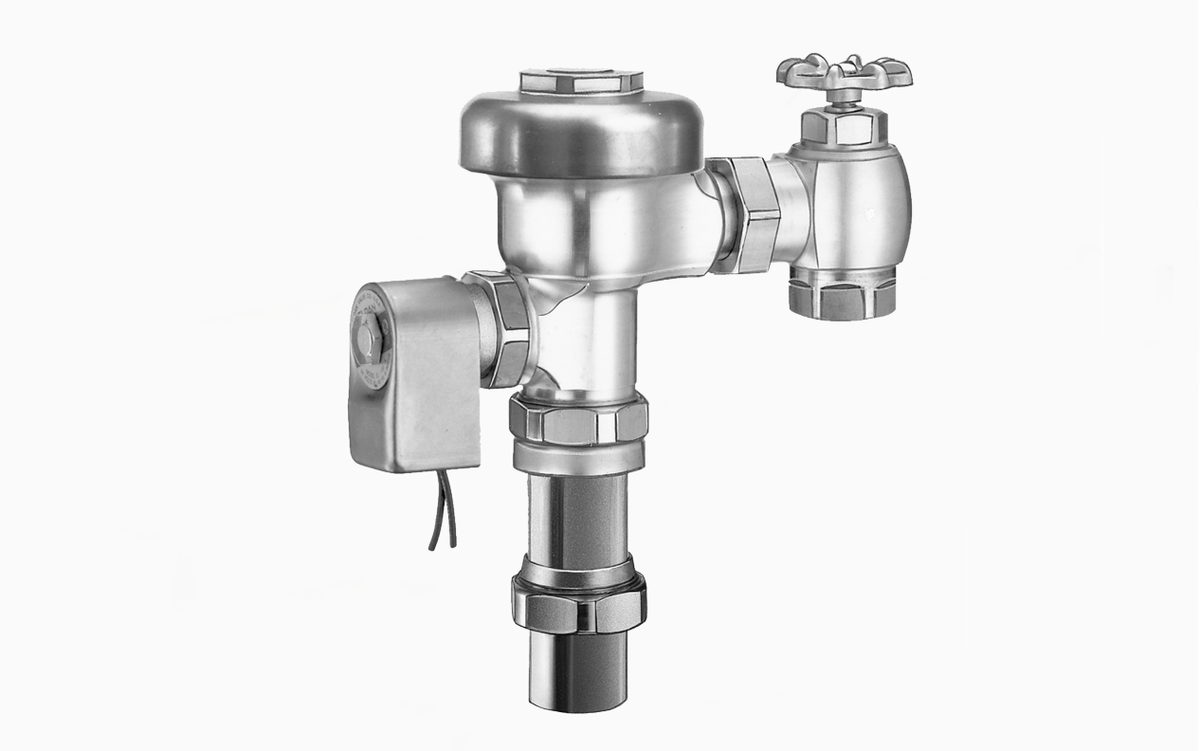

The Sloan REGAL 150 ES-ESM-1.6-RB-HW-24V is a solenoid-operated diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a concealed body. It features a semi-red brass body.
Options on this configuration: 24V Power (24V); Hardwired (HW). Sloan model number: REGAL 150 ES-ESM-1.6-RB-HW-24V.
Features
- 1.6 gpf, Rough Brass Finish, Fixture Connection Not Included, Single Flush, Hardwired, Solenoid-Operated with Modular Plug, 24V
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Body Material: Semi-Red Brass
- Operation: Solenoid
- MPN: REGAL 150 ES-ESM-1.6-RB-HW-24V
- Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- Volume per Flush (gal): 1.6
- Dual Flush: No
- Finish: Unfinished (Rough Brass)
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
- Power Source: Hardwired AC
- Power Supply Detail: 24V
Dimensions
| Inlet Size | 1" | — | — |
Details
| Series | REGAL 150 ES | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Solenoid |
| Options | 24V Power (24V), Hardwired (HW) | Fixture Served | Water Closet |
| Body style | Concealed | Coating | Unfinished (Rough Brass) |
| Cycle volume gal | 1.6 gal | Dual flush | No |
| Operating pressure min psi | 15 PSI | Power source | Hardwired AC |
| Power supply detail | 24V | — | — |
Certifications & Standards
| ADA | Buy American Act |
| IAPMO | ASSE-1037 |
Compare with similar products
| Fixture Served | Water Closet
| Water Closet
| Water Closet
| Water Closet
| Water Closet
|
| Series | REGAL 150 ES
| REGAL 611 ES
| REGAL 603 ES
| REGAL 603 ES
| REGAL 603 ES
|
| Spec Sheet | |||||
| Install Sheet | |||||
| Device Type | Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
|
| Operation | Solenoid
| Solenoid
| Solenoid
| Solenoid
| Solenoid
|
| Certifications | ADA, Buy American Act, IAPMO, ASSE-1037
| ASSE-1037
| ASSE-1037
| ASSE-1037
| ASSE-1037
|
| Options | 24V Power (24V), Hardwired (HW)
| Sweat Solder Adapter Kit (YB)
| XL Sweat Solder Adapter Kit (XL), 24V Power (24V), W/V500AA, 6, IN
| Less Control Stop (order separately) (L/STOP)
| — |
