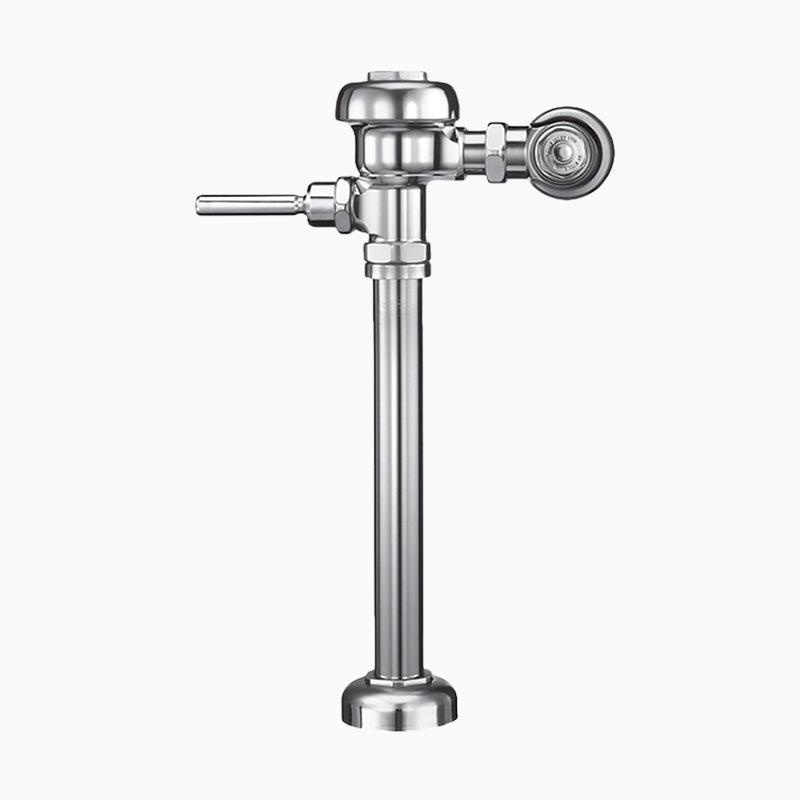

Sloan Regal 117-6.5 Exposed Manual Flushometer, 6.5 gpf, Top Spud, Polished Chrome, Less Vacuum Breaker, Less Flush Connection, 117XL with Spud Flange

The Sloan REGAL 117-6.5-XL-CP-L/FC-XYV is a manual diaphragm-type flush valve for a service sink. It delivers 6.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

Sloan REGAL 117 exposed manual service sink flushometer. 6.5 gpf, dezincification-resistant brass castings, ASSE 1037 compliant. ADA and BAA compliant.

Options on this configuration: Less Vacuum Breaker (order separately) (XYV); Less Flush Connection (L/FC); XL Sweat Solder Adapter Kit (XL); 117XL; W/SPUD; FLANGE. Sloan model number: REGAL 117-6.5-XL-CP-L/FC-XYV. Sloan's own price-list description: REGAL 117XL XYV L/FC W/ SPUD FLANGE.

Features

• 6.5 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, Less Flush Connection, Fixture Connection Top Spud, Single Flush, Less Vacuum Breaker
• Standard flush volume is 6.5 gpf /24.6 Lpf
• Flushometers may be ordered with a handle at the front or a push-button actuator
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a service sink, 6.5 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Operation: Manual
• Country of Origin: USA
• MPN: REGAL 117-6.5-XL-CP-L/FC-XYV
• Certifications: ADA, Buy American Act, ASSE-1037
• Fixture Served: Service Sink
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 24"
• Volume per Flush (gal): 6.5
• Dual Flush: No
• Finish: Polished Chrome
• Backflow Device: None (Order Separately)
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
