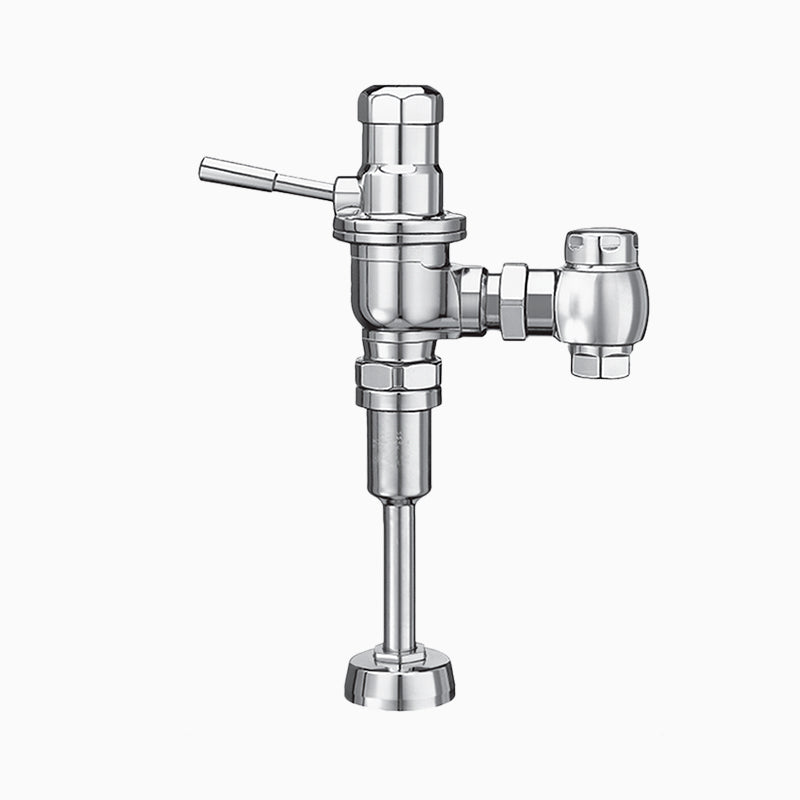

Sloan Dolphin 186-1.0 Exposed Manual Flushometer, 1.0 gpf, 1 in. Adjustable Stop

The Sloan DOLPH is a manual piston-type flush valve for a urinal. It delivers 1.0 gallons per flush, with an exposed body.

Exposed manual urinal flushometer with adjustable flush volume, oil-isolated control mechanism, and military spec compliance. ASSE 1037 certified.

Options on this configuration: 1; IN; ADJ; STOP. Sloan model number: DOLPH. Sloan's own price-list description: DOLPH 186-1 1 IN ADJ STOP.

Features

• Flush volume is factory set with option of adjusting volume range according to specific needs
• Flushing control mechanism functions in oil and is isolated from debris
• Water pressure not required to positively shut off
• Complies with military specifications
• Regulating screw for flush duration control
• Adjustable tailpiece
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Operation: Manual
• MPN: DOLPH
• Certifications: ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Volume per Flush (gal): 1.0
