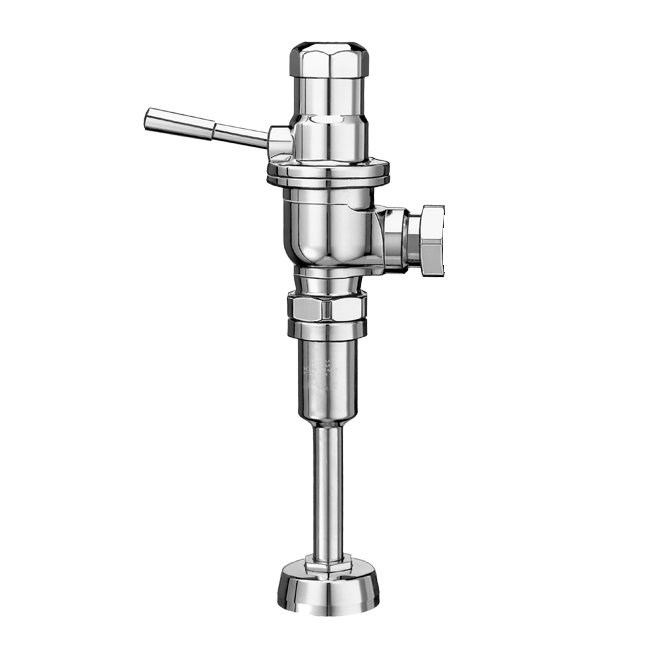

Sloan Dolphin 1.0U Exposed Manual Flushometer, 1.0 gpf, Top Spud, Polished Chrome

The Sloan DOLPHIN 1.0U-1.0-CP-ADJ is a manual piston-type flush valve for a urinal. It delivers 1.0 gallons per flush, with a top spud connection at an exposed body. It features a red brass body.

Dolphin 1.0U exposed manual urinal flushometer with red brass body, cover, tailpiece and control stop. BAA and BABAA compliant.

Options on this configuration: 1.0U; ADJ; REPL. Sloan model number: DOLPHIN 1.0U-1.0-CP-ADJ. Sloan's own price-list description: DOLPH 1.0U ADJ REPL.

Features

• 1.0 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Adjustable
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Body Material: Red Brass
• Operation: Manual
• Country of Origin: USA
• MPN: DOLPHIN 1.0U-1.0-CP-ADJ
• Certifications: Buy American Act, BABA, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Volume per Flush (gal): 1.0
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
