Similar products
Specifications
Description

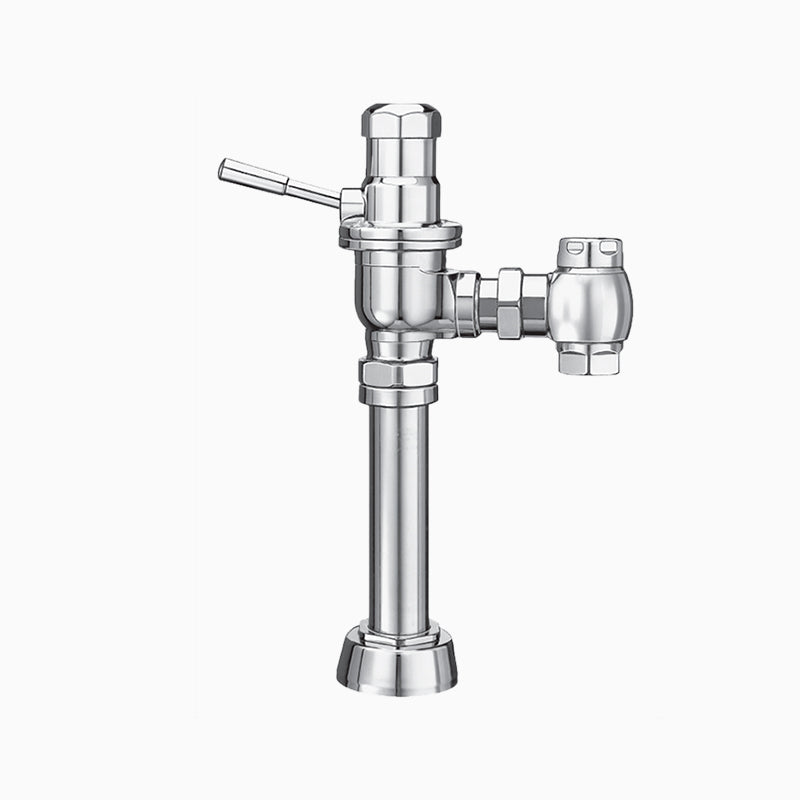

The Sloan DOLPH is a manual piston-type flush valve for a water closet.
Sloan DOLPHIN 110 exposed manual flushometer with oil-isolated control mechanism, adjustable flush volume, and ASSE 1037 compliance. Meets military specs.
Options on this configuration: H551 5-1/16" Tailpiece; TAIL. Sloan model number: DOLPH. Sloan's own price-list description: DOLPH 110 W/H551 5-1/16 TAIL.
Features
- Flush volume is factory set with option of adjusting volume range according to specific needs
- Flushing control mechanism functions in oil and is isolated from debris
- Water pressure not required to positively shut off
- Complies with military specifications
- Regulating screw for flush duration control
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Operation: Manual
- MPN: DOLPH
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
Details
| Series | DOLPHIN 110 | Device Type | Flushometer |
| Operation | Manual | Options | H551 5-1/16" Tailpiece, TAIL |
| Fixture Served | Water Closet | Body style | Exposed |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Water Closet
|
| Series | DOLPHIN 110
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | H551 5-1/16" Tailpiece, TAIL
| No Control Stop (XD)
|
