Description

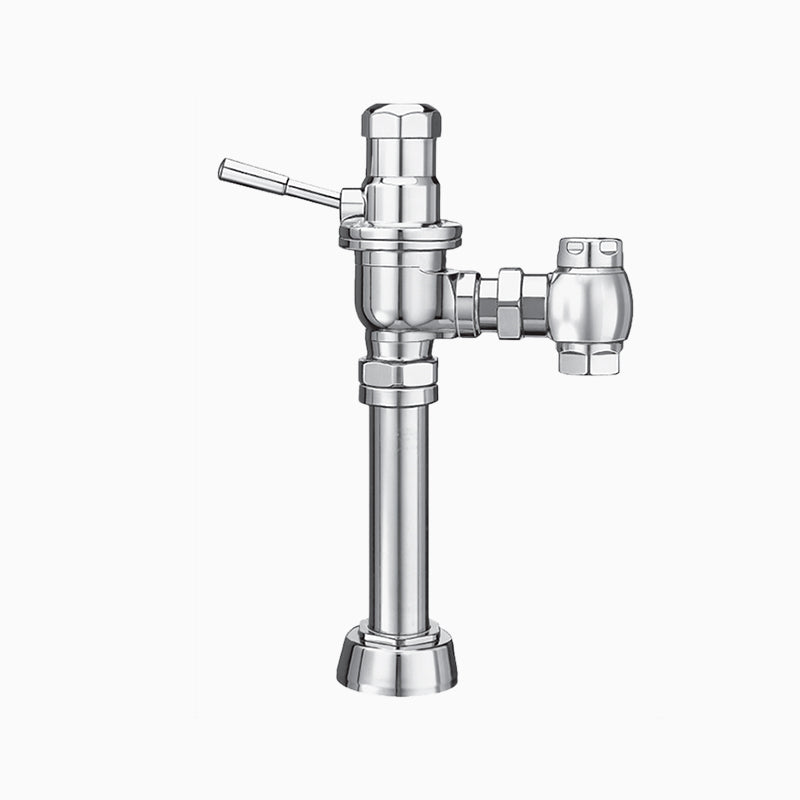

The Sloan DOLPHIN 110-3.5-GJ-CP-XYV is a manual piston-type flush valve for a water closet. It delivers 3.5 gallons per flush, with a top spud connection at an exposed body. It features a red brass body.
Sloan DOLPHIN 110 exposed manual flushometer with oil-isolated control mechanism, adjustable flush volume, and ASSE 1037 compliance. Meets military specs.
Options on this configuration: Ground Joint Control Stop (GJ); Less Vacuum Breaker (order separately) (XYV). Sloan model number: DOLPHIN 110-3.5-GJ-CP-XYV.
Features
- 3.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Ground Joint Control Stop, Less Vacuum Breaker
- Flush volume is factory set with option of adjusting volume range according to specific needs
- Flushing control mechanism functions in oil and is isolated from debris
- Water pressure not required to positively shut off
- Complies with military specifications
- Regulating screw for flush duration control
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 3.5 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
- What control stop ships with this valve?
- Ground Joint, per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Red Brass
- Operation: Manual
- Control Stop: Ground Joint
- Country of Origin: USA
- MPN: DOLPHIN 110-3.5-GJ-CP-XYV
- Certifications: Buy American Act, IAPMO, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11.5"
- Volume per Flush (gal): 3.5
- Dual Flush: No
- Finish: Polished Chrome
- Backflow Device: None (Order Separately)
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Product Information
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | DOLPHIN 110 | Device Type | Flushometer |
| Body Material | Red Brass | Operation | Manual |
| Options | Ground Joint Control Stop (GJ), Less Vacuum Breaker (order separately) (XYV) | Shutoff | Ground Joint |
| Fixture Served | Water Closet | Backflow device | None (Order Separately) |
| Body style | Exposed | Coating | Polished Chrome |
| Cycle volume gal | 3.5 gal | Dual flush | No |
| Operating pressure min psi | 15 PSI | Rough in in | 11.5" |
| Spud connection | Top Spud | — | — |
Certifications & Standards
| Buy American Act | IAPMO |
| ASSE-1037 | — |
Compare with similar products
| Shutoff | Ground Joint
| None Included
|
| Fixture Served | Water Closet
| Water Closet
|
| Series | DOLPHIN 110
| SLOAN 112
|
| Country Of Origin | USA
| USA
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 1"
| 1"
|
| Outlet Size | 1-1/2"
| 1-1/2"
|
| Body Material | Red Brass
| Semi-Red Brass
|
| Operation | Manual
| Manual
|
| Certifications | Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | Ground Joint Control Stop (GJ), Less Vacuum Breaker (order separately) (XYV)
| No Control Stop (XD)
|
