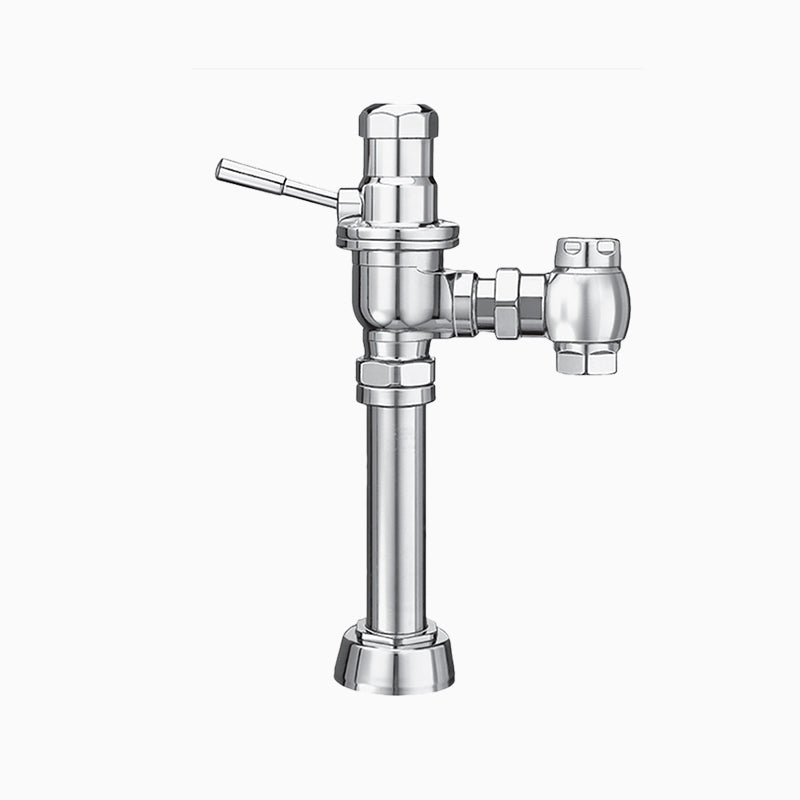

The Sloan DOLPHIN 111-1.6-GJ-CP is a manual piston-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a red brass body.
Exposed manual water closet flushometer with oil-isolated controls, adjustable flush volume, and military spec compliance. ASSE 1037 and Red Brass certified.
Options on this configuration: Ground Joint Control Stop (GJ). Sloan model number: DOLPHIN 111-1.6-GJ-CP.
Features
- 1.6 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Ground Joint Control Stop
- Flush volume is factory set with option of adjusting volume range according to specific needs
- Flushing control mechanism functions in oil and is isolated from debris
- Water pressure not required to positively shut off
- Complies with military specifications
- Regulating screw for flush duration control
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
- What control stop ships with this valve?
- Ground Joint, per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Red Brass
- Operation: Manual
- Control Stop: Ground Joint
- Country of Origin: USA
- MPN: DOLPHIN 111-1.6-GJ-CP
- Certifications: Buy American Act, BABA, IAPMO, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11.5"
- Volume per Flush (gal): 1.6
- Dual Flush: No
- Finish: Polished Chrome
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Product Information
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | DOLPHIN 111 | Device Type | Flushometer |
| Body Material | Red Brass | Operation | Manual |
| Options | Ground Joint Control Stop (GJ) | Shutoff | Ground Joint |
| Fixture Served | Water Closet | Body style | Exposed |
| Coating | Polished Chrome | Cycle volume gal | 1.6 gal |
| Dual flush | No | Operating pressure min psi | 15 PSI |
| Rough in in | 11.5" | Spud connection | Top Spud |
Certifications & Standards
| Buy American Act | BABA |
| IAPMO | ASSE-1037 |
Compare with similar products
| Shutoff | Ground Joint
| None Included
|
| Fixture Served | Water Closet
| Water Closet
|
| Series | DOLPHIN 111
| SLOAN 112
|
| Country Of Origin | USA
| USA
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 1"
| 1"
|
| Outlet Size | 1-1/2"
| 1-1/2"
|
| Body Material | Red Brass
| Semi-Red Brass
|
| Operation | Manual
| Manual
|
| Certifications | Buy American Act, BABA, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | Ground Joint Control Stop (GJ)
| No Control Stop (XD)
|
