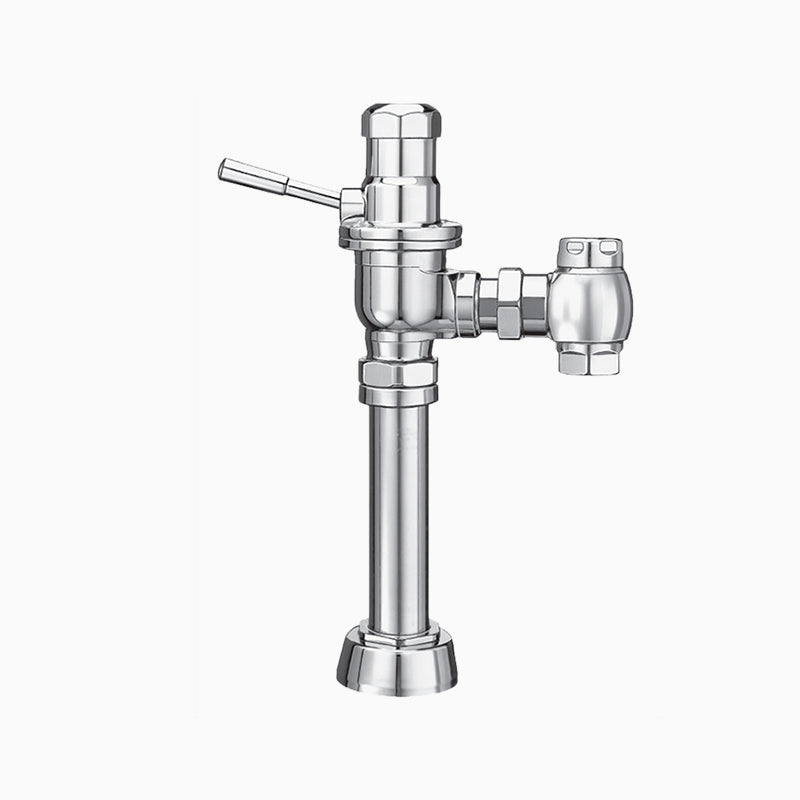

The Sloan DOLPHIN 110-3.5-YO-GJ-CP is a manual piston-type flush valve for a water closet. It delivers 3.5 gallons per flush, with a top spud connection at an exposed body. It features a red brass body.
Sloan DOLPHIN 110 exposed manual flushometer with oil-isolated control mechanism, adjustable flush volume, and ASSE 1037 compliance. Meets military specs.
Options on this configuration: Ground Joint Control Stop (GJ); Angle Stop Bumper (YO). Sloan model number: DOLPHIN 110-3.5-YO-GJ-CP.
Features
- 3.5 gpf, Angle Stop Bumper, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Ground Joint Control Stop
- Flush volume is factory set with option of adjusting volume range according to specific needs
- Flushing control mechanism functions in oil and is isolated from debris
- Water pressure not required to positively shut off
- Complies with military specifications
- Regulating screw for flush duration control
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 3.5 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
- What control stop ships with this valve?
- Ground Joint, per Sloan's own spec for this model.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Outlet Size: 1-1/2"
-
Body Material: Red Brass
-
Operation: Manual
-
Control Stop: Ground Joint
-
Country of Origin: USA
-
MPN: DOLPHIN 110-3.5-YO-GJ-CP
-
Certifications: Buy American Act, IAPMO, ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Exposed
-
Spud Connection: Top Spud
-
Rough-In (in): 11.5"
-
Volume per Flush (gal): 3.5
-
Dual Flush: No
-
Finish: Polished Chrome
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
