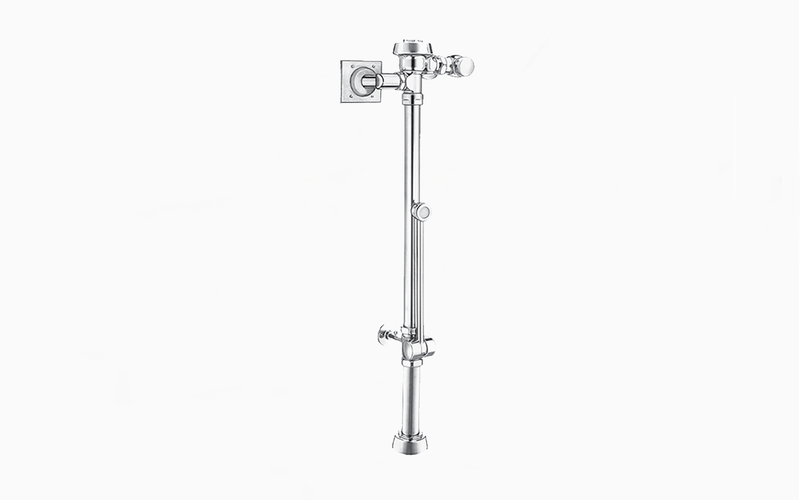

The Sloan Royal BPW 9000 is a manual diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.
Sloan ROYAL BPW 9000 exposed bedpan washer flushometer eliminates hose sprays, reduces bacteria risk and meets ADA and ASSE 1037 requirements.
Options on this configuration: Metal Button Fixture Wall Actuator (MBFW); V600AA; 24; 1/2. Sloan's own price-list description: ROYAL BPW 9000 MBFW V600AA 24 1/2.
Features
- Exposed water closet, diaphragm model, chrome-plated hydraulic actuated water closet Flushometer for floor-mounted or wall-hung top spud bowls
- Operates by means of a push button with an ADA-compliant, non-hold-open feature type actuator to ensure water conservation
- Presents a leaner, more aesthetic installation, reducing possible bacteria growth on hidden and hard-to-reach surfaces found on other bedpan washer units
- Eliminates the need for unsanitary hose sprays, as well as the additional housekeeping that hoses require and the potential for patient slippage
- Incorporates a patented one-piece construction body design, maintaining the spray arm in an upright position
- Valve body, stop body, diverter body and diverter pivot made from brass casting using semi-red brass for durability and long life
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- What kind of handle does this have?
- A Metal Button Fixture Wall Actuator handle, per Sloan's own spec for this model.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
-
Type: Flushometer
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Manual
-
MPN: Royal BPW 9000
-
Certifications: ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Exposed
-
Handle Style: Metal Button Fixture Wall Actuator
