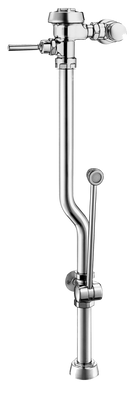

The Sloan ROYAL BPW 1000-1.28-CP-1-1/2-OFST is a manual diaphragm-type flush valve for a service sink. It delivers 1.28 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.
Exposed bedpan washer flushometer with semi-red brass construction, ASSE 1037 compliant, eliminating hose sprays for a cleaner facility.
Options on this configuration: 1-1/2" Offset (OFST). Sloan model number: ROYAL BPW 1000-1.28-CP-1-1/2-OFST.
Features
- 1.28 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, 1.5" Offset
- Exposed water closet, diaphragm model Flushometer is intended for floor-mounted or wall-hung top spud bowls
- Operates by means of a metal oscillating, non-hold-open handle with a triple seal handle packing to ensure water conservation
- Presents a leaner, more aesthetic installation, reducing possible bacteria growth on hidden and hard-to-reach surfaces found on other bedpan washer units
- Eliminates the need for unsanitary hose sprays, as well as the additional housekeeping that hoses require and the potential for patient slippage
- Valve body, stop body, diverter body and diverter pivot made from brass casting using semi-red brass for durability and long life
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a service sink, 1.28 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Outlet Size: 1-1/2"
-
Body Material: Semi-Red Brass
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Manual
-
MPN: ROYAL BPW 1000-1.28-CP-1-1/2-OFST
-
Certifications: ADA, Buy American Act, BABA, WaterSense, ASSE-1037
-
Fixture Served: Service Sink
-
Body Style: Exposed
-
Spud Connection: Top Spud
-
Rough-In (in): 34.375"
-
Volume per Flush (gal): 1.28
-
Dual Flush: No
-
Finish: Polished Chrome
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
