Specifications
Description

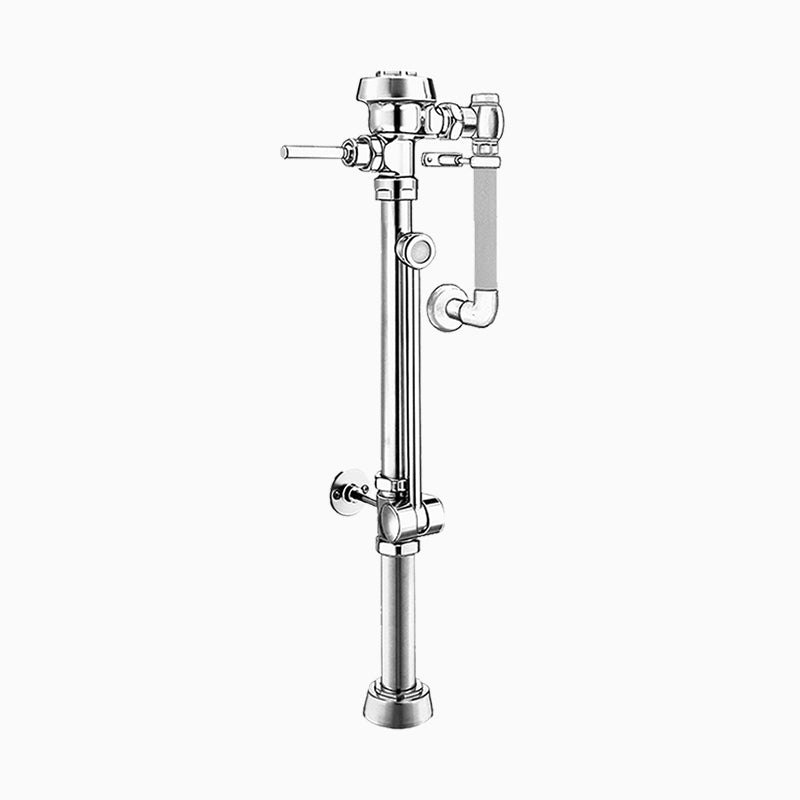

The Sloan ROYAL BPW 1110-1.6-CP-1-1/2-OFST is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.
Sloan Royal BPW 1110 exposed bedpan washer flushometer with PERMEX diaphragm, dual filtered bypass, and ASSE 1037 compliant semi-red brass construction.
Options on this configuration: 1-1/2" Offset (OFST); W/. Sloan model number: ROYAL BPW 1110-1.6-CP-1-1/2-OFST. Sloan's own price-list description: ROYAL BPW 1110-1.6 O W/1-1/2 OFFSET.
Features
- 1.6 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, 1.5" Offset
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- MPN: ROYAL BPW 1110-1.6-CP-1-1/2-OFST
- Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 26.5"
- Volume per Flush (gal): 1.6
- Dual Flush: No
- Finish: Polished Chrome
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | ROYAL BPW 1110 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Seat Material | PERMEX Synthetic Rubber Diaphragm |
| Operation | Manual | Options | 1-1/2" Offset (OFST), W/ |
| Fixture Served | Water Closet | Body style | Exposed |
| Coating | Polished Chrome | Cycle volume gal | 1.6 gal |
| Dual flush | No | Operating pressure min psi | 15 PSI |
| Rough in in | 26.5" | Spud connection | Top Spud |
Certifications & Standards
| ADA | Buy American Act |
| IAPMO | ASSE-1037 |
Compare with similar products
| Fixture Served | Water Closet
| Water Closet
|
| Series | ROYAL BPW 1110
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 1"
| 1"
|
| Outlet Size | 1-1/2"
| 1-1/2"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | ADA, Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | 1-1/2" Offset (OFST), W/
| No Control Stop (XD)
|
