Specifications
Description

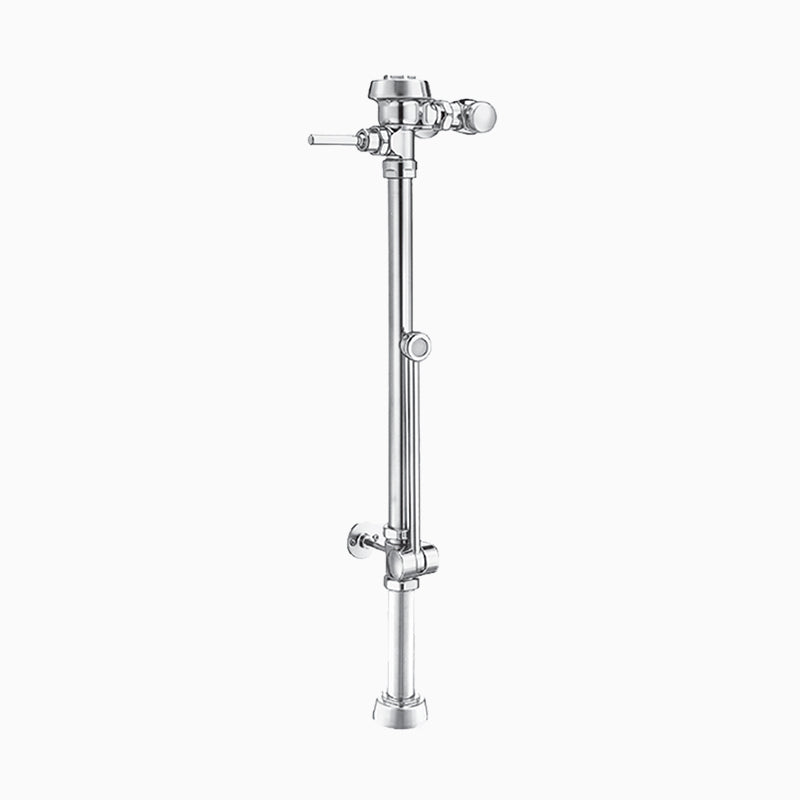

The Sloan Royal BPW 1000-1.6 is a manual diaphragm-type flush valve for a service sink. It delivers 1.6 gallons per flush, with an exposed body. It features a permex synthetic rubber diaphragm seat.
Exposed bedpan washer flushometer with semi-red brass construction, ASSE 1037 compliant, eliminating hose sprays for a cleaner facility.
Options on this configuration: Ground Joint Control Stop (GJ); W/H5; 2; IN. Sloan model number: Royal BPW 1000-1.6. Sloan's own price-list description: ROYAL BPW 1000-1.6 GJ W/H5 2 IN.
Features
- Exposed water closet, diaphragm model Flushometer is intended for floor-mounted or wall-hung top spud bowls
- Operates by means of a metal oscillating, non-hold-open handle with a triple seal handle packing to ensure water conservation
- Presents a leaner, more aesthetic installation, reducing possible bacteria growth on hidden and hard-to-reach surfaces found on other bedpan washer units
- Eliminates the need for unsanitary hose sprays, as well as the additional housekeeping that hoses require and the potential for patient slippage
- Valve body, stop body, diverter body and diverter pivot made from brass casting using semi-red brass for durability and long life
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a service sink, 1.6 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
- What control stop ships with this valve?
- Ground Joint, per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- Control Stop: Ground Joint
- MPN: Royal BPW 1000-1.6
- Certifications: ASSE-1037
- Fixture Served: Service Sink
- Body Style: Exposed
- Volume per Flush (gal): 1.6
Details
| Series | ROYAL BPW 1000 | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Manual |
| Options | Ground Joint Control Stop (GJ), W/H5, 2, IN | Shutoff | Ground Joint |
| Fixture Served | Service Sink | Body style | Exposed |
| Cycle volume gal | 1.6 gal | — | — |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Shutoff | Ground Joint
| None Included
|
| Fixture Served | Service Sink
| Water Closet
|
| Series | ROYAL BPW 1000
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | Ground Joint Control Stop (GJ), W/H5, 2, IN
| No Control Stop (XD)
|
