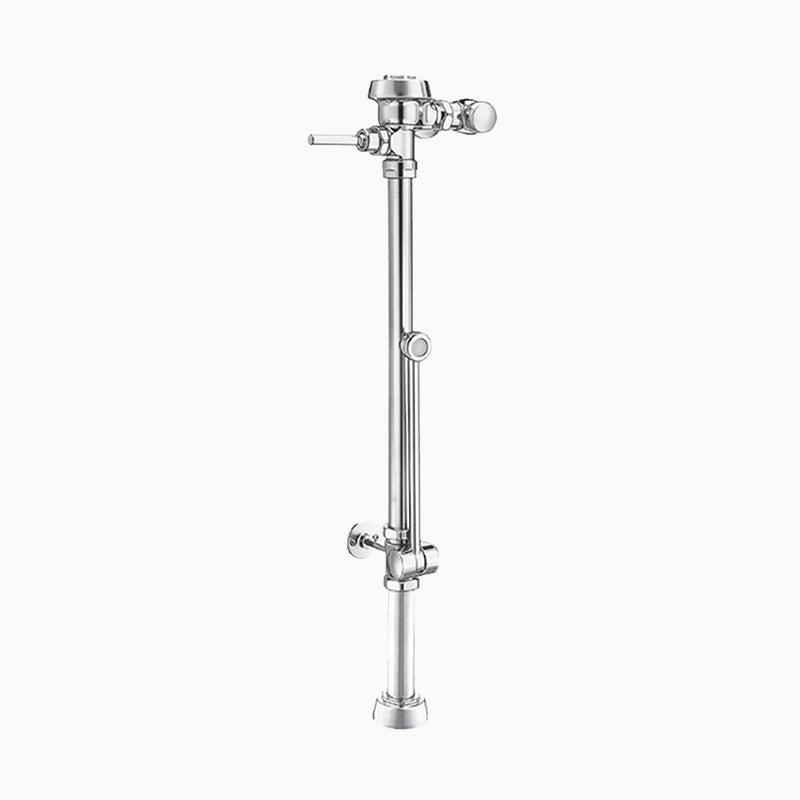

Sloan Royal BPW 1000-1.6 Exposed Manual Flushometer, 1.6 gpf, ESS (Hardwired Sensor)

The Sloan Royal BPW 1000-1.6 is a manual diaphragm-type flush valve for a service sink. It delivers 1.6 gallons per flush, with an exposed body. It features a permex synthetic rubber diaphragm seat.

Exposed bedpan washer flushometer with semi-red brass construction, ASSE 1037 compliant, eliminating hose sprays for a cleaner facility.

Features

• Exposed water closet, diaphragm model Flushometer is intended for floor-mounted or wall-hung top spud bowls
• Operates by means of a metal oscillating, non-hold-open handle with a triple seal handle packing to ensure water conservation
• Presents a leaner, more aesthetic installation, reducing possible bacteria growth on hidden and hard-to-reach surfaces found on other bedpan washer units
• Eliminates the need for unsanitary hose sprays, as well as the additional housekeeping that hoses require and the potential for patient slippage
• Valve body, stop body, diverter body and diverter pivot made from brass casting using semi-red brass for durability and long life
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a service sink, 1.6 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• MPN: Royal BPW 1000-1.6
• Certifications: ASSE-1037
• Fixture Served: Service Sink
• Body Style: Exposed
• Volume per Flush (gal): 1.6
