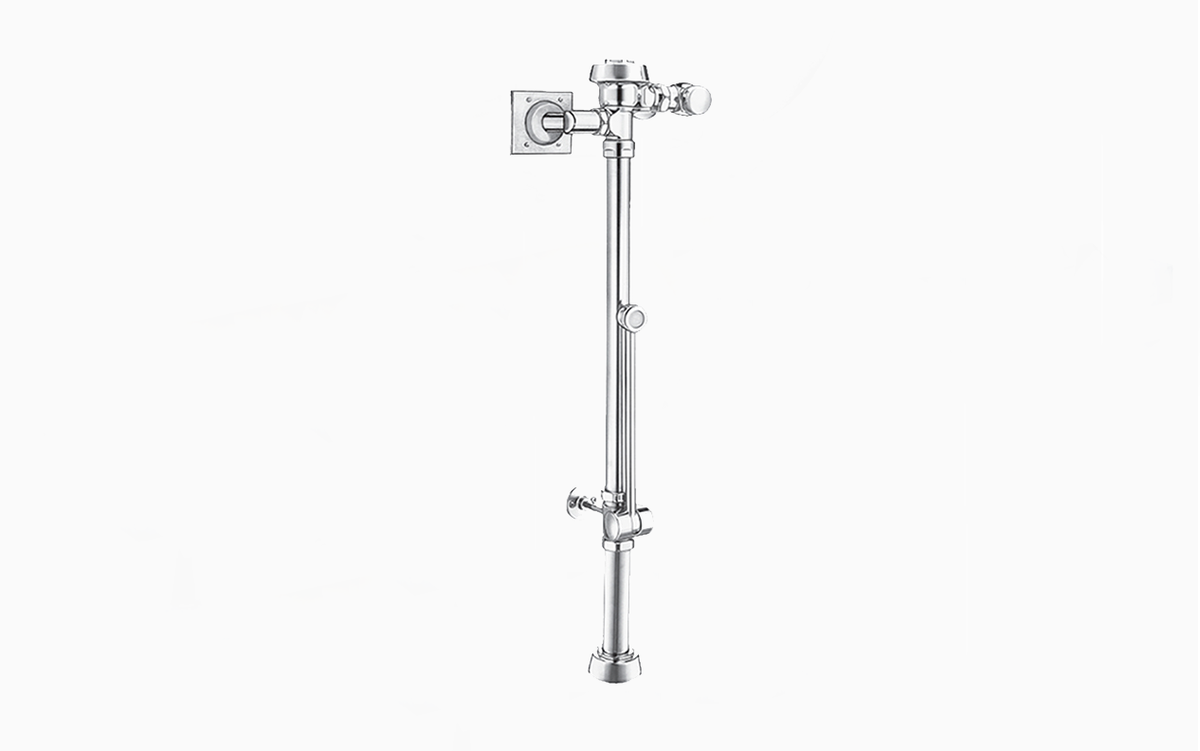

Sloan Royal BPW 9000-3.5 Exposed Manual Flushometer, 3.5 gpf, Top Spud, Polished Chrome, Fixture Wall Actuator

The Sloan ROYAL BPW 9000-3.5-CP-FW is a manual diaphragm-type flush valve for a water closet. It delivers 3.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Sloan ROYAL BPW 9000 exposed bedpan washer flushometer eliminates hose sprays, reduces bacteria risk and meets ADA and ASSE 1037 requirements.

Options on this configuration: Fixture Wall Actuator (FW). Sloan model number: ROYAL BPW 9000-3.5-CP-FW.

Features

• 3.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Fixture Wall Actuator Push Button
• Exposed water closet, diaphragm model, chrome-plated hydraulic actuated water closet Flushometer for floor-mounted or wall-hung top spud bowls
• Operates by means of a push button with an ADA-compliant, non-hold-open feature type actuator to ensure water conservation
• Presents a leaner, more aesthetic installation, reducing possible bacteria growth on hidden and hard-to-reach surfaces found on other bedpan washer units
• Eliminates the need for unsanitary hose sprays, as well as the additional housekeeping that hoses require and the potential for patient slippage
• Incorporates a patented one-piece construction body design, maintaining the spray arm in an upright position
• Valve body, stop body, diverter body and diverter pivot made from brass casting using semi-red brass for durability and long life
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 3.5 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

What kind of handle does this have?

A Fixture Wall Actuator handle, per Sloan's own spec for this model.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• MPN: ROYAL BPW 9000-3.5-CP-FW
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 26.5"
• Volume per Flush (gal): 3.5
• Dual Flush: No
• Finish: Polished Chrome
• Handle Style: Fixture Wall Actuator
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
