Specifications
Description

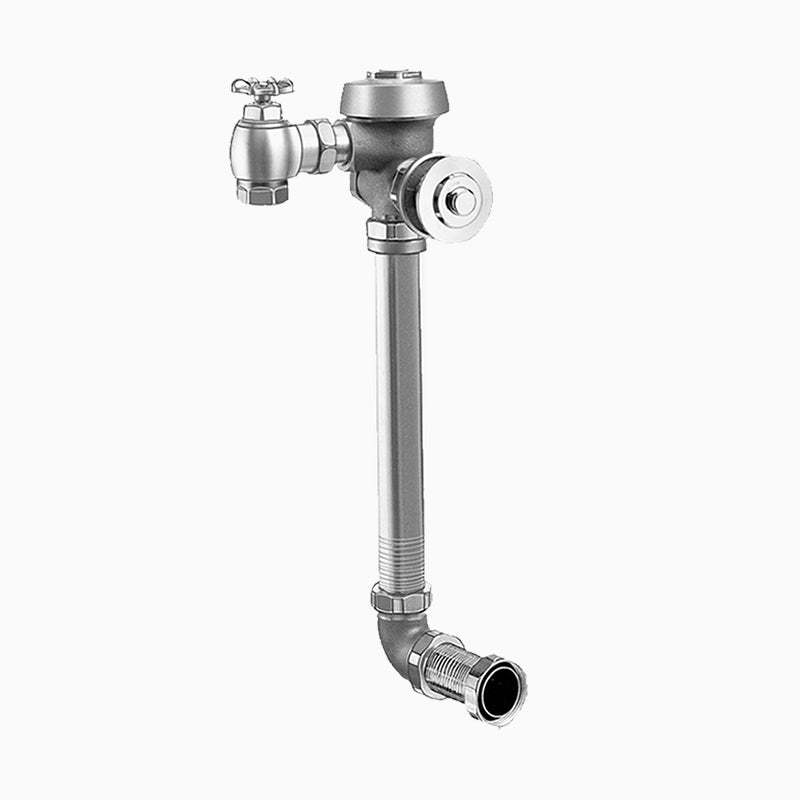

The Sloan Royal 152 is a manual diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.
Concealed manual water closet flushometer flushing as low as 1.28 gpf with CID technology, ADA handle, and dezincification-resistant brass castings.
Options on this configuration: 3-3/4" L Dimension (LDIM); 1" Straight Control Stop (E); W/30-1/2"; V500AA. Sloan's own price-list description: ROYAL 152 3-3/4 LDIM E W/30-1/2" V500AA.
Features
- Flush volumes start as low as 1.28 gpf/4.8 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Wall Box ready
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
- What control stop ships with this valve?
- 1" Straight, per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- Control Stop: 1" Straight
- MPN: Royal 152
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- L Dimension (in): 3-3/4"
- Vandal Resistant: Yes
Details
| Series | ROYAL 152 | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Manual |
| Options | 3-3/4" L Dimension (LDIM), 1" Straight Control Stop (E), W/30-1/2", V500AA | Shutoff | 1" Straight |
| Fixture Served | Water Closet | Body style | Concealed |
| L dimension in | 3-3/4" | Vandal resistant | Yes |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Shutoff | 1" Straight
| None Included
|
| Fixture Served | Water Closet
| Water Closet
|
| Series | ROYAL 152
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | 3-3/4" L Dimension (LDIM), 1" Straight Control Stop (E), W/30-1/2", V500AA
| No Control Stop (XD)
|
