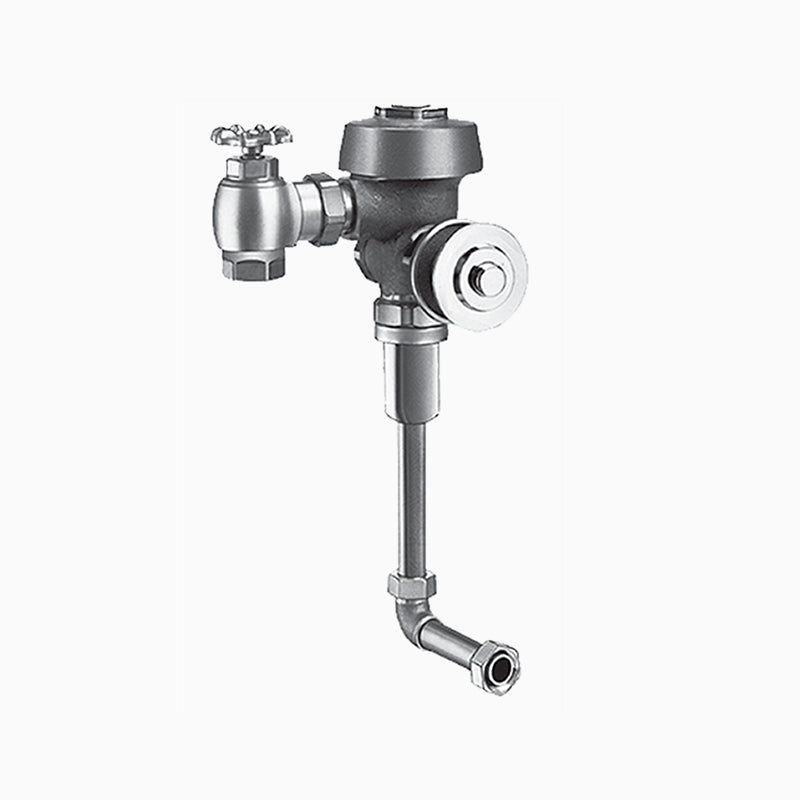

The Sloan Royal 613-0.125 is a manual diaphragm-type flush valve for a urinal. It delivers 0.125 gallons per flush, with a concealed body. It features a permex synthetic rubber diaphragm seat.
Sloan ROYAL 613 concealed push button urinal flushometer for demanding environments. ASSE 1037 compliant with PERMEX diaphragm.
Options on this configuration: 10-3/4" L Dimension (LDIM). Sloan model number: Royal 613-0.125.
Features
- Royal®, Regal® and Sloan® Prison Flushometers feature all the performance benefits of standard concealed, diaphragm model Flushometers with added durability to withstand rough environments
- Flush volumes as low as 0.5 gpf/1.9 Lpf meet water-efficiency goals
- Push button-activated Flushometers intended for use with stainless-steel urinal fixtures from various manufacturers
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- MPN: Royal 613-0.125
- Certifications: ASSE-1037
- Fixture Served: Urinal
- Body Style: Concealed
- L Dimension (in): 10-3/4"
- Volume per Flush (gal): 0.125
Details
| Series | ROYAL 613 | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Manual |
| Options | 10-3/4" L Dimension (LDIM) | Fixture Served | Urinal |
| Body style | Concealed | Cycle volume gal | 0.125 gal |
| L dimension in | 10-3/4" | — | — |
Certifications & Standards
| ASSE-1037 | — |
