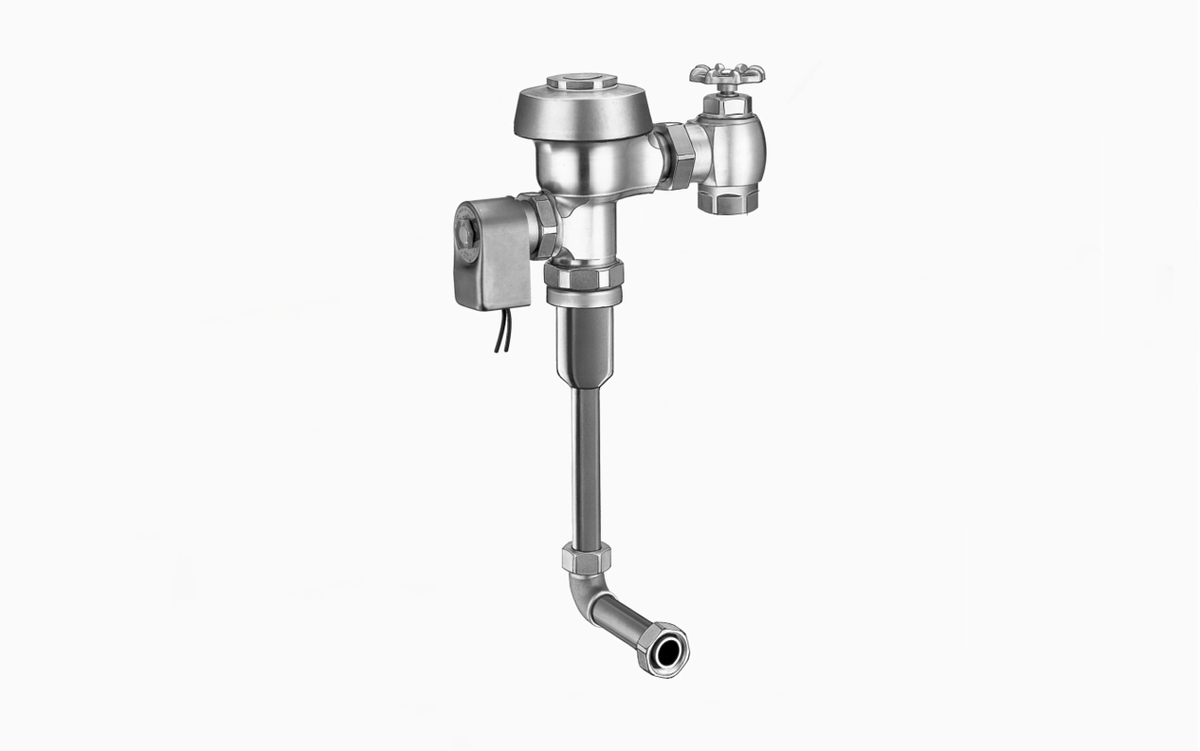

Sloan Royal 613 ES-0.25 Concealed Solenoid Flushometer, 0.25 gpf

The Sloan Royal 613-0.25 is a solenoid-operated diaphragm-type flush valve for a urinal. It delivers 0.25 gallons per flush, with a concealed body. It features a permex synthetic rubber diaphragm seat.

Options on this configuration: 24V Power (24V); 2954; 922; 000. Sloan model number: Royal 613-0.25. Sloan's own price-list description: ROYAL 613-0.25 ES 24V (2954-922-000).

Features

• Royal®, Regal® and Sloan® Prison Flushometers feature all the performance benefits of standard concealed, diaphragm model Flushometers with added durability to withstand rough environments
• Flush volumes as low as 0.5 gpf/1.9 Lpf meet water-efficiency goals
• Push button-activated Flushometers intended for use with stainless-steel urinal fixtures from various manufacturers
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.25 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

How is it powered, and what happens in a power outage?

Hardwired -- no battery to replace, but an electrician must run power to it.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Solenoid
• MPN: Royal 613-0.25
• Certifications: ASSE-1037
• Fixture Served: Urinal
• Body Style: Concealed
• Volume per Flush (gal): 0.25
• Power Source: Hardwired AC
• Power Supply Detail: 24V
