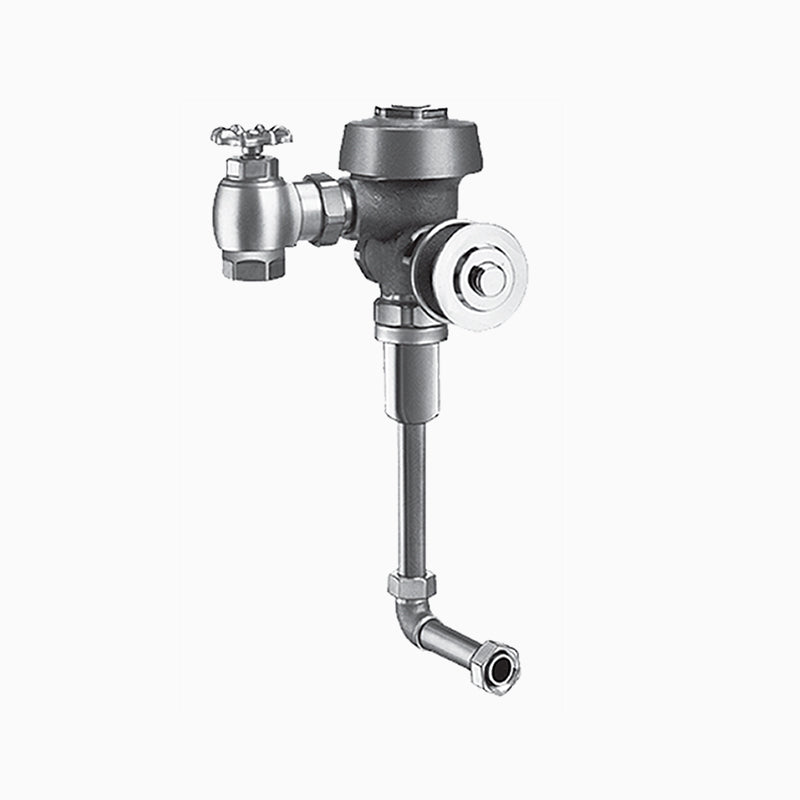

Sloan Royal 613-1.5 Concealed Manual Flushometer, 1.5 gpf, Top Spud, Unfinished (Rough Brass), 3-3/4" LDIM, 3" Metal Oscillating Handle, Wall Box Version

The Sloan ROYAL 613-1.5-RB-WB-3-3/4-LDIM-L3 is a manual diaphragm-type flush valve for a urinal. It delivers 1.5 gallons per flush, with a top spud connection at a concealed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Sloan ROYAL 613 concealed push button urinal flushometer for demanding environments. ASSE 1037 compliant with PERMEX diaphragm.

Options on this configuration: 3-3/4" L Dimension (LDIM); 3" Metal Oscillating Handle (L3); Wall Box Version (WB). Sloan model number: ROYAL 613-1.5-RB-WB-3-3/4-LDIM-L3.

Features

• 1.5 gpf, Rough Brass Finish, Fixture Connection Top Spud, Single Flush, 3.75" L Dimension, 3" Metal Oscillating Push Button, Standard size (WB-1-A wall box not included- order separately) Wall Box
• Royal®, Regal® and Sloan® Prison Flushometers feature all the performance benefits of standard concealed, diaphragm model Flushometers with added durability to withstand rough environments
• Flush volumes as low as 0.5 gpf/1.9 Lpf meet water-efficiency goals
• Push button-activated Flushometers intended for use with stainless-steel urinal fixtures from various manufacturers
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 1.5 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible. A standard wall box is required but not included -- order it separately.

What kind of handle does this have?

A 3" Metal Oscillating handle, per Sloan's own spec for this model.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• Country of Origin: USA
• MPN: ROYAL 613-1.5-RB-WB-3-3/4-LDIM-L3
• Certifications: Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Concealed
• Spud Connection: Top Spud
• Rough-In (in): 13.5"
• L Dimension (in): 3-3/4"
• Volume per Flush (gal): 1.5
• Dual Flush: No
• Finish: Unfinished (Rough Brass)
• Handle Style: 3" Metal Oscillating
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Wall Box Type: Standard (Order Separately)
