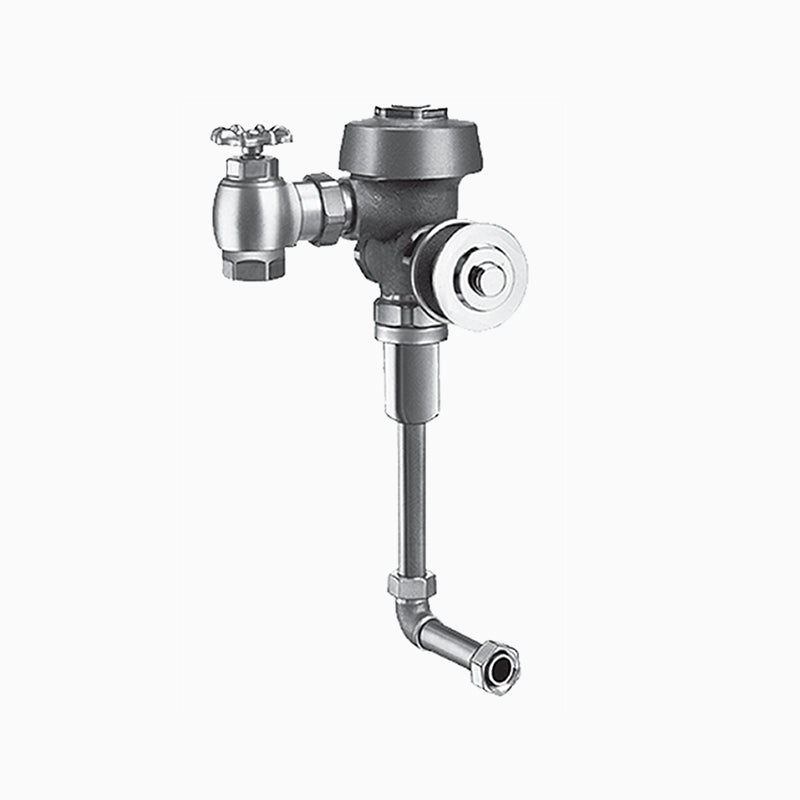

The Sloan Royal 613 is a manual diaphragm-type flush valve for a urinal. It features a permex synthetic rubber diaphragm seat.
Sloan ROYAL 613 concealed push button urinal flushometer for demanding environments. ASSE 1037 compliant with PERMEX diaphragm.
Options on this configuration: 8-3/4" L Dimension (LDIM); 3" Metal Oscillating Handle (L3); RM; 50183. Sloan's own price-list description: ROYAL 613 8 3/4 LDIM L3 RM 50183.
Features
- Royal®, Regal® and Sloan® Prison Flushometers feature all the performance benefits of standard concealed, diaphragm model Flushometers with added durability to withstand rough environments
- Flush volumes as low as 0.5 gpf/1.9 Lpf meet water-efficiency goals
- Push button-activated Flushometers intended for use with stainless-steel urinal fixtures from various manufacturers
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- What kind of handle does this have?
- A 3" Metal Oscillating handle, per Sloan's own spec for this model.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- MPN: Royal 613
- Certifications: ASSE-1037
- Fixture Served: Urinal
- Body Style: Concealed
- L Dimension (in): 8-3/4"
- Handle Style: 3" Metal Oscillating
Details
| Series | ROYAL 613 | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Manual |
| Options | 8-3/4" L Dimension (LDIM), 3" Metal Oscillating Handle (L3), RM, 50183 | Fixture Served | Urinal |
| Body style | Concealed | Handle style | 3" Metal Oscillating |
| L dimension in | 8-3/4" | — | — |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Urinal
| Water Closet
|
| Series | ROYAL 613
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | 8-3/4" L Dimension (LDIM), 3" Metal Oscillating Handle (L3), RM, 50183
| No Control Stop (XD)
|
