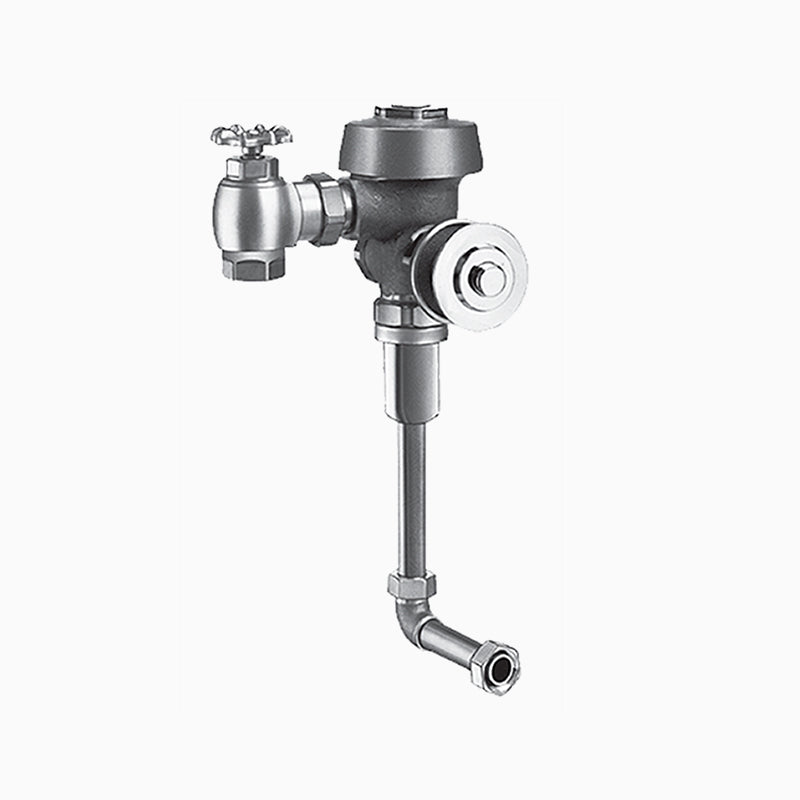

Sloan Royal 613-0.5 Concealed Manual Flushometer, 0.5 gpf, Top Spud, Unfinished (Rough Brass), Less Push Button, less C9A

The Sloan ROYAL 613-0.5-RB-L/C9A is a manual diaphragm-type flush valve for a urinal. It delivers 0.5 gallons per flush, with a top spud connection at a concealed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Sloan ROYAL 613 concealed push button urinal flushometer for demanding environments. ASSE 1037 compliant with PERMEX diaphragm.

Options on this configuration: Less Push Button (L/C9A); LESS; C9A. Sloan model number: ROYAL 613-0.5-RB-L/C9A. Sloan's own price-list description: ROYAL 613-0.5 LESS C9A.

Features

• 0.5 gpf, Rough Brass Finish, Fixture Connection Top Spud, Single Flush, Less Push Button
• Royal®, Regal® and Sloan® Prison Flushometers feature all the performance benefits of standard concealed, diaphragm model Flushometers with added durability to withstand rough environments
• Flush volumes as low as 0.5 gpf/1.9 Lpf meet water-efficiency goals
• Push button-activated Flushometers intended for use with stainless-steel urinal fixtures from various manufacturers
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.5 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

What kind of handle does this have?

A Less Push Button handle, per Sloan's own spec for this model.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as WaterSense and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• Country of Origin: USA
• MPN: ROYAL 613-0.5-RB-L/C9A
• Certifications: Buy American Act, IAPMO, WaterSense, ASSE-1037
• Fixture Served: Urinal
• Body Style: Concealed
• Spud Connection: Top Spud
• Rough-In (in): 13.5"
• Volume per Flush (gal): 0.5
• Dual Flush: No
• Finish: Unfinished (Rough Brass)
• Handle Style: Less Push Button
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
