Description

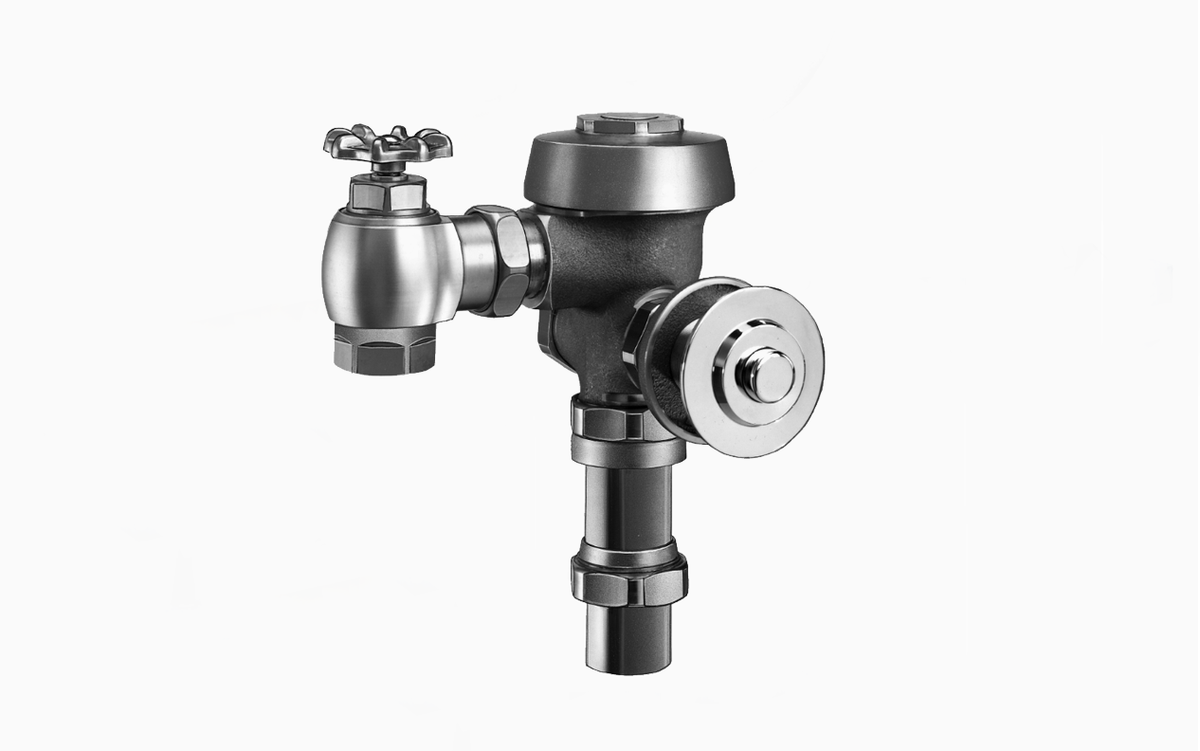

The Sloan Royal 650 is a manual diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.
Sloan ROYAL 650 concealed manual flushometer features a PERMEX diaphragm with dual filtered bypass and ASSE 1037 compliant semi-red brass construction.
Options on this configuration: 10-3/4" L Dimension (LDIM); Less Control Stop (order separately) (L/STOP).
Features
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
- What control stop ships with this valve?
- None (Order Separately), per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- Control Stop: None (Order Separately)
- MPN: Royal 650
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- L Dimension (in): 10-3/4"
Product Information
| SKU | UPC | Spec Sheet |
|---|---|---|
| 3918997 | 671254388345 | Download |
Details
| Series | ROYAL 650 | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Manual |
| Options | 10-3/4" L Dimension (LDIM), Less Control Stop (order separately) (L/STOP) | Shutoff | None (Order Separately) |
| Fixture Served | Water Closet | Body style | Concealed |
| L dimension in | 10-3/4" | — | — |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Shutoff | None (Order Separately)
| None Included
|
| Fixture Served | Water Closet
| Water Closet
|
| Series | ROYAL 650
| SLOAN 112
|
| Spec Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | 10-3/4" L Dimension (LDIM), Less Control Stop (order separately) (L/STOP)
| No Control Stop (XD)
|
