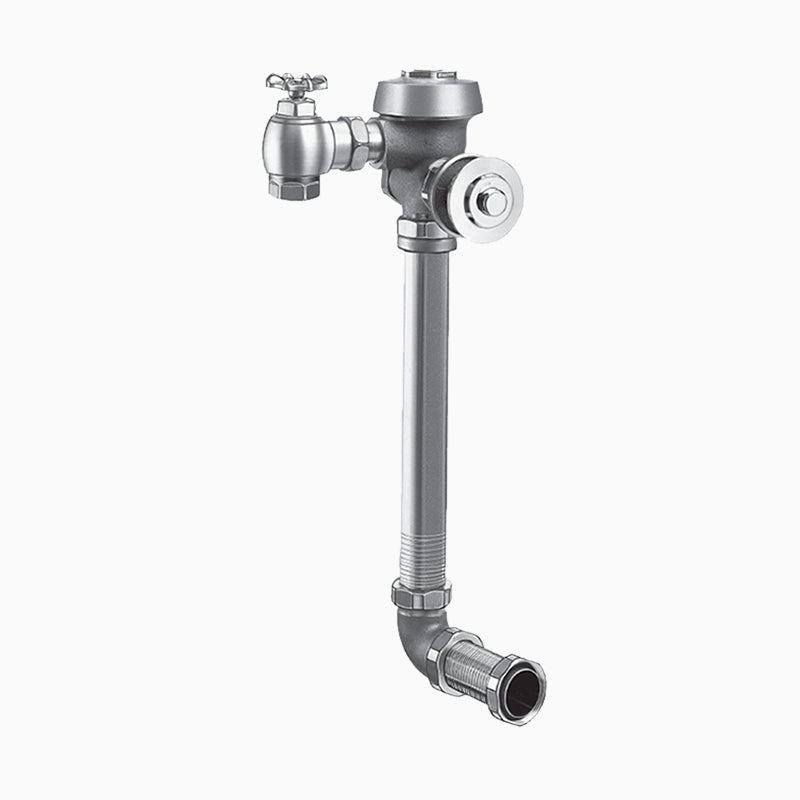

The Sloan Royal 611-1.6 is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a concealed body. It features a high-chloramine-resistant permex diaphragm seat.
Vandal-proof concealed flushometer built for secure and rough-use facilities. PERMEX diaphragm, and chloramine-resistant internals.
Options on this configuration: 8-3/4" L Dimension (LDIM); Anti-Flood Device Flush Connection (AFD); RM50558. Sloan model number: Royal 611-1.6. Sloan's own price-list description: ROYAL 611-1.6 8 3/4 LDIM AFD RM50558.
Features
- Royal® and Regal® Prison Flushometers feature all the performance benefits of standard concealed, diaphragm model Flushometers with added durability to withstand rough environments
- Various flush volumes available to match with existing fixtures and meet water-efficiency goals
- Choose from Flushometers intended for use with stainless-steel water closet fixtures from Acorn®, Metcraft® and other manufacturers
- Diaphragm, handle packing, stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
- Vandal-proof, push-button operation designed with non-hold-open feature to keep fixture from surpassing intended water consumption
- Adjustable tailpiece accommodates various installation heights
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
-
Type: Flushometer
-
Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
-
Operation: Manual
-
MPN: Royal 611-1.6
-
Certifications: ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Concealed
-
L Dimension (in): 8-3/4"
-
Volume per Flush (gal): 1.6
-
Vandal Resistant: Yes
