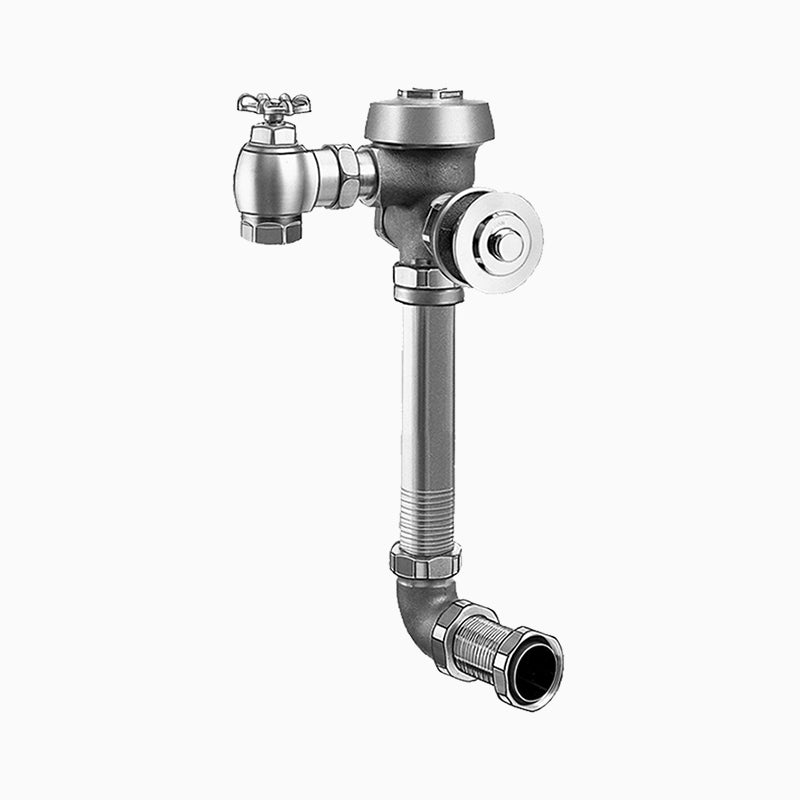

The Sloan ROYAL 609-3.5-GJ-RB-8-3/4-LDIM is a manual diaphragm-type flush valve for a urinal. It delivers 3.5 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.
Sloan ROYAL 609 concealed manual urinal flushometer with dual filtered bypass PERMEX diaphragm, and ASSE 1037 compliant semi-red brass construction.
Options on this configuration: 8-3/4" L Dimension (LDIM); Ground Joint Control Stop (GJ). Sloan model number: ROYAL 609-3.5-GJ-RB-8-3/4-LDIM.
Features
- 3.5 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, Ground Joint Control Stop, 8.75" L Dimension
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 3.5 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
- What control stop ships with this valve?
- Ground Joint, per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- Control Stop: Ground Joint
- Country of Origin: USA
- MPN: ROYAL 609-3.5-GJ-RB-8-3/4-LDIM
- Certifications: Buy American Act, IAPMO, ASSE-1037
- Fixture Served: Urinal
- Body Style: Concealed
- Spud Connection: Rear Spud
- Rough-In (in): 14.5"
- L Dimension (in): 8-3/4"
- Volume per Flush (gal): 3.5
- Dual Flush: No
- Finish: Unfinished (Rough Brass)
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Product Information
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | ROYAL 609 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Seat Material | PERMEX Synthetic Rubber Diaphragm |
| Operation | Manual | Options | 8-3/4" L Dimension (LDIM), Ground Joint Control Stop (GJ) |
| Shutoff | Ground Joint | Fixture Served | Urinal |
| Body style | Concealed | Coating | Unfinished (Rough Brass) |
| Cycle volume gal | 3.5 gal | Dual flush | No |
| L dimension in | 8-3/4" | Operating pressure min psi | 15 PSI |
| Rough in in | 14.5" | Spud connection | Rear Spud |
Certifications & Standards
| Buy American Act | IAPMO |
| ASSE-1037 | — |
