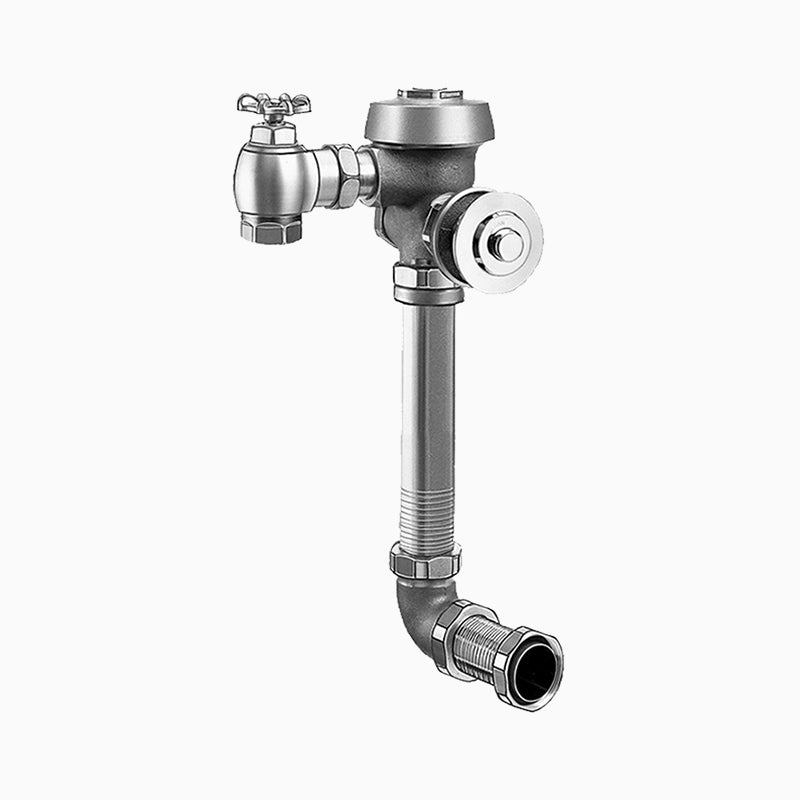

The Sloan Royal 609-1.5 is a manual diaphragm-type flush valve for a urinal. It delivers 1.5 gallons per flush, with a concealed body. It features a permex synthetic rubber diaphragm seat.
Sloan ROYAL 609 concealed manual urinal flushometer with dual filtered bypass PERMEX diaphragm, and ASSE 1037 compliant semi-red brass construction.
Features
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 1.5 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
-
Type: Flushometer
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Manual
-
MPN: Royal 609-1.5
-
Certifications: ASSE-1037
-
Fixture Served: Urinal
-
Body Style: Concealed
-
Volume per Flush (gal): 1.5
