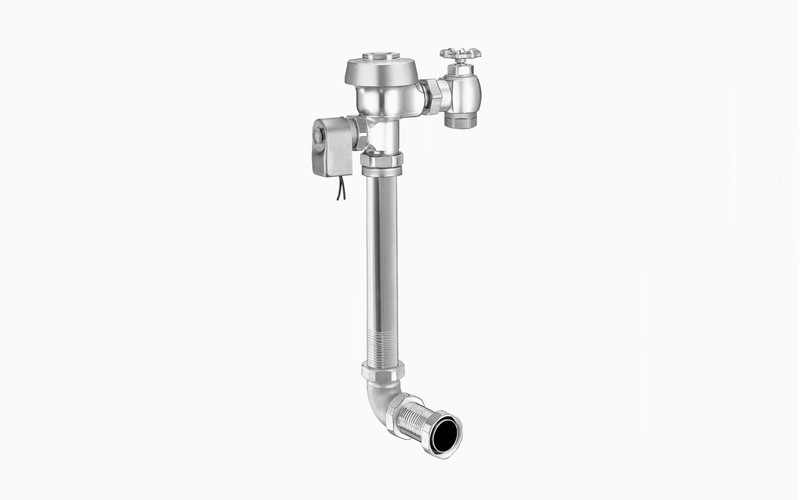

The Sloan Royal 609 is a solenoid-operated diaphragm-type flush valve for a urinal. It features a permex synthetic rubber diaphragm seat.
Options on this configuration: 24V Power (24V); RM; 50593. Sloan model number: Royal 609. Sloan's own price-list description: ROYAL 609 ES 24V RM 50593.
Features
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
-
Type: Flushometer
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Solenoid
-
MPN: Royal 609
-
Certifications: ASSE-1037
-
Fixture Served: Urinal
-
Body Style: Concealed
-
Power Source: Hardwired AC
-
Power Supply Detail: 24V
