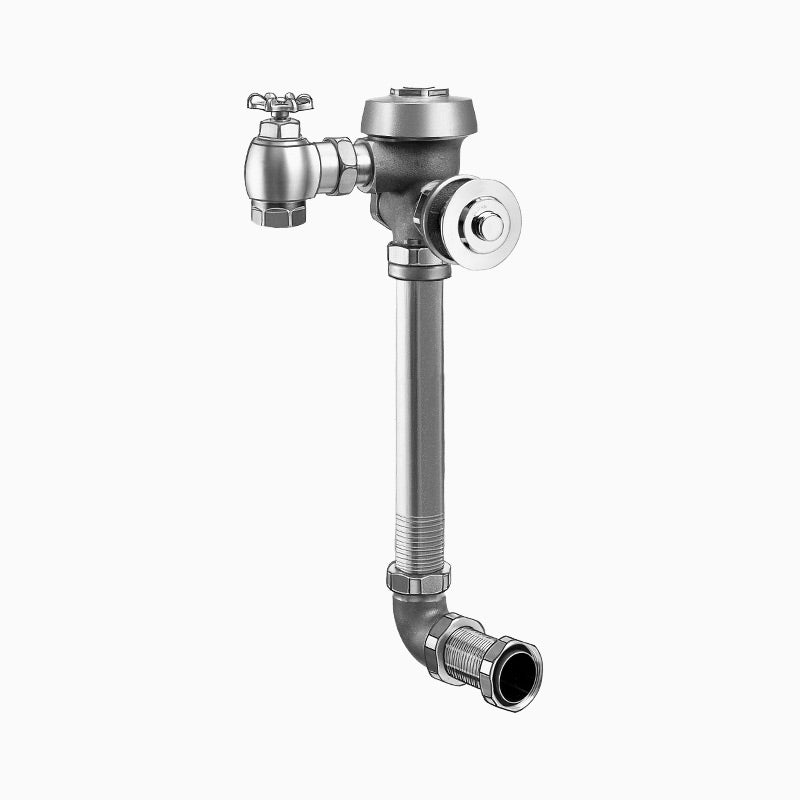

Sloan Royal 601-3.5 Concealed Manual Flushometer, 3.5 gpf, Rear Spud, Unfinished (Rough Brass), 16-3/4" LDIM, 3" Metal Oscillating Handle

Roll over image to zoom in

Sloan Royal 601-3.5 Concealed Manual Flushometer, 3.5 gpf, Rear Spud, Unfinished (Rough Brass), 16-3/4" LDIM, 3" Metal Oscillating Handle

Name: Sloan Royal 601-3.5 Concealed Manual Flushometer, 3.5 gpf, Rear Spud, Unfinished (Rough Brass), 16-3/4" LDIM, 3" Metal Oscillating Handle
Brand: Sloan
SKU: 3918195
Price: 369.86 USD
Availability: InStock

Save $175.19

SloanSKU: 3918195

Call an expert

713-224-1643

Chat Call

Questions? Call (713) 224-1643

The Sloan ROYAL 601-3.5-RB-16-3/4-LDIM-L3 is a manual diaphragm-type flush valve for a water closet. It delivers 3.5 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Sloan ROYAL 601 concealed manual flushometer features a PERMEX diaphragm with dual filtered bypass and ASSE 1037 compliant semi-red brass construction.

Options on this configuration: 16-3/4" L Dimension (LDIM); 3" Metal Oscillating Handle (L3). Sloan model number: ROYAL 601-3.5-RB-16-3/4-LDIM-L3.

Features

3.5 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, 16.75" L Dimension, 3" Metal Oscillating Push Button
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?: Per Sloan's own spec, it serves a water closet, 3.5 gallons per flush, a rear spud connection.
Is this exposed or concealed, and does it need a wall box?: Concealed -- the body sits behind the wall, with only the cover or trim visible.
What kind of handle does this have?: A 3" Metal Oscillating handle, per Sloan's own spec for this model.
Is this ADA, WaterSense, or ASSE 1037 listed?: Yes -- Sloan lists it as ASSE-1037.

Specifications

Type: Flushometer
Inlet Size: 1"
Outlet Size: 1-1/2"
Body Material: Semi-Red Brass
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
Operation: Manual
Country of Origin: USA
MPN: ROYAL 601-3.5-RB-16-3/4-LDIM-L3
Certifications: Buy American Act, IAPMO, ASSE-1037
Fixture Served: Water Closet
Body Style: Concealed
Spud Connection: Rear Spud
Rough-In (in): 20.5"
L Dimension (in): 16-3/4"
Volume per Flush (gal): 3.5
Dual Flush: No
Finish: Unfinished (Rough Brass)
Handle Style: 3" Metal Oscillating
Min Operating Pressure (PSI): 15
Max Operating Pressure (PSI): 80
