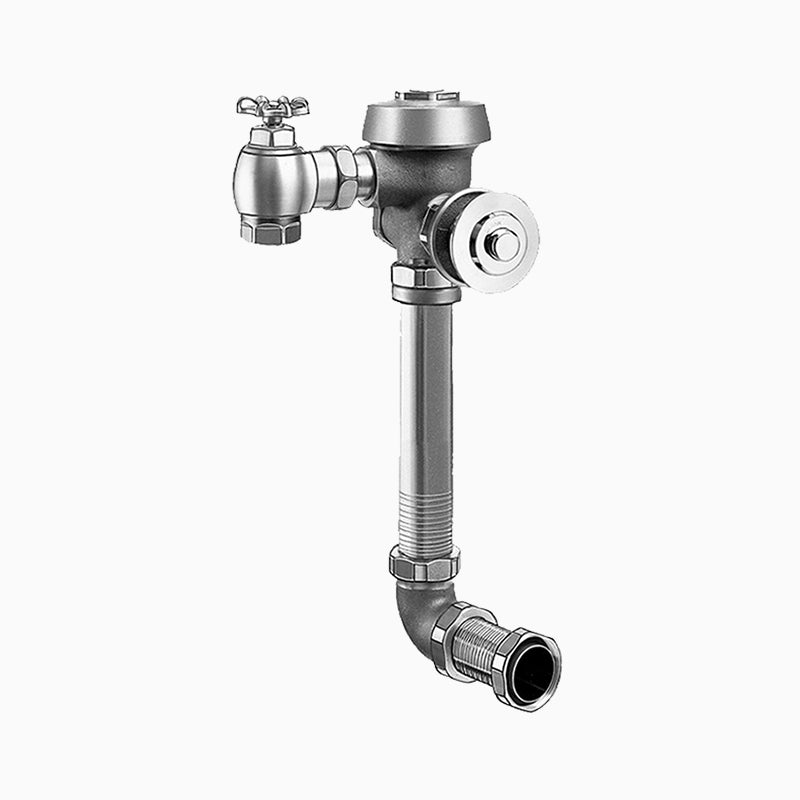

Sloan Royal 603 Concealed Manual Flushometer, 10-3/4" LDIM, Front of Valve Handle, 1" Straight Control Stop, Option B with H5 3

The Sloan Royal 603 is a manual diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.

Sloan ROYAL 603 concealed manual flushometer built for rough environments. PERMEX diaphragm, semi-red brass body, ASSE 1037 compliant.

Options on this configuration: 10-3/4" L Dimension (LDIM); Front of Valve Handle (H); 1" Straight Control Stop (E); B; W/H5; 3. Sloan's own price-list description: ROYAL 603 10 3/4 LDIM B E H W/H5 3.

Features

• Royal®, Regal® and Sloan® Prison Flushometers feature all the performance benefits of standard concealed, diaphragm model Flushometers with added durability to withstand rough environments
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

What control stop ships with this valve?

1" Straight, per Sloan's own spec for this model.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• Control Stop: 1" Straight
• MPN: Royal 603
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• L Dimension (in): 10-3/4"
