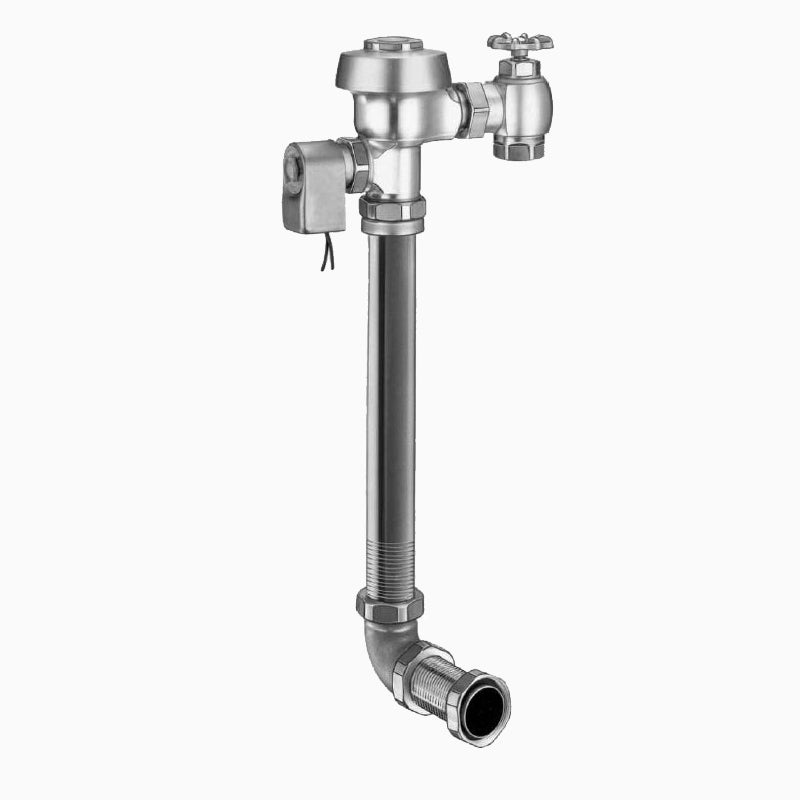

The Sloan Royal 603 is a solenoid-operated diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.
Options on this configuration: Anti-Flood Device Flush Connection (AFD); 24V Power (24V); RM50637. Sloan model number: Royal 603. Sloan's own price-list description: ROYAL 603 AFD ESM 24V RM50637.
Features
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Solenoid
- MPN: Royal 603
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- Power Source: Hardwired AC
- Power Supply Detail: 24V
Details
| Series | ROYAL 603 ES | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Solenoid |
| Options | Anti-Flood Device Flush Connection (AFD), 24V Power (24V), RM50637 | Fixture Served | Water Closet |
| Body style | Concealed | Power source | Hardwired AC |
| Power supply detail | 24V | — | — |
Certifications & Standards
| ASSE-1037 | — |
