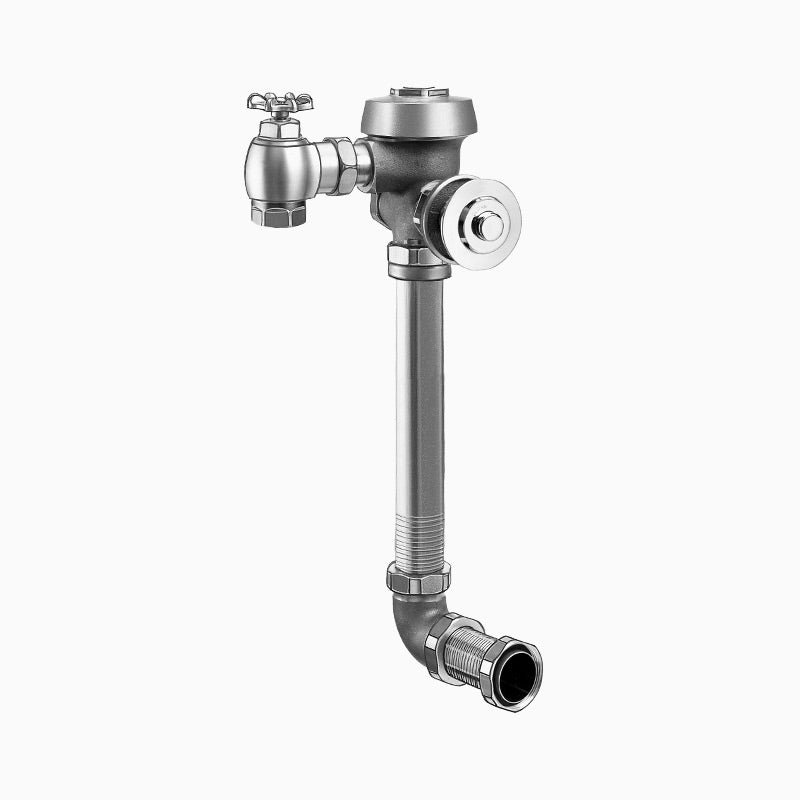

Sloan Royal 601 Concealed Manual Flushometer, 10-3/4" LDIM, RM50598

The Sloan Royal 601 is a manual diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.

Sloan ROYAL 601 concealed manual flushometer features a PERMEX diaphragm with dual filtered bypass and ASSE 1037 compliant semi-red brass construction.

Options on this configuration: 10-3/4" L Dimension (LDIM); RM50598. Sloan's own price-list description: ROYAL 601 10 3/4 LDIM RM50598.

Features

• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• MPN: Royal 601
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• L Dimension (in): 10-3/4"
