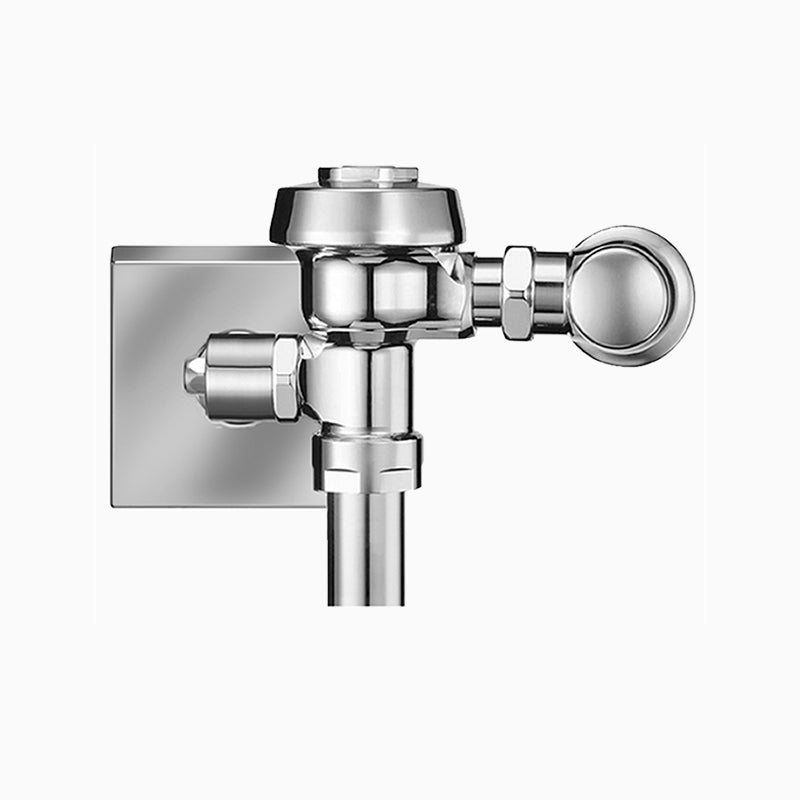

Sloan Royal 842-3.5 Concealed Solenoid Flushometer, 3.5 gpf, Top Spud, Polished Chrome, 24V

The Sloan ROYAL 842-3.5-CP-HW-24V is a solenoid-operated diaphragm-type flush valve for a water closet. It delivers 3.5 gallons per flush, with a top spud connection at a concealed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Options on this configuration: 24V Power (24V); Hardwired (HW). Sloan model number: ROYAL 842-3.5-CP-HW-24V.

Features

• 3.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Hardwired, 24V
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 3.5 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

How is it powered, and what happens in a power outage?

Hardwired -- no battery to replace, but an electrician must run power to it.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Solenoid
• MPN: ROYAL 842-3.5-CP-HW-24V
• Certifications: ADA, Buy American Act, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• Spud Connection: Top Spud
• Volume per Flush (gal): 3.5
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Hardwired AC
• Power Supply Detail: 24V
