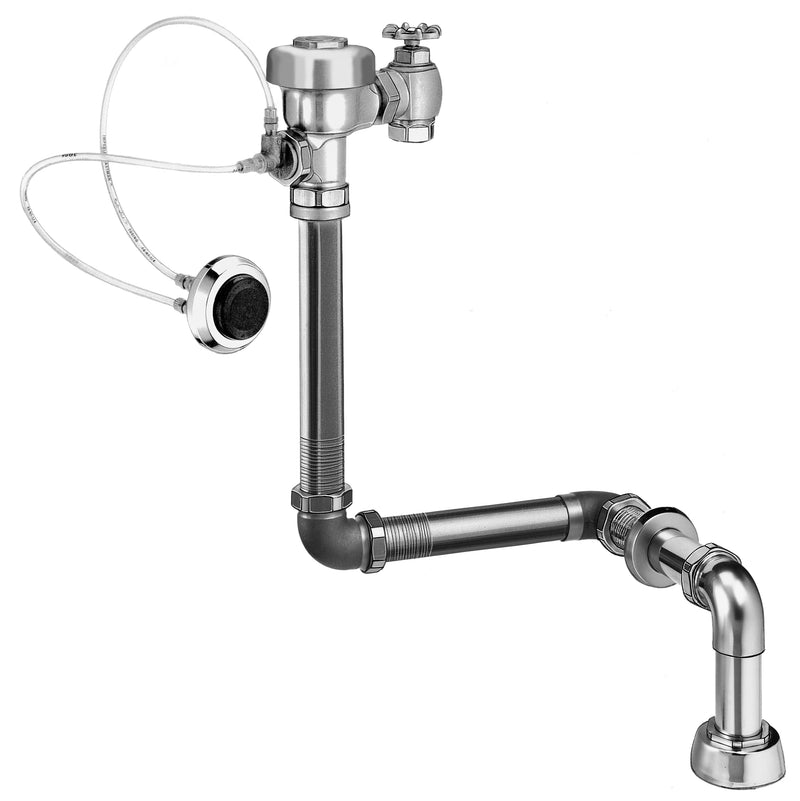

Sloan Royal 942-1.28 Concealed Manual Flushometer, 1.28 gpf

The Sloan Royal 942-1.28 is a manual diaphragm-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a concealed body. It features a permex synthetic rubber diaphragm seat.

Sloan ROYAL 942 concealed manual flushometer with PERMEX diaphragm, dual filtered bypass, and semi-red brass construction. ASSE 1037 compliant.

Options on this configuration: Metal Button Panel Mount Handle (MBPM); 3/4; NOR. Sloan model number: Royal 942-1.28. Sloan's own price-list description: ROYAL 942-1.28 2-10 3/4 MBPM NOR.

Features

• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

What kind of handle does this have?

A Metal Button Panel Mount handle, per Sloan's own spec for this model.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• MPN: Royal 942-1.28
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• Volume per Flush (gal): 1.28
• Handle Style: Metal Button Panel Mount
