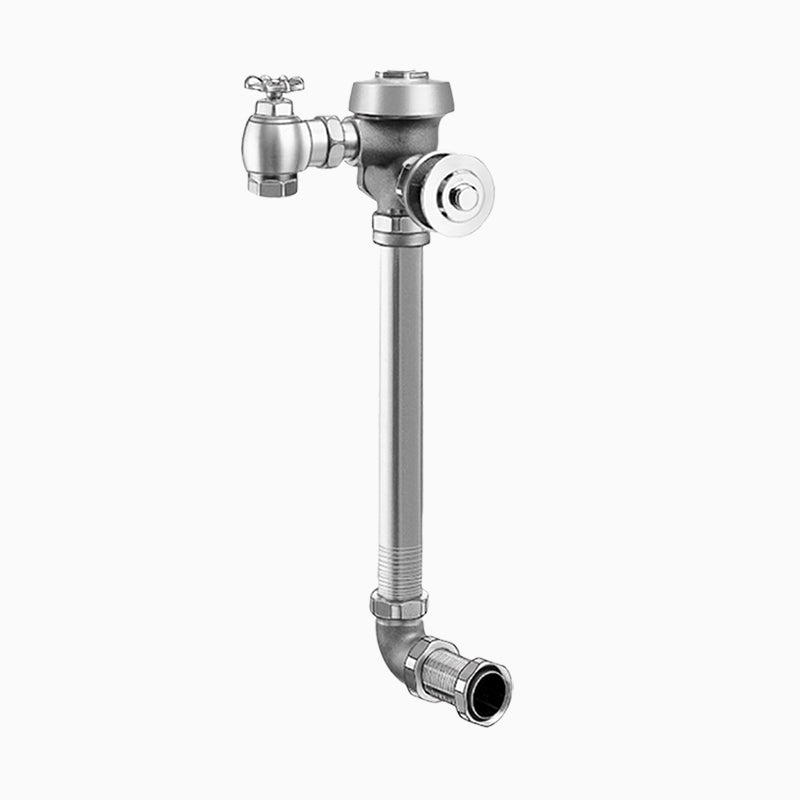

Sloan Royal 681 Concealed Manual Flushometer, 14-3/4" LDIM, 26 1/2

The Sloan Royal 681 is a manual diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.

Sloan ROYAL 681 concealed manual water closet flushometer. PERMEX diaphragm, semi-red brass body, ASSE 1037 compliant. BAA compliant and Made in the USA.

Options on this configuration: 14-3/4" L Dimension (LDIM); 26; 1/2. Sloan's own price-list description: ROYAL 681 14 3/4 LDIM V500AA 26 1/2.

Features

• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• MPN: Royal 681
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• L Dimension (in): 14-3/4"
