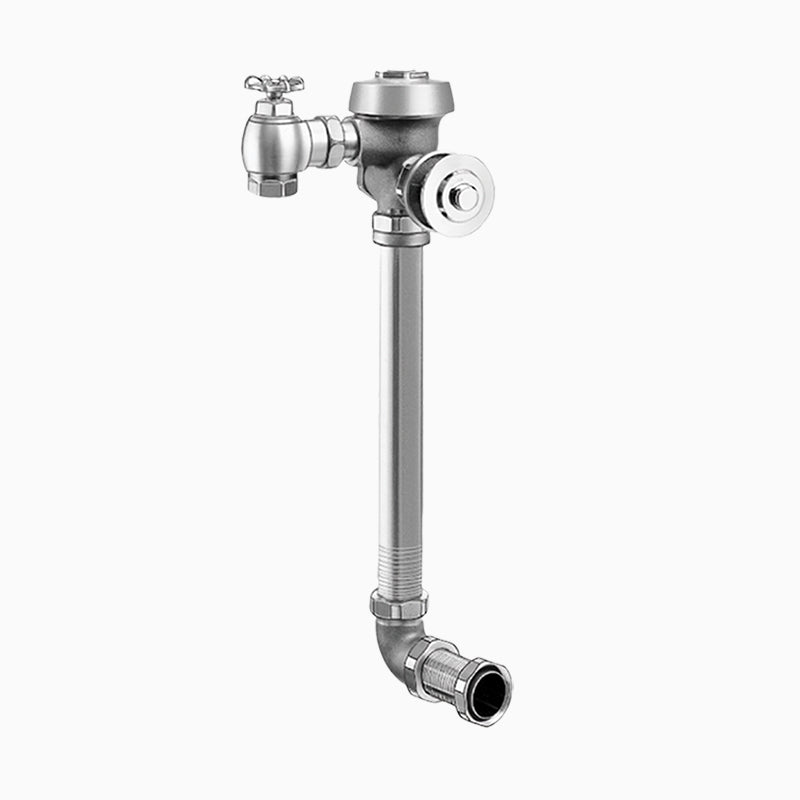

Sloan Royal 681-1.28 Concealed Manual Flushometer, 1.28 gpf, Acorn 902

The Sloan Royal 681-1.28 is a manual diaphragm-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a concealed body. It features a permex synthetic rubber diaphragm seat.

Sloan ROYAL 681 concealed manual water closet flushometer. PERMEX diaphragm, semi-red brass body, ASSE 1037 compliant. BAA compliant and Made in the USA.

Options on this configuration: Less Push Button (L/C9A); ACORN; 2954; 902; 000. Sloan model number: Royal 681-1.28. Sloan's own price-list description: ROYAL 681-1.28 L/C9A ACORN 2954-902-000.

Features

• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

What kind of handle does this have?

A Less Push Button handle, per Sloan's own spec for this model.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• MPN: Royal 681-1.28
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• Volume per Flush (gal): 1.28
• Handle Style: Less Push Button
