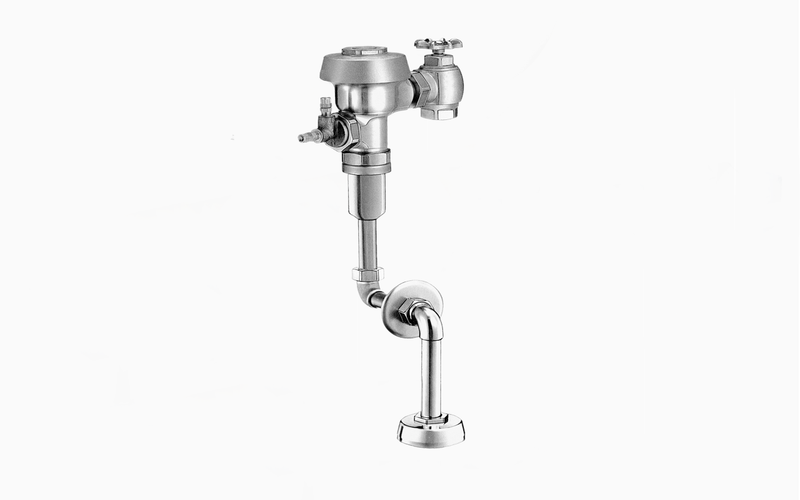

The Sloan ROYAL 997-1.5-L/STOP-RB is a manual diaphragm-type flush valve for a urinal. It delivers 1.5 gallons per flush, with a top spud connection at a concealed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.
Concealed urinal flushometer with remotely positioned push-button actuators, ADA compliant, and ASSE 1037 rated.
Options on this configuration: 2"-10-3/4" L Dimension (LDIM); Less Control Stop (order separately) (L/STOP); Ground Joint Control Stop (GJ). Sloan model number: ROYAL 997-1.5-L/STOP-RB.
Features
- 1.5 gpf, Rough Brass Finish, Fixture Connection Top Spud, Single Flush, Less Control Stop, 2"-10.75" L Dimension
- Various types of push-button flush actuators, which can be remotely positioned
- Flush volumes start as low as 1.0 gpf/3.8 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open actuator, Vandal-resistant stop cap to facilitate security
- Made from rough brass
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 1.5 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
- What control stop ships with this valve?
- None (Order Separately), per Sloan's own spec for this model.
Specifications
-
Type: Flushometer
-
Body Material: Semi-Red Brass
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Manual
-
Control Stop: None (Order Separately)
-
MPN: ROYAL 997-1.5-L/STOP-RB
-
Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
-
Fixture Served: Urinal
-
Body Style: Concealed
-
Spud Connection: Top Spud
-
Rough-In (in): 13.5"
-
L Dimension (in): 2"-10-3/4"
-
Volume per Flush (gal): 1.5
-
Dual Flush: No
-
Finish: Unfinished (Rough Brass)
-
Vandal Resistant: Yes
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
