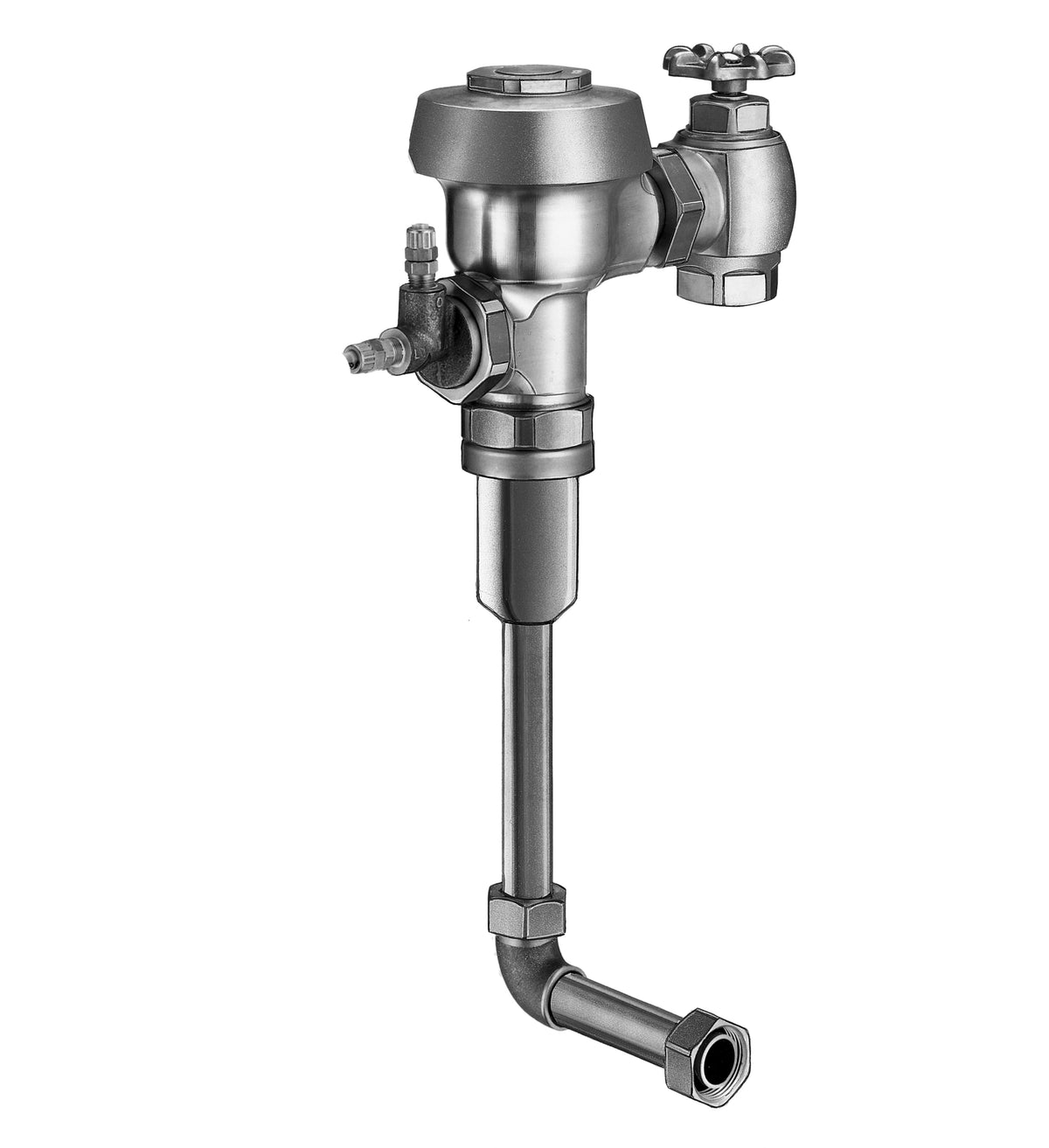

Sloan Royal 995-3.5 Concealed Manual Flushometer, Rear Spud, Rough Brass, 2"-10-3/4" LDIM, Ground Joint Control Stop, Less Vacuum Breaker, less Vacuum Breaker

The Sloan ROYAL 995-3.5-GJ-RB-XYV is a manual diaphragm-type flush valve for a urinal. It delivers 3.5 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Concealed urinal flushometer with multiple flush volumes, remotely positioned push-button actuators, PERMEX diaphragm, and ADA-compliant design.

Options on this configuration: 2"-10-3/4" L Dimension (LDIM); Ground Joint Control Stop (GJ); Less Vacuum Breaker (order separately) (XYV); L/VB. Sloan model number: ROYAL 995-3.5-GJ-RB-XYV. Sloan's own price-list description: ROYAL 995 2-10 3/4 LDIM GJ L/VB.

Features

• 3.5 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, Ground Joint Control Stop, 2"-10.75" L Dimension, Less Vacuum Breaker
• Various types of push-button flush actuators, which can be remotely positioned
• Flush volumes start as low as 1.0 gpf/3.8 Lpf
• Water conservation is aided by the ADA-compliant, non-hold-open actuator, Vandal-resistant stop cap to facilitate security
• Made from rough brass
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 3.5 gallons per flush, a rear spud connection.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

What control stop ships with this valve?

Ground Joint, per Sloan's own spec for this model.

Specifications

• Type: Flushometer
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• Control Stop: Ground Joint
• MPN: ROYAL 995-3.5-GJ-RB-XYV
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Concealed
• Spud Connection: Rear Spud
• Rough-In (in): 13.5"
• L Dimension (in): 2"-10-3/4"
• Volume per Flush (gal): 3.5
• Dual Flush: No
• Finish: Unfinished (Rough Brass)
• Vandal Resistant: Yes
• Backflow Device: None (Order Separately)
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
