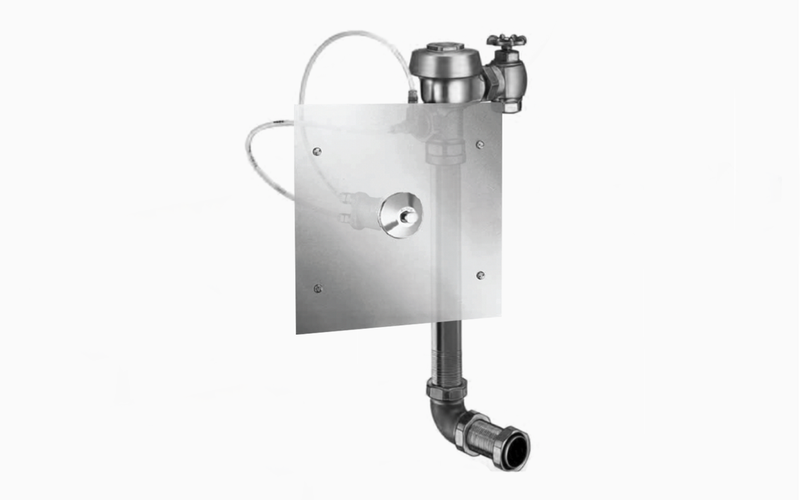

The Sloan ROYAL 952-1.6-BSS-WB1A-MBPM is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.
Concealed manual flushometer with remotely positioned push-button actuators. ADA compliant, vandal-resistant, ASSE 1037 rated.
Options on this configuration: 2"-10-3/4" L Dimension (LDIM); Metal Button Panel Mount Handle (MBPM); Wall Box Version (WB1A); W/MBPM; &. Sloan model number: ROYAL 952-1.6-BSS-WB1A-MBPM. Sloan's own price-list description: ROYAL 952-1.6 2-10 3/4LDIM W/MBPM & WB1A.
Features
- 1.6 gpf, Stainless Steel Finish, Fixture Connection Rear Spud, Single Flush, 2"-10.75" L Dimension, Metal Button Panel Mount Push Button, Standard size (wall box included) Wall Box
- Various types of push-button flush actuators, which can be remotely positioned
- Flush volumes start as low as 1.6 gpf/6.0 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open
- Vandal-resistant stop cap to facilitate security
- Made from rough brass
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible. A standard wall box is required but not included -- order it separately.
- What kind of handle does this have?
- A Metal Button Panel Mount handle, per Sloan's own spec for this model.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Outlet Size: 1-1/2"
-
Body Material: Semi-Red Brass
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Manual
-
MPN: ROYAL 952-1.6-BSS-WB1A-MBPM
-
Certifications: ADA, Buy American Act, BABA, IAPMO, ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Concealed
-
Spud Connection: Rear Spud
-
Rough-In (in): 14.5"
-
L Dimension (in): 2"-10-3/4"
-
Volume per Flush (gal): 1.6
-
Dual Flush: No
-
Finish: Stainless Steel
-
Handle Style: Metal Button Panel Mount
-
Vandal Resistant: Yes
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
-
Wall Box Type: Standard (Order Separately)
